Input
HDMI · DVI · VGA · AV · USB

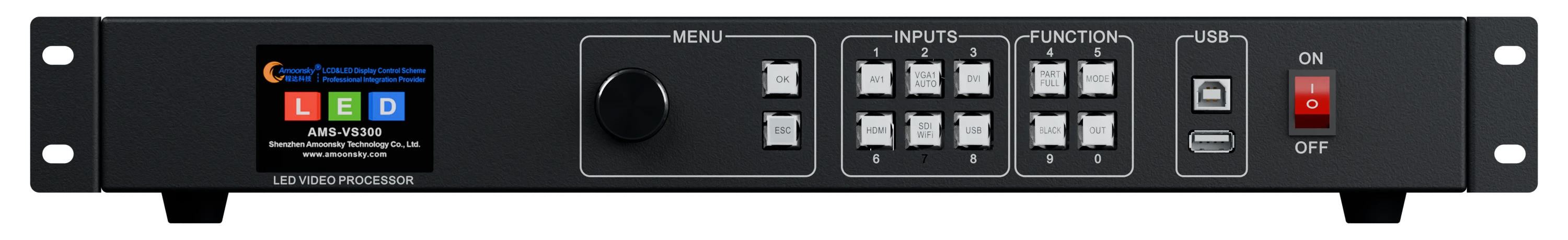

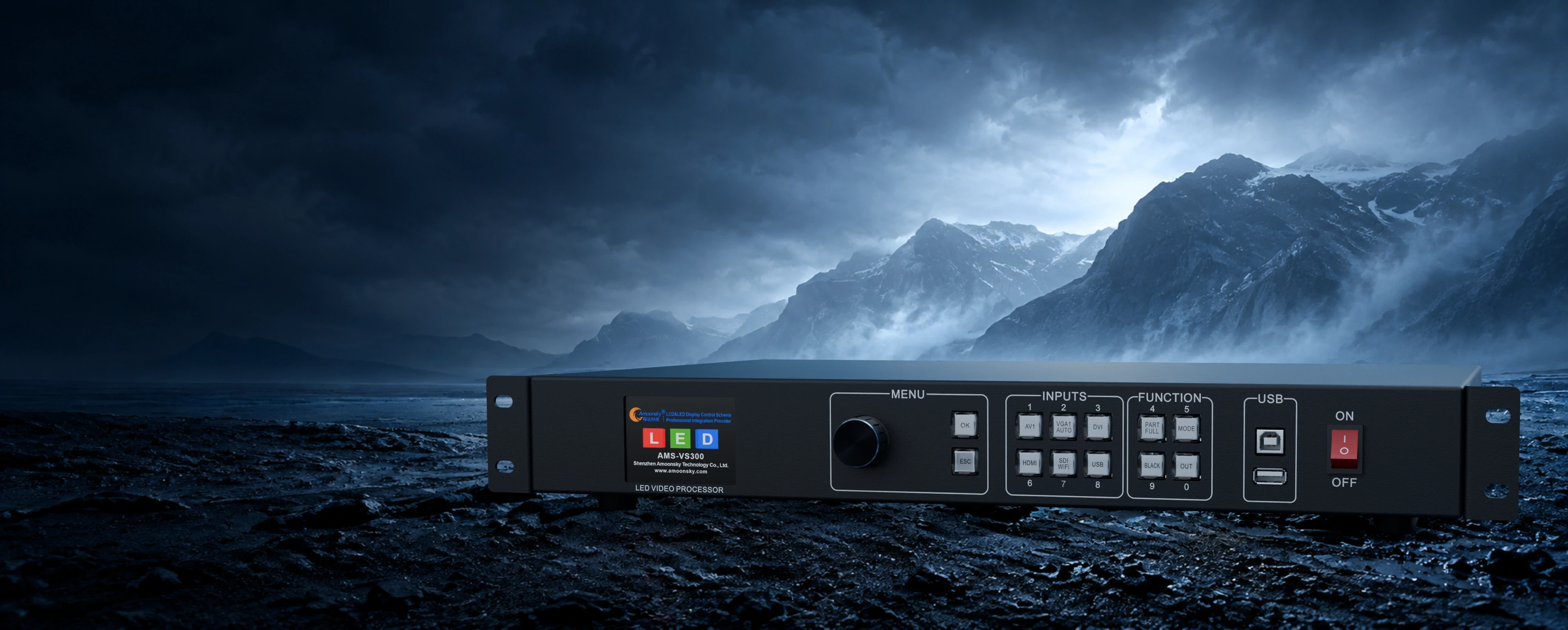

VS300 LED Display Controller
VS300 LED Display Controller
LED Display Controller
All-In-One
USB Player · Controller · Processor
Built-In LED Sending Card
Novastar · Linsn · Huidu · Amoonsky
Output
VS300: 4× RJ45
Expansion Features
SDI Input & LoopWi-Fi Mirroring

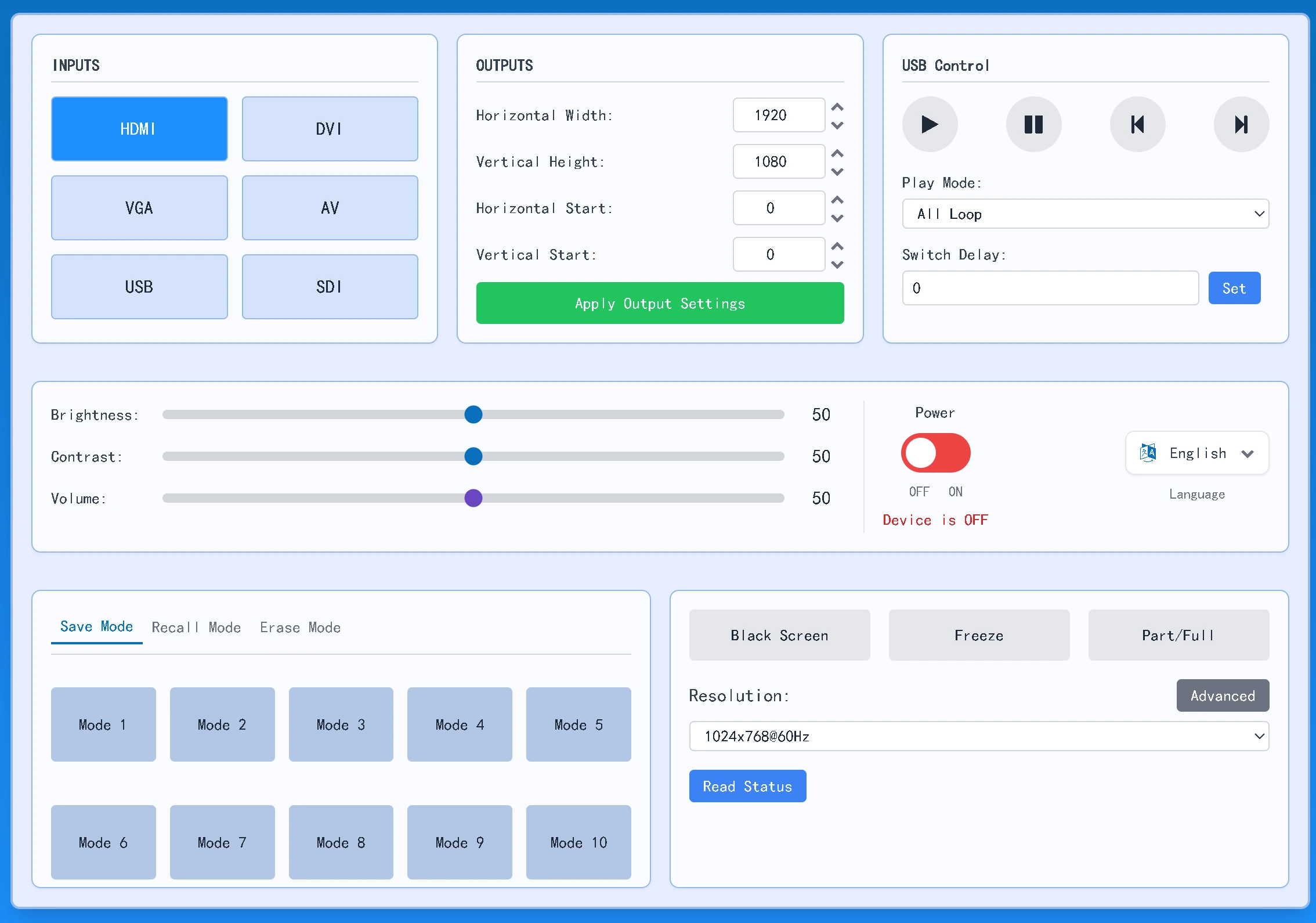

Control Methods
IR RemoteUpper Computer Control
MStar Core Engine

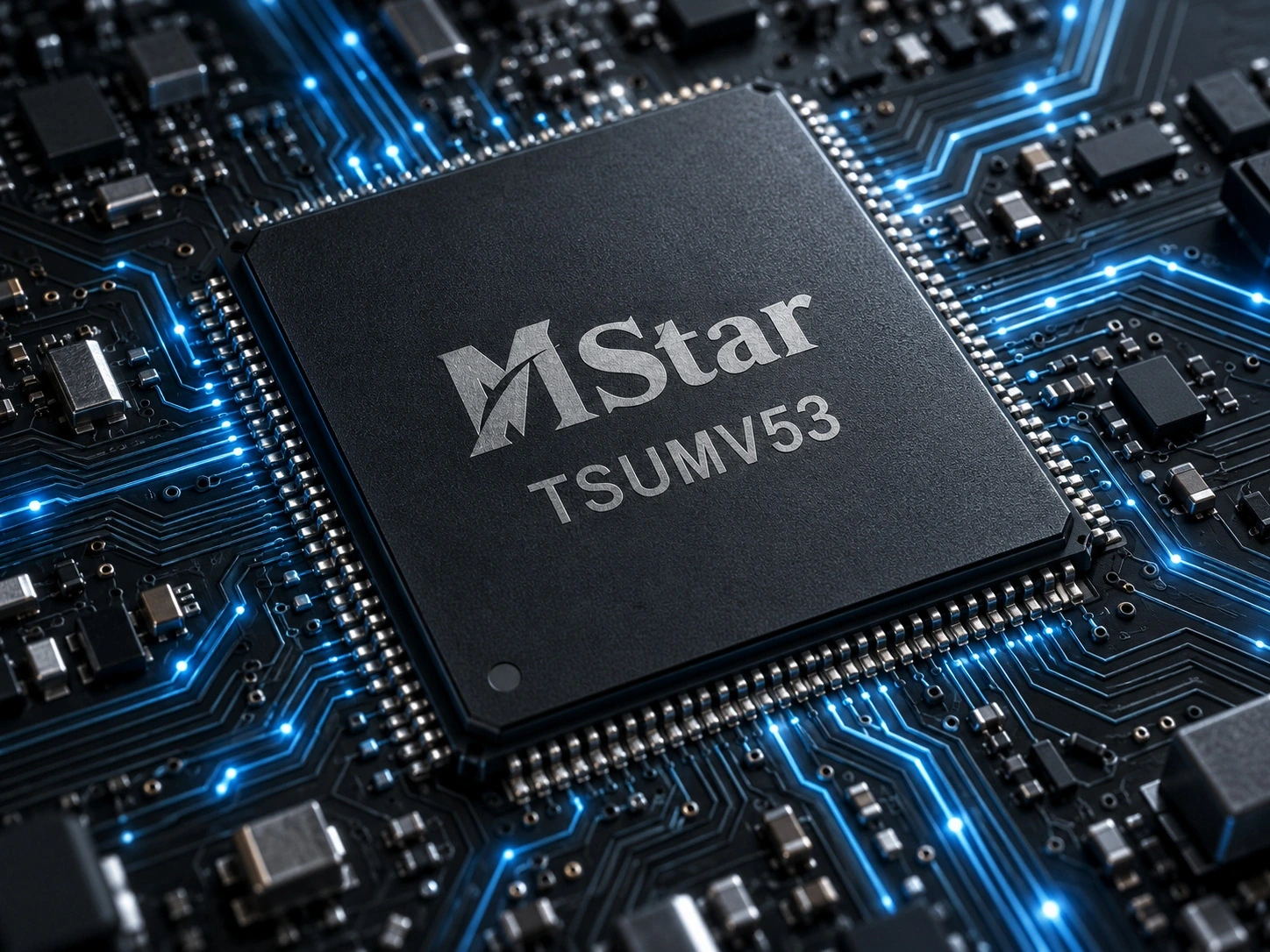

Powered by Taiwan MStar Industrial-Grade Video Processing SoC
This series is powered by the high-performance TSUMV53 chip with a pure hardware SoC architecture. Integrating the MediaTek ACE-6 broadcast-grade color engine, it delivers exceptional visual clarity for high-resolution LED walls and LED display systems.
By embedding high-speed DRAM directly inside the chip, data paths are minimized to drastically cut signal latency and boost EMI immunity—ensuring seamless signal drive across every LED panel and LED module. From high-interference stage rentals to 24/7 mission-critical command centers, this engine guarantees rock-solid stability and flawless performance for your LED screen and LED video wall.
Part | Full Display Switching
Full Screen For Impact · Part Screen For Precision
PART Selected. The Upper-Left Quarter Fills The LED Display.
Input & Control
Expansion
Optional Wi-Fi And SDI Expansion · Remote Control
Extended Wireless Projection
Instant Sharing · Dynamic Interaction
Extended SDI Input & Loop
Broadcast-Grade · 3G SDI
Extended Remote Control
2.4G RF Remote · Control Freely
Motion Compensation
Algorithm (MEMC)
Flicker & Blurring Correction
Stable Motion, Sharp Lines
Motion-adaptive interpolation removes flicker (line shuddering) and blurring of lines, ensuring clear, stable images even in fast-moving scenes.
Built-In
Sending Card

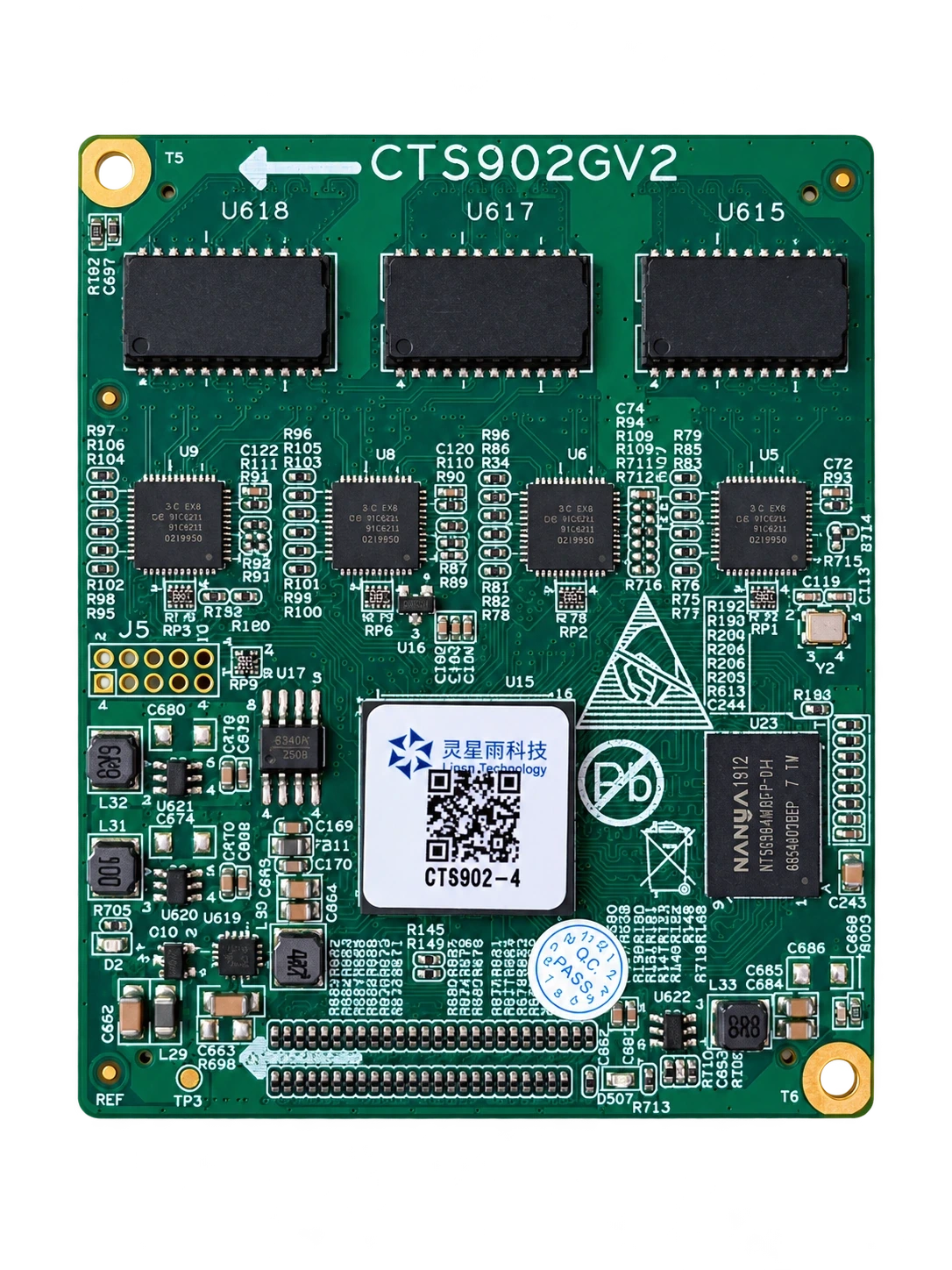

MSD600-1 · Linsn Core Board
VS300
Linsn Core Board
or MSD600-1
Select The Corresponding Receiving Card Based On Your Actual Needs, And Confirm With Our Sales Team Before Shipment.
Timer Manager
Automatic Scene Switching On Schedule
Unique Brightness
Adjustment Technology
Dim The Screen, Preserve The Detail.
Conventional Display Dimming Often Compresses The Dynamic Range And Degrades Grayscale Levels, Causing Shadow Details To Disappear And Colors To Unnaturally Shift At Lower Brightness.
Powered By A Proprietary Built-In Brightness Algorithm, The VS Series Maintains Full Grayscale Retention, Rich Image Layering, And Exact Color Fidelity Across All Brightness Levels. By Preserving True-To-Life Depth Without Sacrificing Color Accuracy, It Delivers Crisp, Natural, And Faithful Visuals Even In Low-Light Environments.
More Features
All-Channel Seamless Switching
10 Mode Preset And Recall
Partial / Full Screen Switching
Panel Key Lock
Signal Automatic Detection
One Key Black Or Freeze Screen
Audio Synchronous Output
Real-Time Storage Technology
For More Detailed Information, Please Contact Us

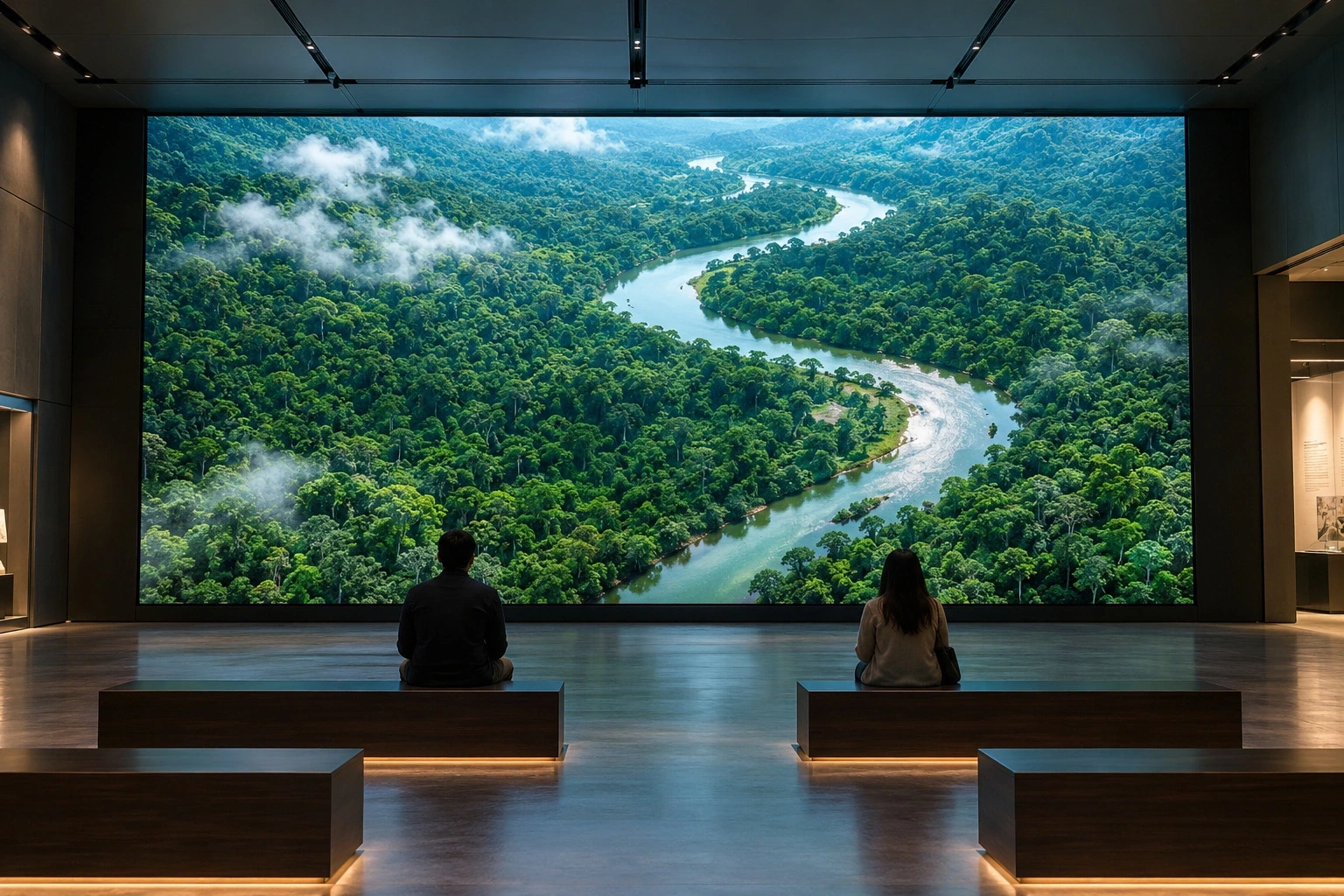

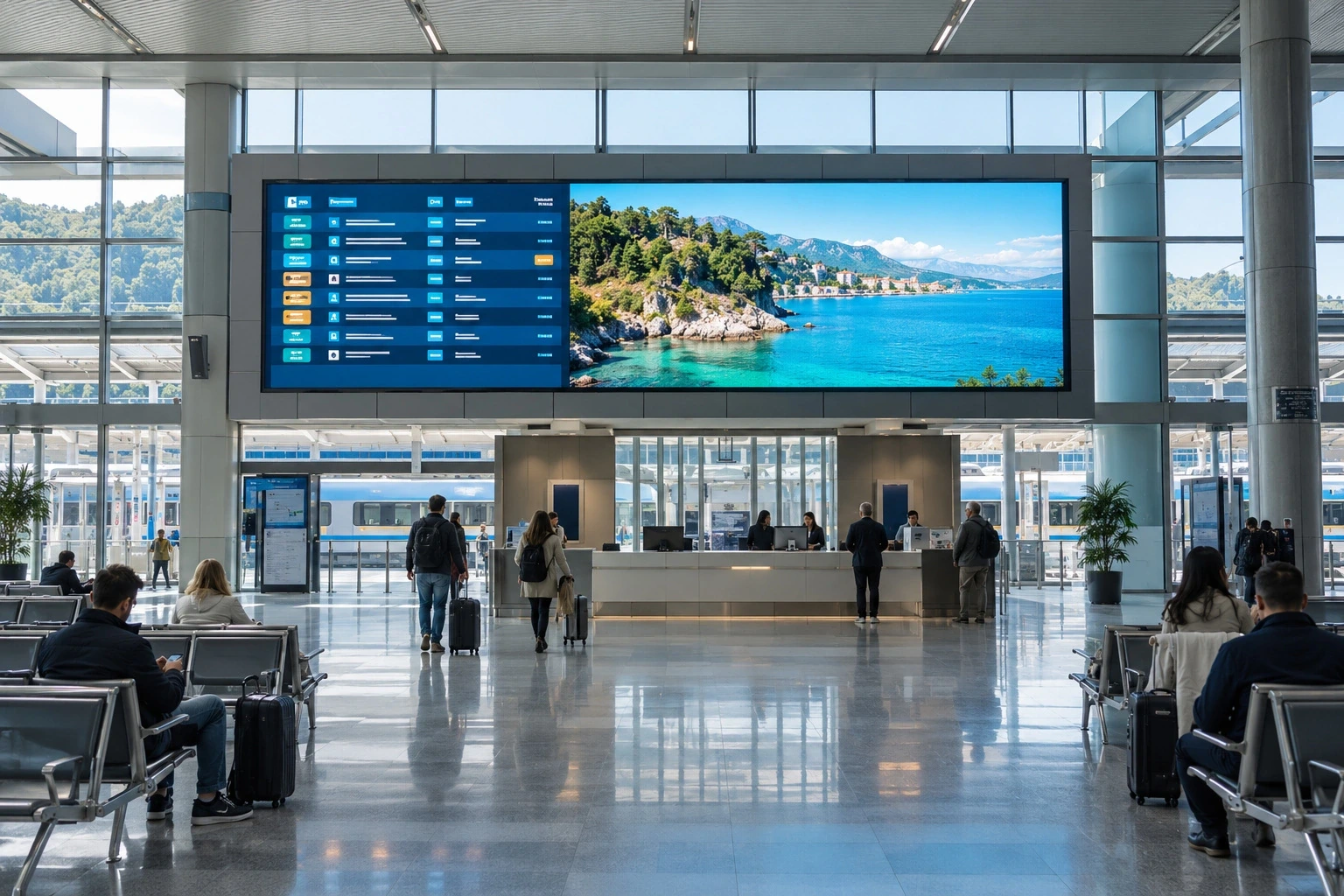

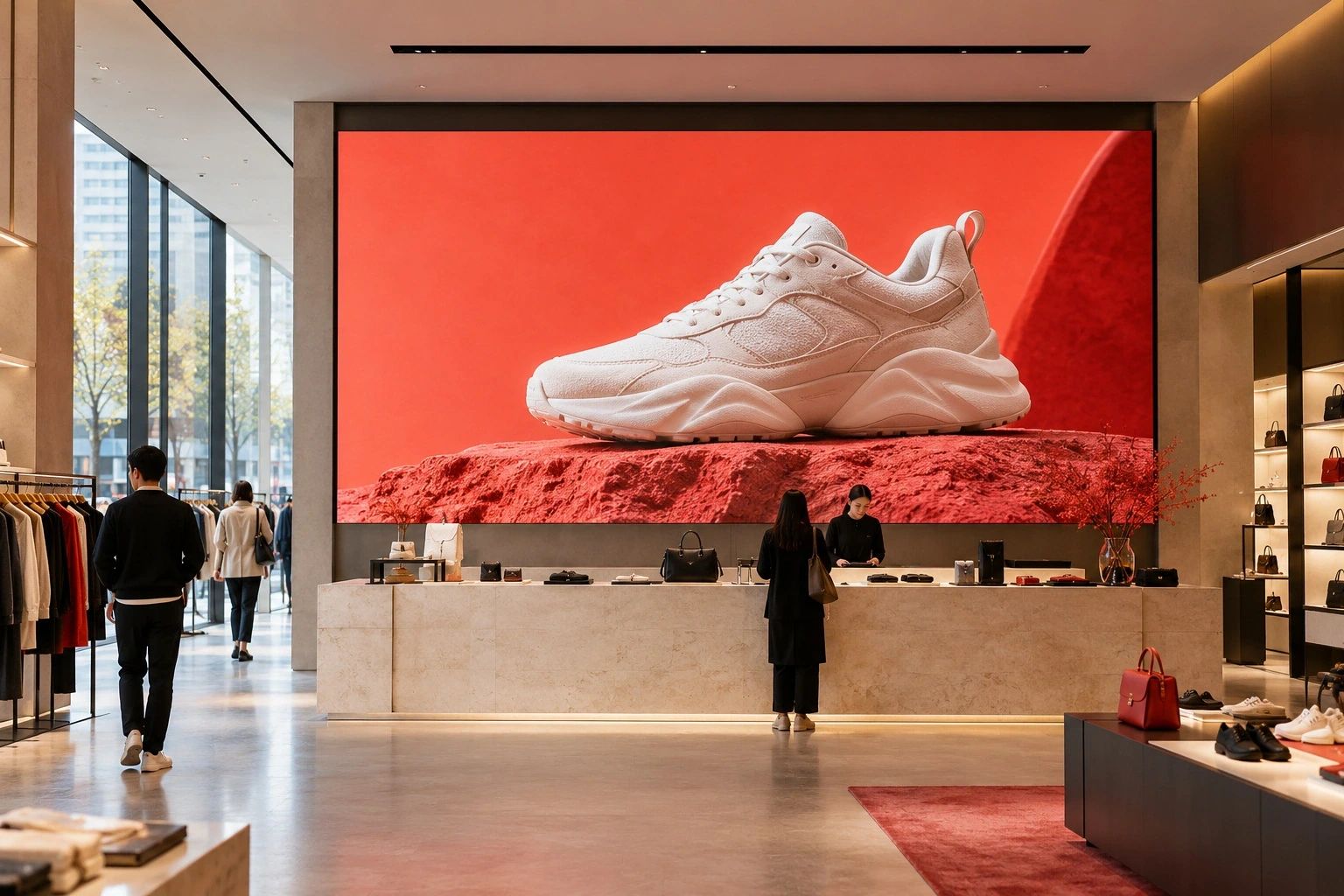

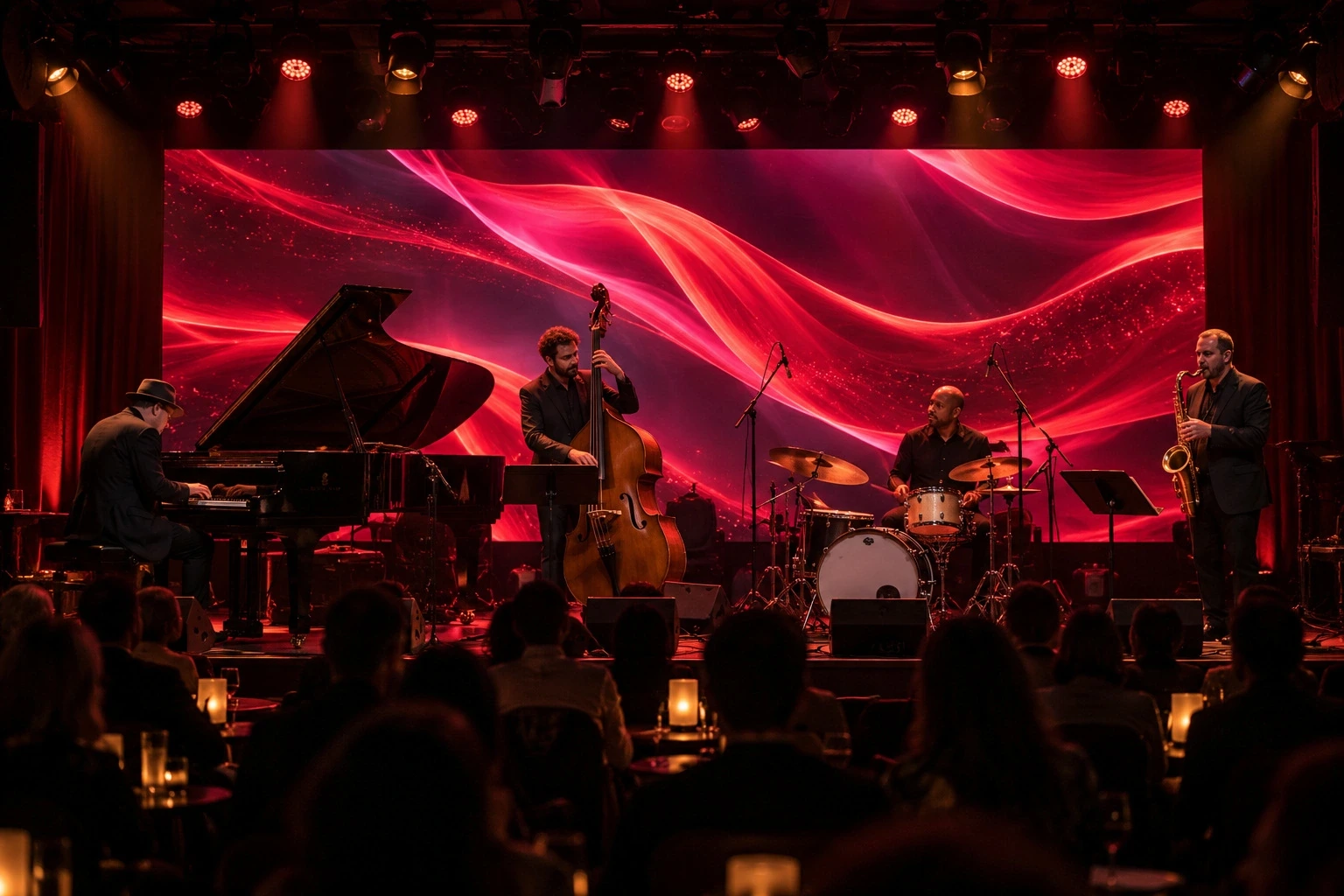

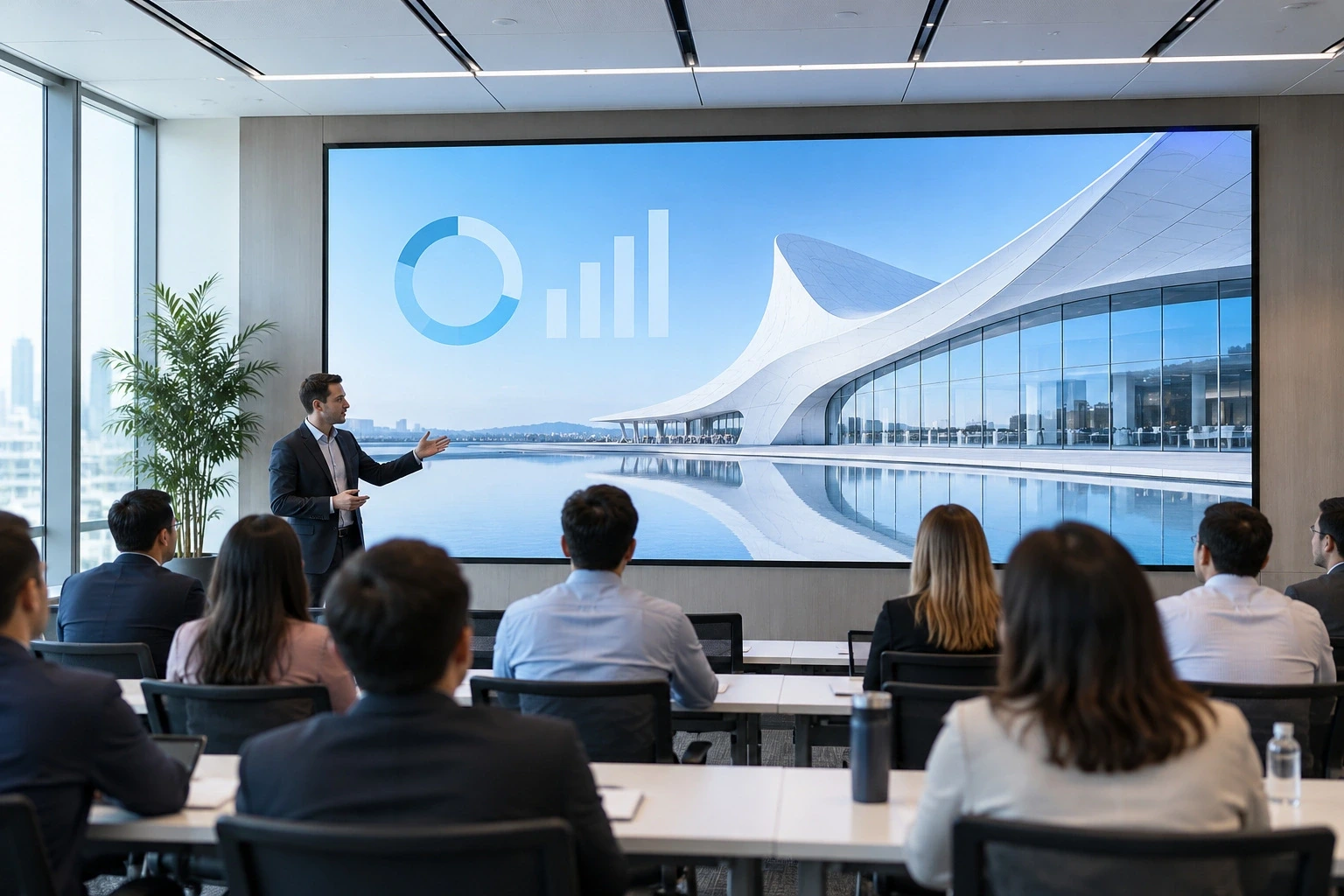

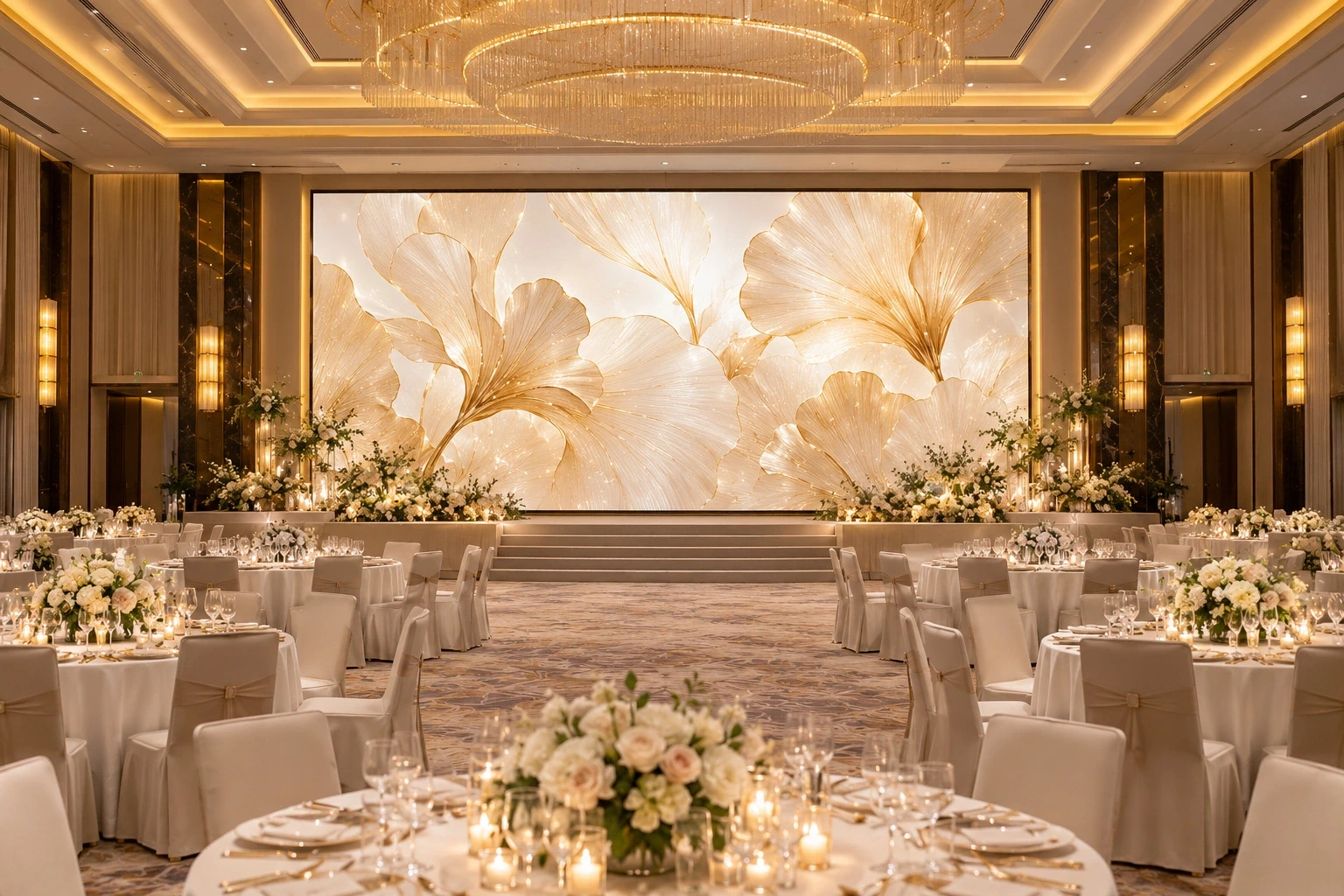

Applications
More Services
More Than A Supplier · Your Trusted Long-Term Partner
OEM
ODM
IDM
AppearanceFunctionsInterfacesBranding
Customization
OEM, ODM, And IDM Services Available. Customize Appearance, Functions, Interfaces, And Branding To Meet Your Specific Needs.
Multi-Language Support
Multi-Language Selection
24/7Technical
Response
Response
✓Selection
✓Solution Design
✓Deployment
Full Technical Support
Free Solution Design, 24/7 Technical Response, And End-To-End Support From Selection To Deployment.
| Port Specifications | |
| Video Inputs | 1 × AV, 1 × VGA, 1 × DVI, 1 × HDMI And 1 × USB For Picture And Video Playback. |
| Video Output | 1 × DVI-I (24+5) Program Output. |
| LED Network Outputs | 4 × RJ45 Gigabit Ethernet Ports; Up To 650,000 Pixels Per Port; Ethernet Port Redundancy Supported. |
| Control Ports | RS232 For Computer Control; USB-B For Sending Card Parameter Settings. |
| Optional Expansion | Wi‑Fi Wireless Projection Or SDI Input And Loop, Depending On The Ordered Model. |
| Performance | |
| Switching And Audio | All‑Channel Seamless Switching With Synchronized Audio Output. |
| Presets And Display Controls | 10 User Presets; Partial / Full Screen Switching; Black Screen / Freeze; Panel Key Lock; Automatic Parameter Storage In EEPROM. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100–240V AC, 50–60Hz. |
| Operating Environment | Temperature: 0°C To +50°C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Storage Environment | Temperature: -40°C To +70°C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Warranty | 1 Year; Rated Voltage Tolerance: ±10%. |
| Physical Specifications | |
| Model | AMS‑VS300 |
| Machine Size And Weight | 485 × 320 × 69 mm (L × W × H); Product Weight: 4.0 kg. |
| Packing Size And Weight | 515 × 375 × 100 mm (L × W × H); Package Weight: 5.0 kg. |
