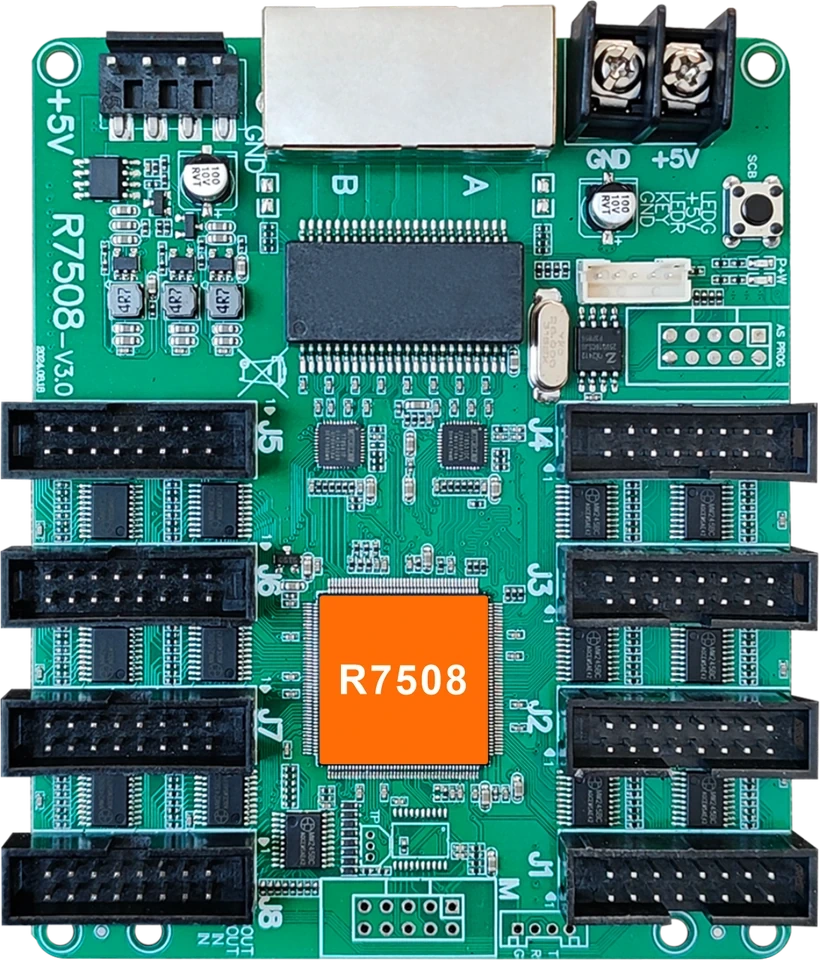

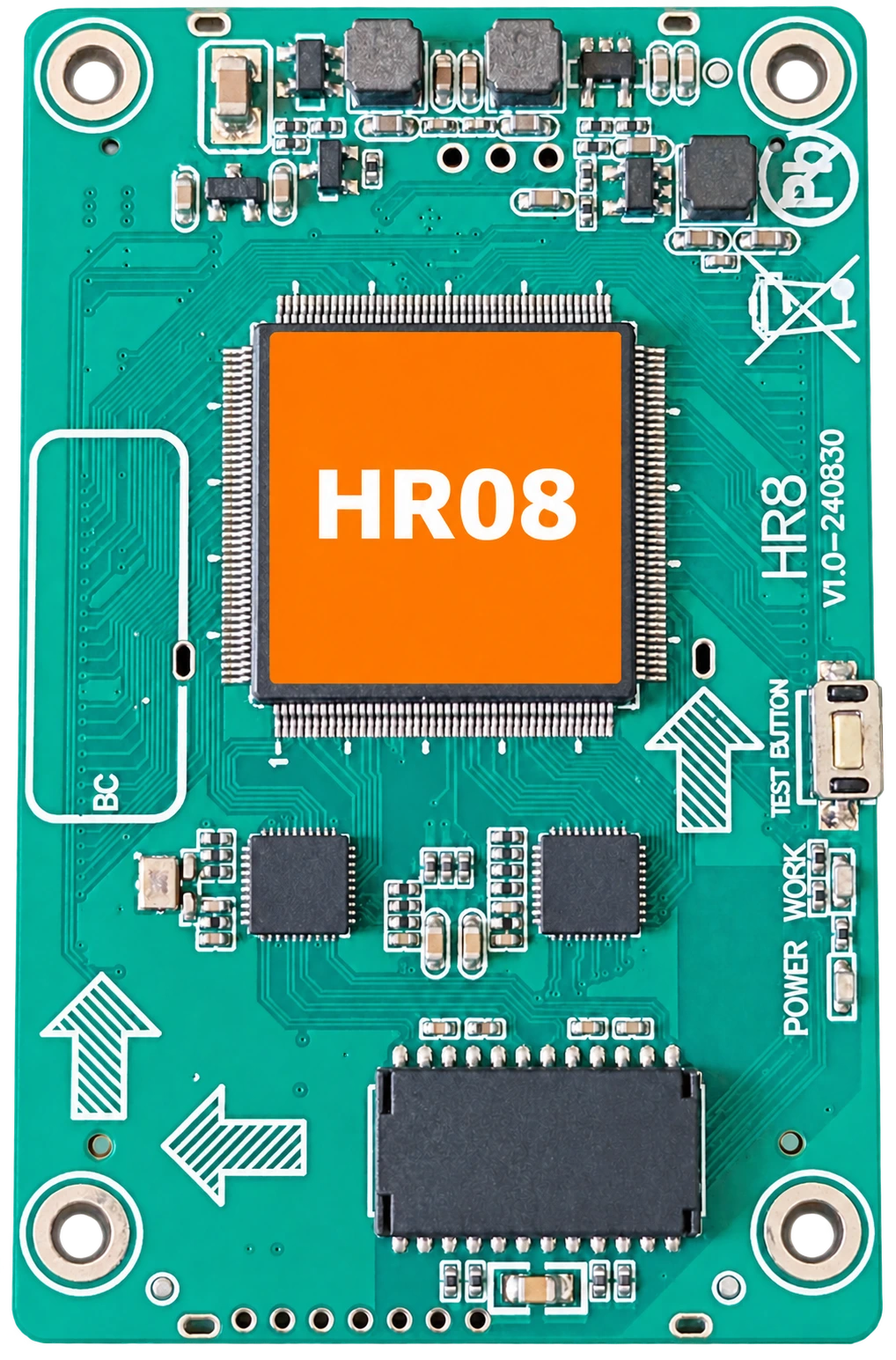

HR08/R7508/R7512/R7516

Detail

Parameter

Download

Receiving Card · Receiver

Makes LED Display Screen Setup More Simple

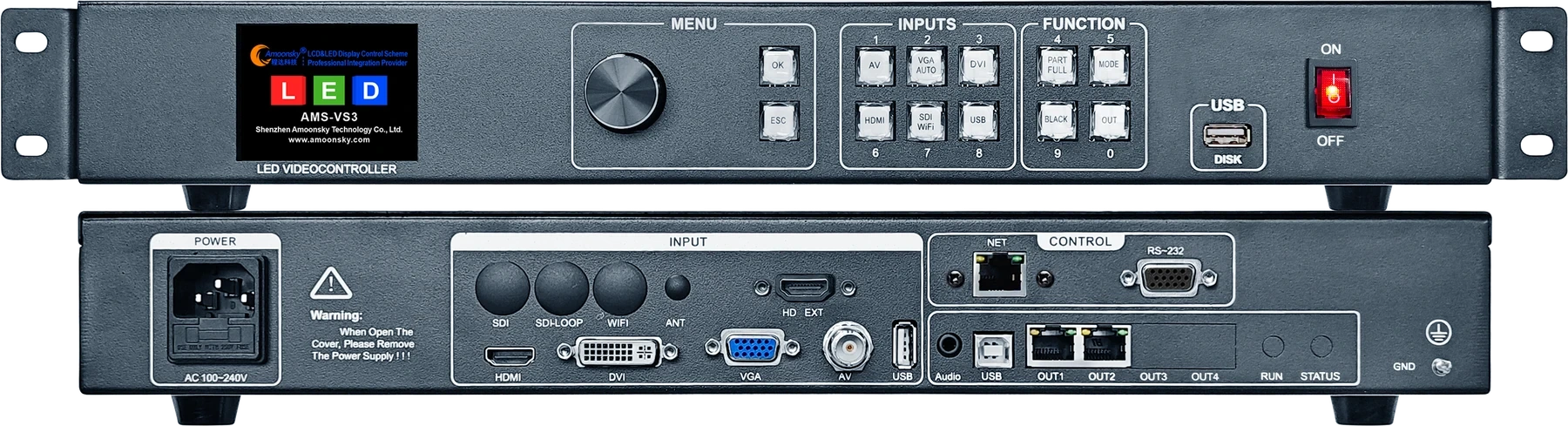

rc-06-vs3 — LED Display Controller
VS1 · VS3 · VS4

Serve Customer · Achieve Value

Find Your IC

Driver List · IC Codes And Configuration Options

Normal

MBI5024

MBI5153

ICN2026

ICND2152

DP3153

LS9806

FM6047

SM16016

SUM2016

JXI5020

MBI5026

MBI5155

ICN2027

ICND2165

DP3246

LS9812

FM6047_D

SM16017

SUM20161

MBI5020

MBI5027

MBI5251

ICN2028

ICND3065

DP3246_D

LS9832

FM6124

SM16106

SUM20167

AB1002

MBI5028

MBI5264

ICN2029

ICN2038

DP3263

LS9901

FM6126

SM16126

SUM2017

CNS7263

MBI5029

MBI5268

ICN2037

ICN2038S

DP3264

LS9903

FM6127

SM16127

SUM2017T

CS2017

MBI5034

MBI5324

ICN2153

ICN2045

DP3364S

LS9904

FM6153

SM16159

SUM2017TD

CS2017_N

MBI5035

MBI5353

ICN2163

ICN2050

DP3365S

LS9917

FM6182

SM16169

SUM2028

CS2033

MBI5120

MBI5368

ICND1063

ICN2053

DP3367S

LS9918

FM6253

SM16169SH

SUM2030

HBS2910

MBI5120 N

MBIA043

ICND1065

ICN2055

DP3368

LS9919

FM6363

SM16206

SUM2030T

HX8863

MBI5122

MBI5037

ICND1065S

ICN2059

DP3265

LS9920

FM6373

SM16207S

SUM2032

RT5965

MBI5122_N

MBI5038

ICND1068

ICN2065

MY9161

LS9926

FM6373C

SM16227

SUM2033

RT5966

MBI5124

MBI5039

ICND2046

ICN2069

MY9163

LS9928

FM6565E

SM16237

SUM2035

CS8325

MBI5124_N

MBI5051

ICND2047

ICN2088

MY9168

LS9929

SM16369

SM16237D

SUM2130

CS8335

CFD135

CFD455

ICND2055S

LS9935

MY9866

LS9929C

SM16380

SM16259

SUM2131

CS8365

CFD135_N

CFD455C

ICND2110

LS9935B

MY9868

LS9930

SM16388

SM16289

SUM2135

CFD325A

CFD855A

LS9961

LS9937

LS9936

LS9933

LS9931

SM16389

SM16359

SUM6086

A Listed Code Does Not Confirm Support On Every Receiving Card. Model And Firmware Compatibility Must Be Confirmed

Compatible With Mainstream Driver And Decoder ICs

Strong Compatibility · Continuous Upgrades

Supported Mainstream ICs Work Out Of The Box With Factory Firmware
No Upgrade Required

Special IC Support Is Available Through Online Firmware Upgrades

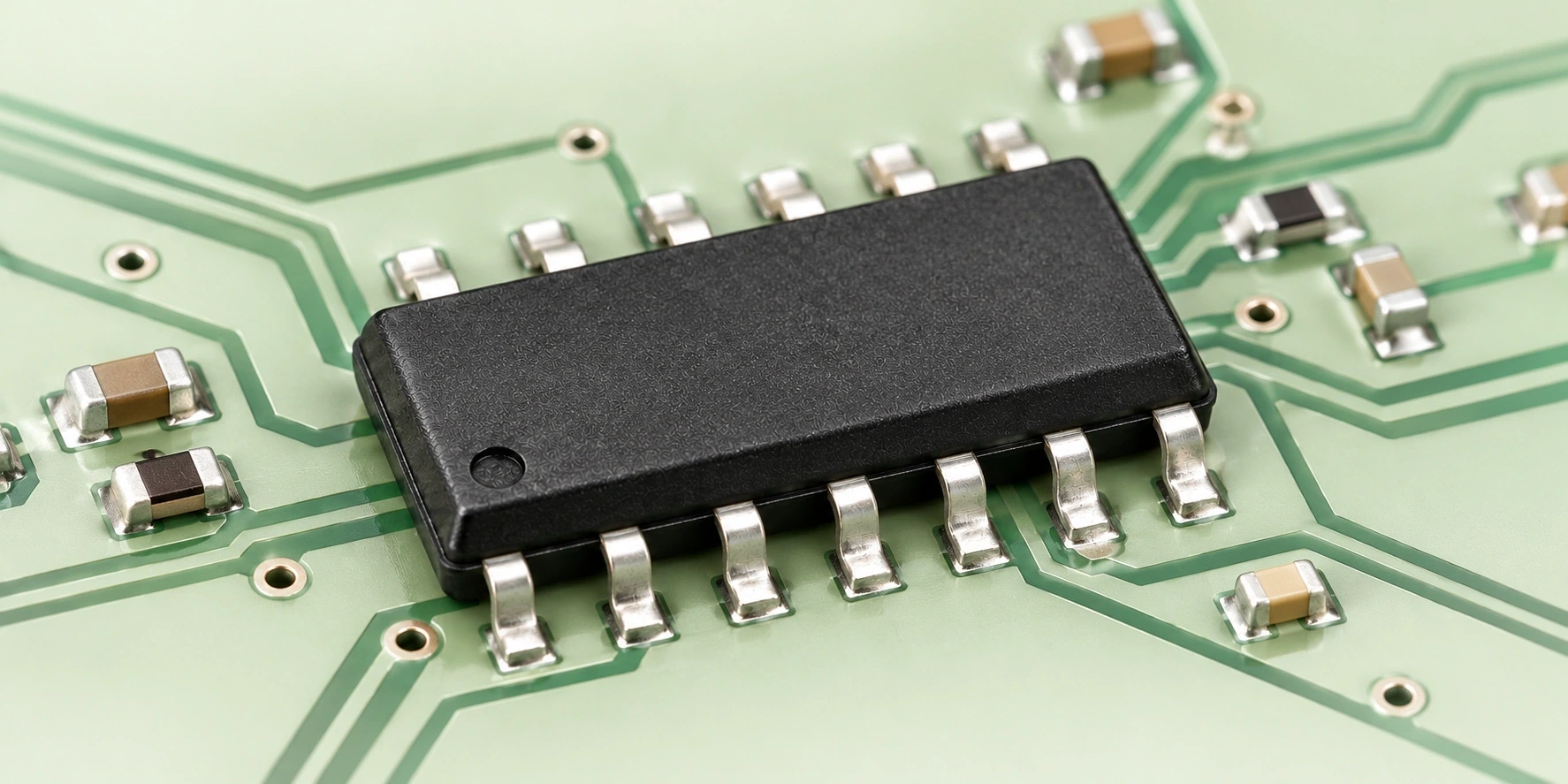

Surface-mounted integrated circuit soldered onto a printed circuit board

ParameterReadback

Directly Read The Configured Parameters From The Receiving Card

No Need Once Again Intelligent Settings

Eliminating Repetitive Setup Steps And Boosting Operational Efficiency

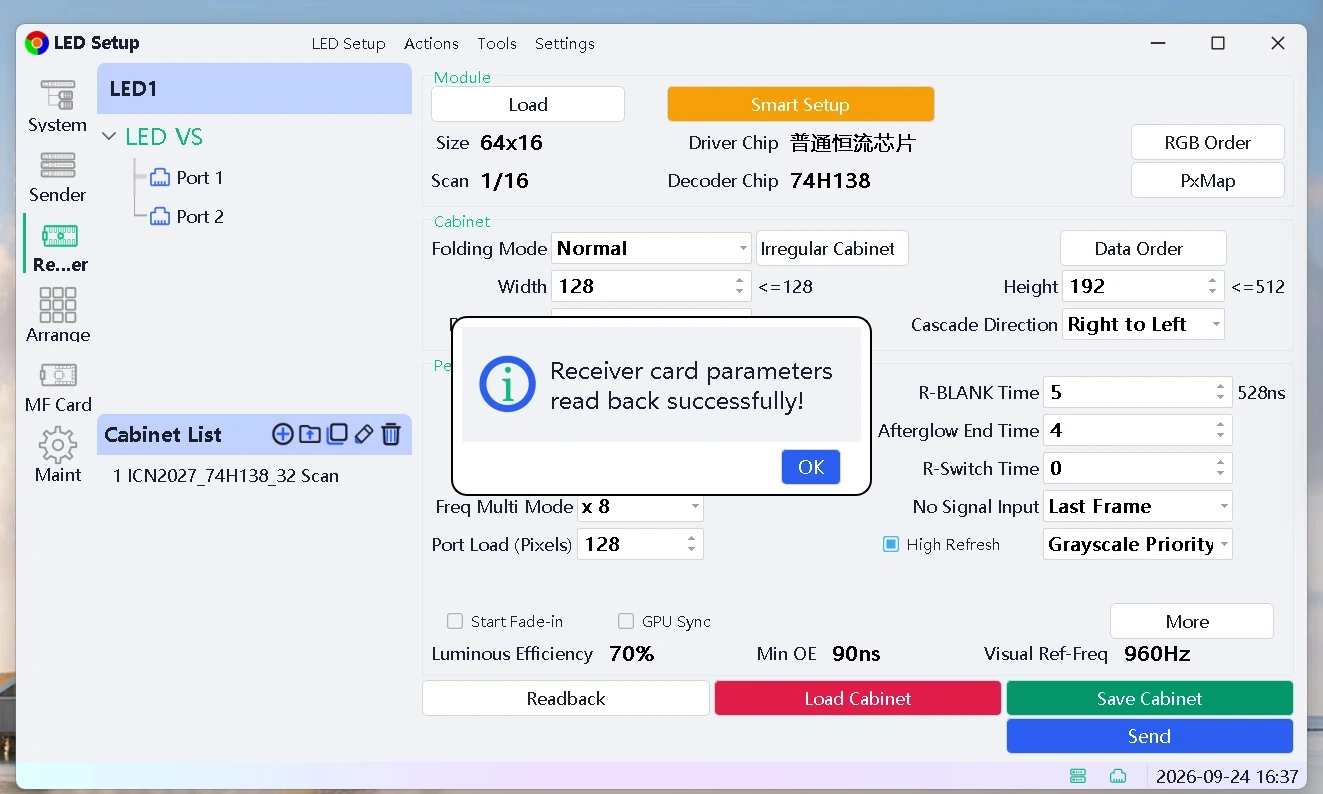

LED Setup interface with the actual receiving card parameter readback success message

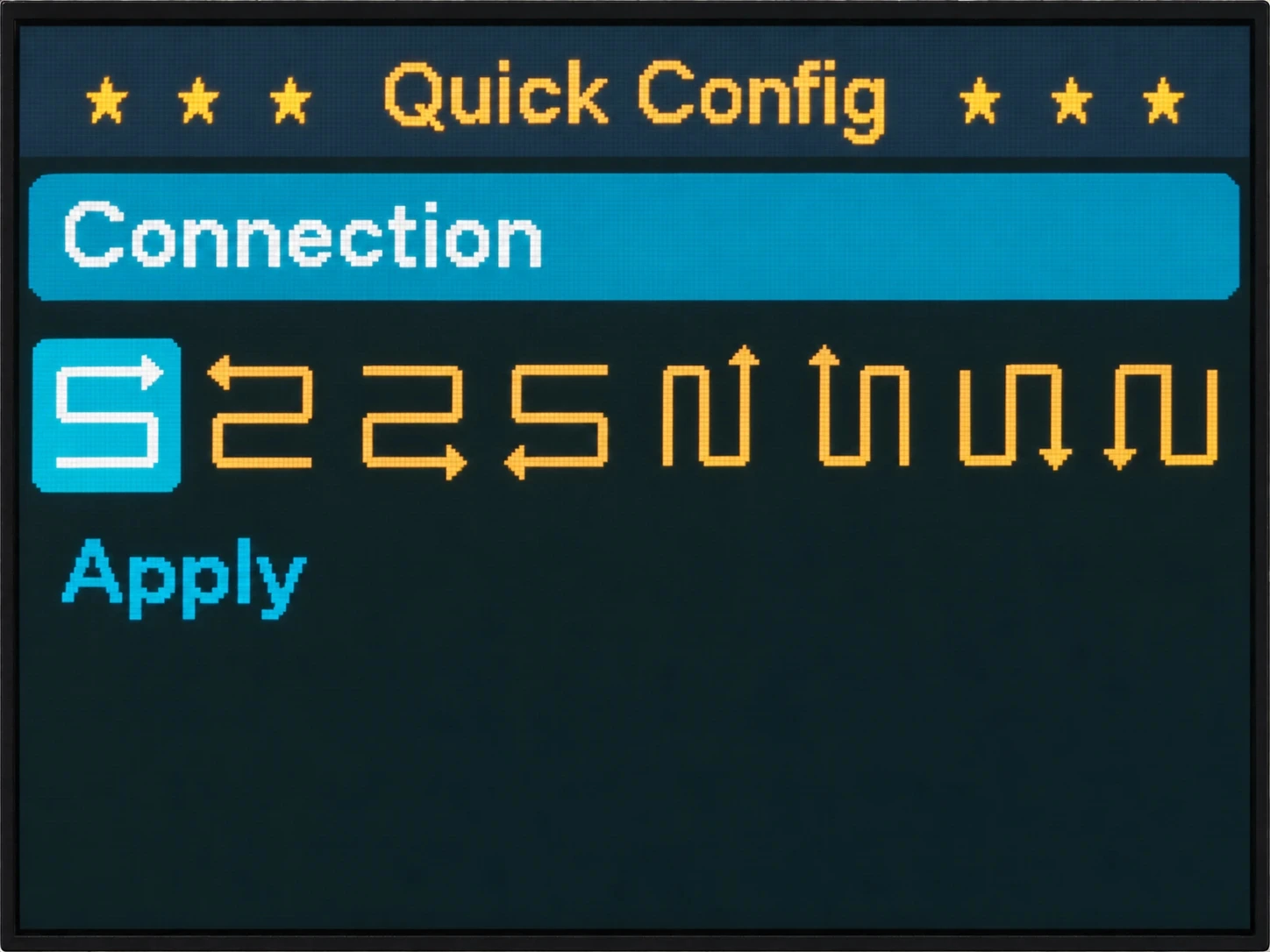

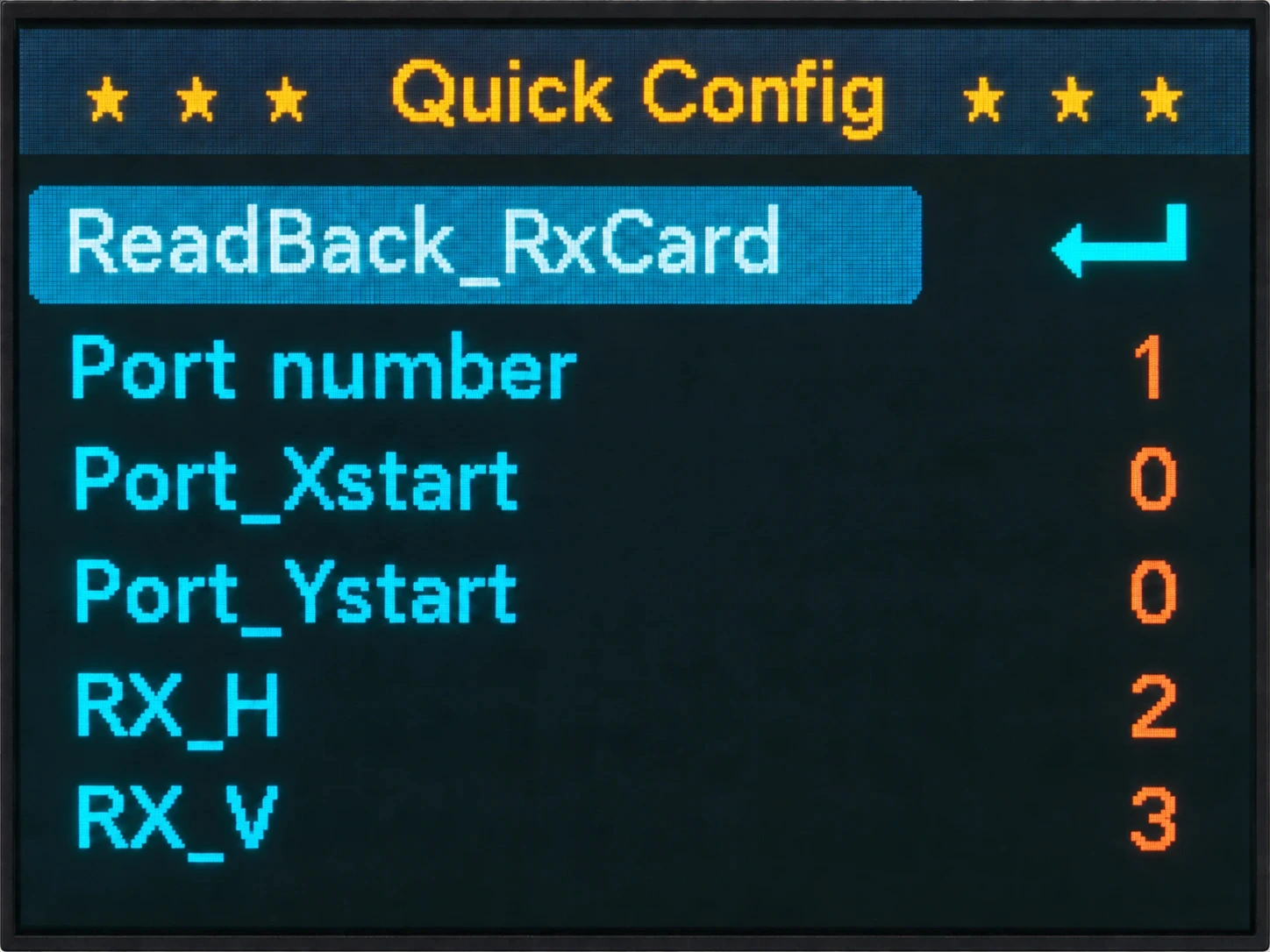

Quick Config

Directly Configure The LED Display Cabinets Connection Through The Video Controller Menu With 8 Wiring Modes

No PC Is Required After Initial Setup

Receiving Card Layout

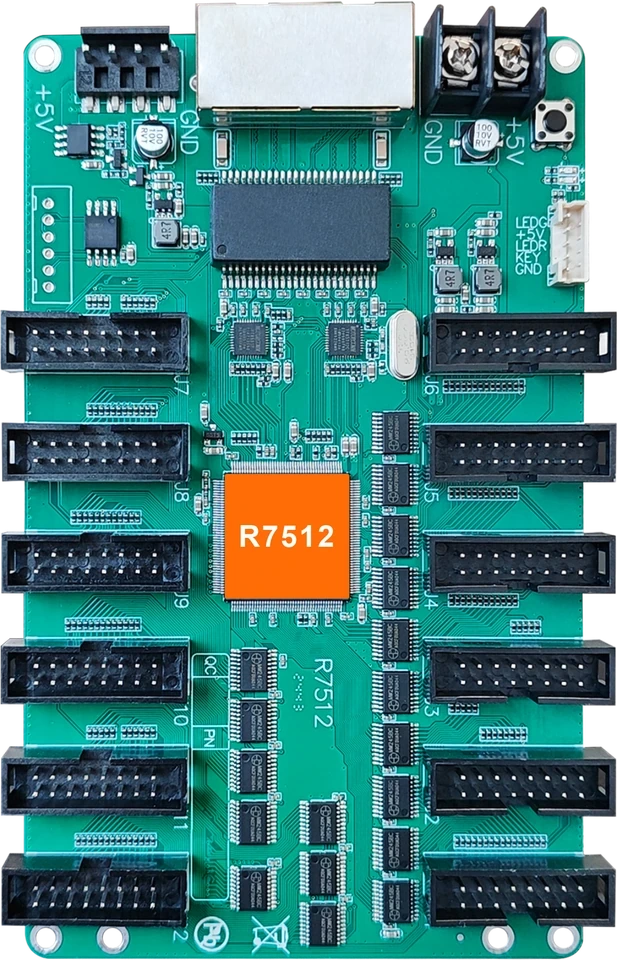

R7512 receiving card, port 01, position 001

Mapping

Display Receiving Card Positions And Wiring Routes Directly On Screen For Effortless Cabinet Cabling And Fast Troubleshooting Of Faulty LED Cabinets

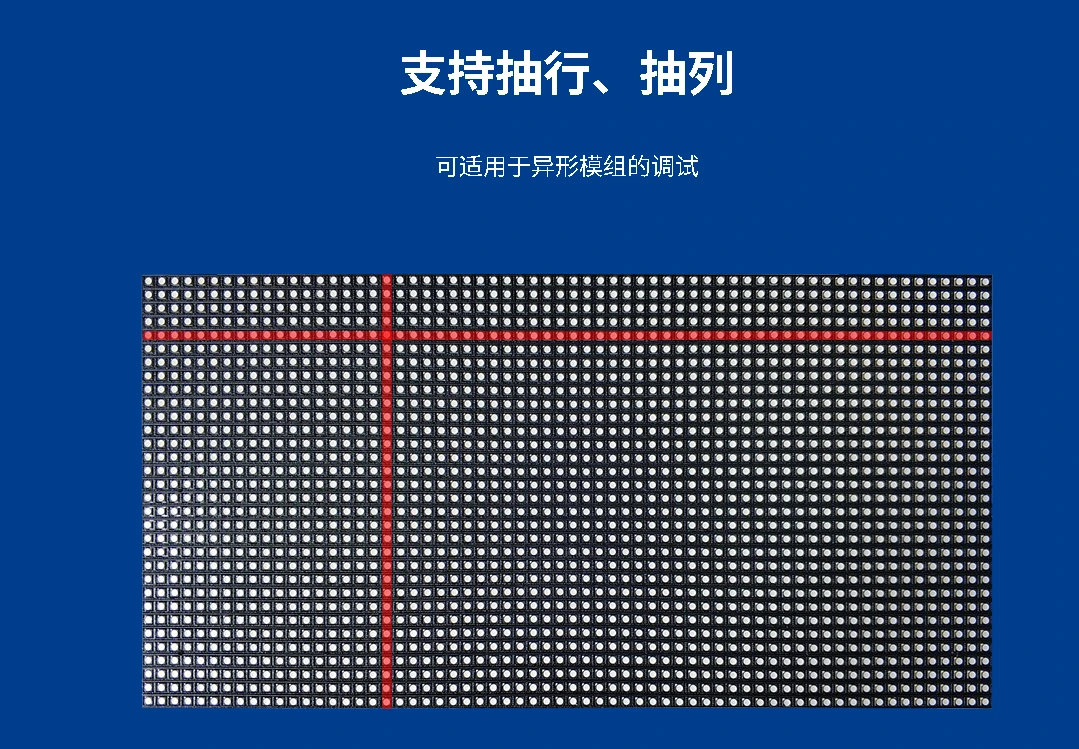

LED Module Control

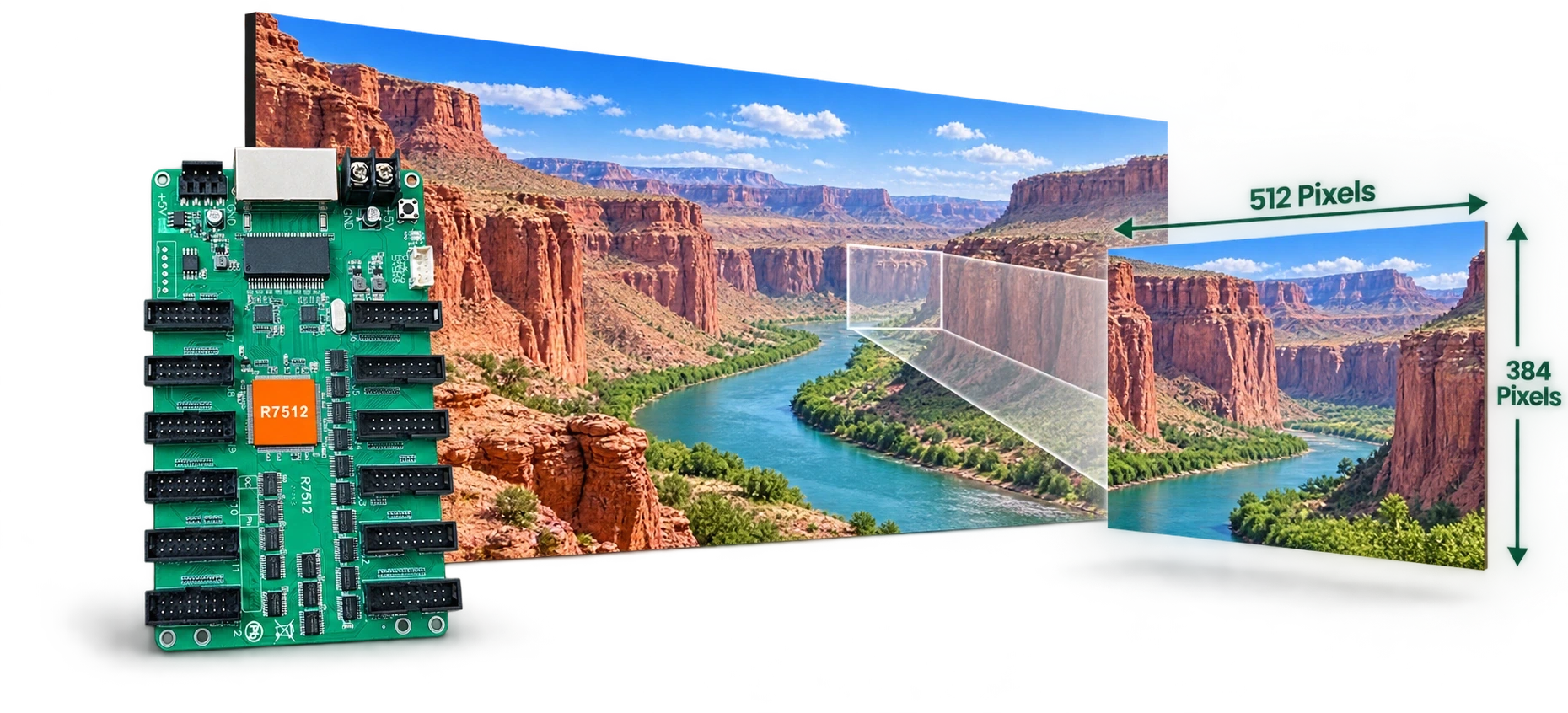

Drive Large-Format Cabinets With Fewer Receiving Cards Simplify System Architecture And Reduce Overall Costs

Ultra-Large Loading Capacity

Static To 1/64 Scan · 16 To 32 Parallel RGB Data Groups

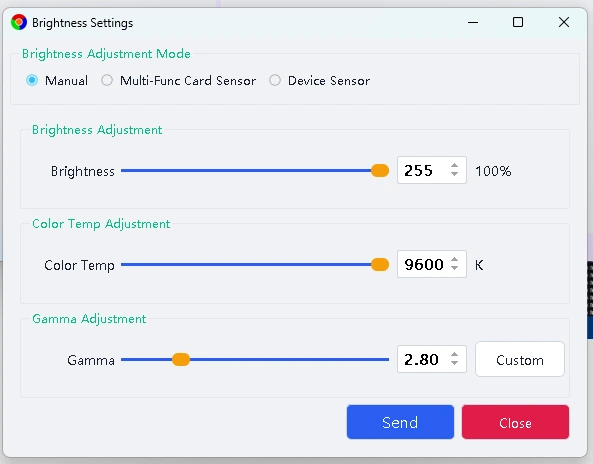

Gamma Adjustment

Precise Calibration · True-To-Life Colors

Due To The Inherent Physical Characteristics Of LEDs, Low Grayscale Levels Often Suffer From Uneven Brightness, Banding, And Color Shift, While RGB Imbalance Can Cause White Balance Drift

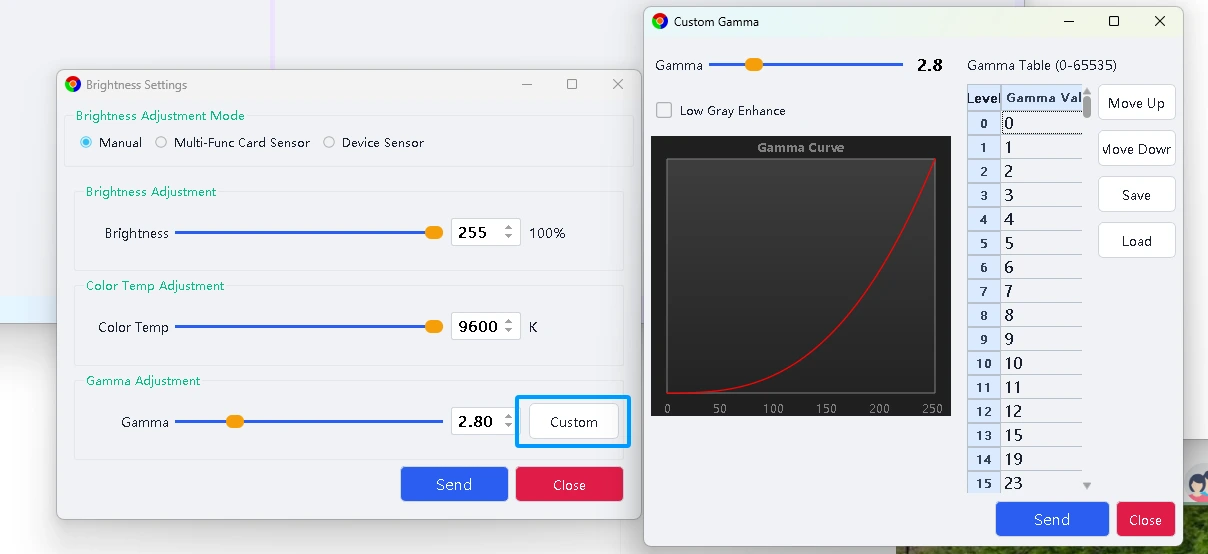

The Control System Supports Independent RGB Gamma Adjustment. It Effectively Resolves Low-Grayscale Unevenness And White Balance Drift -- Delivering Consistent Layering, Pure Colors, And Faithful Image Reproduction At Every Brightness Level

Before Gamma AdjustmentAfter Gamma Adjustment

Drag To Compare

Smooth Gradients · Perfect Display

High Refresh · High Brightness · Uniform Grayscale

Matched gray silk folds: visible tonal bands on the left and smooth shading on the right — Color BandingGrayscale Refinement

Traditional Display Engines Sacrifice Low-Grayscale Quality To Push For Higher Refresh Rates Or Peak Brightness, Resulting In Color Banding, Grayscale Clipping, And Uneven Low-Light Details

Our LED Control System Breaks This Trade-Off By Integrating A High-Grayscale Uniformity Algorithm With A Smooth Low-To-High Brightness Expansion Algorithm, Balancing High Refresh, High Brightness, And Grayscale Precision At The Driver Level.

Using Professional-Grade Colorimeters, The Driver IC Output Is Intelligently Analyzed And Precisely Calibrated To Eliminate Banding And Grayscale Skipping, Delivering Silky-Smooth, Natural Gradients And Pristine Visual Textures Across The Entire Dynamic Range

Brightness Adjustment

Auto Sensing · Scheduled Dimming · Energy Saving

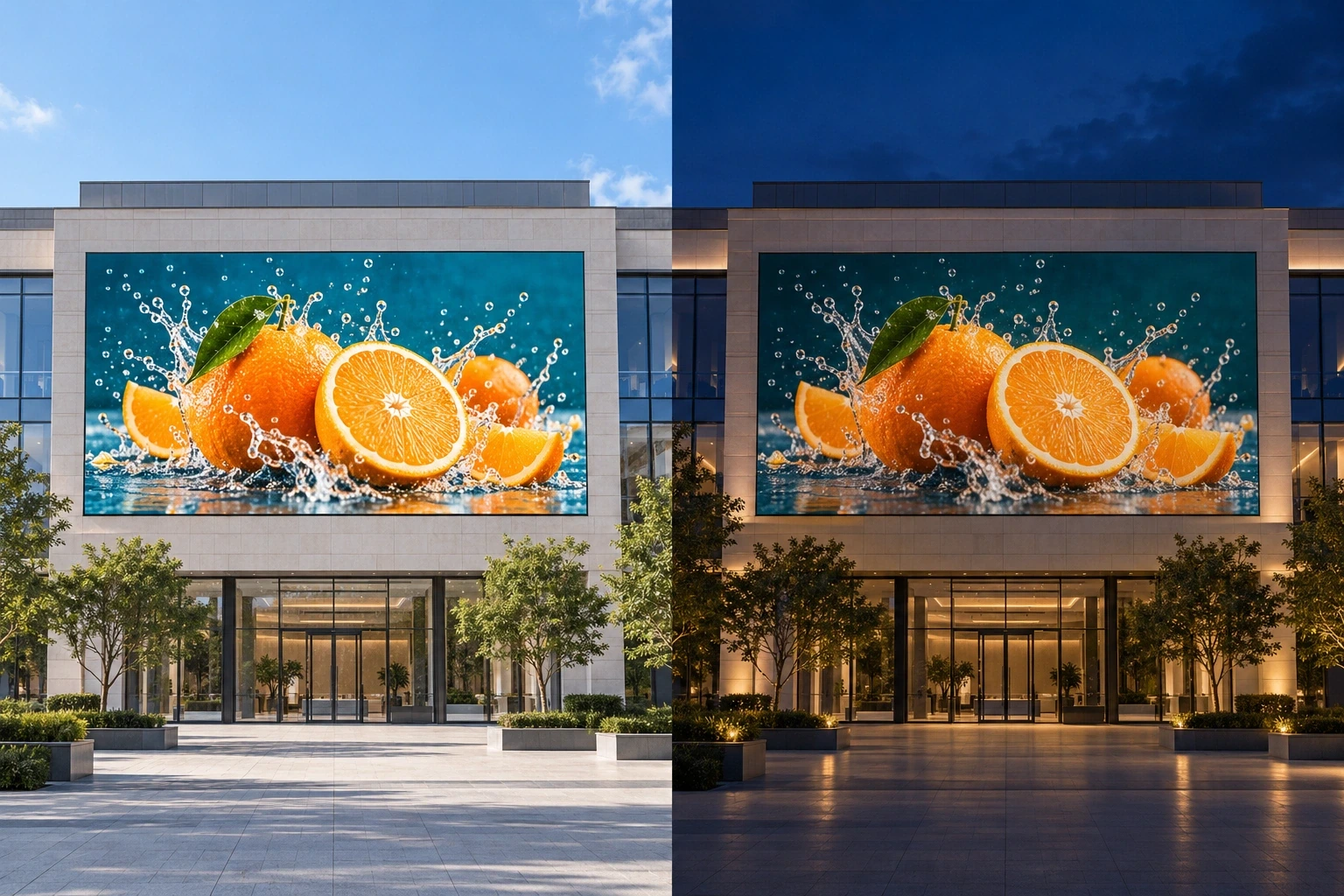

Ambient Light Adaptive Brightness:

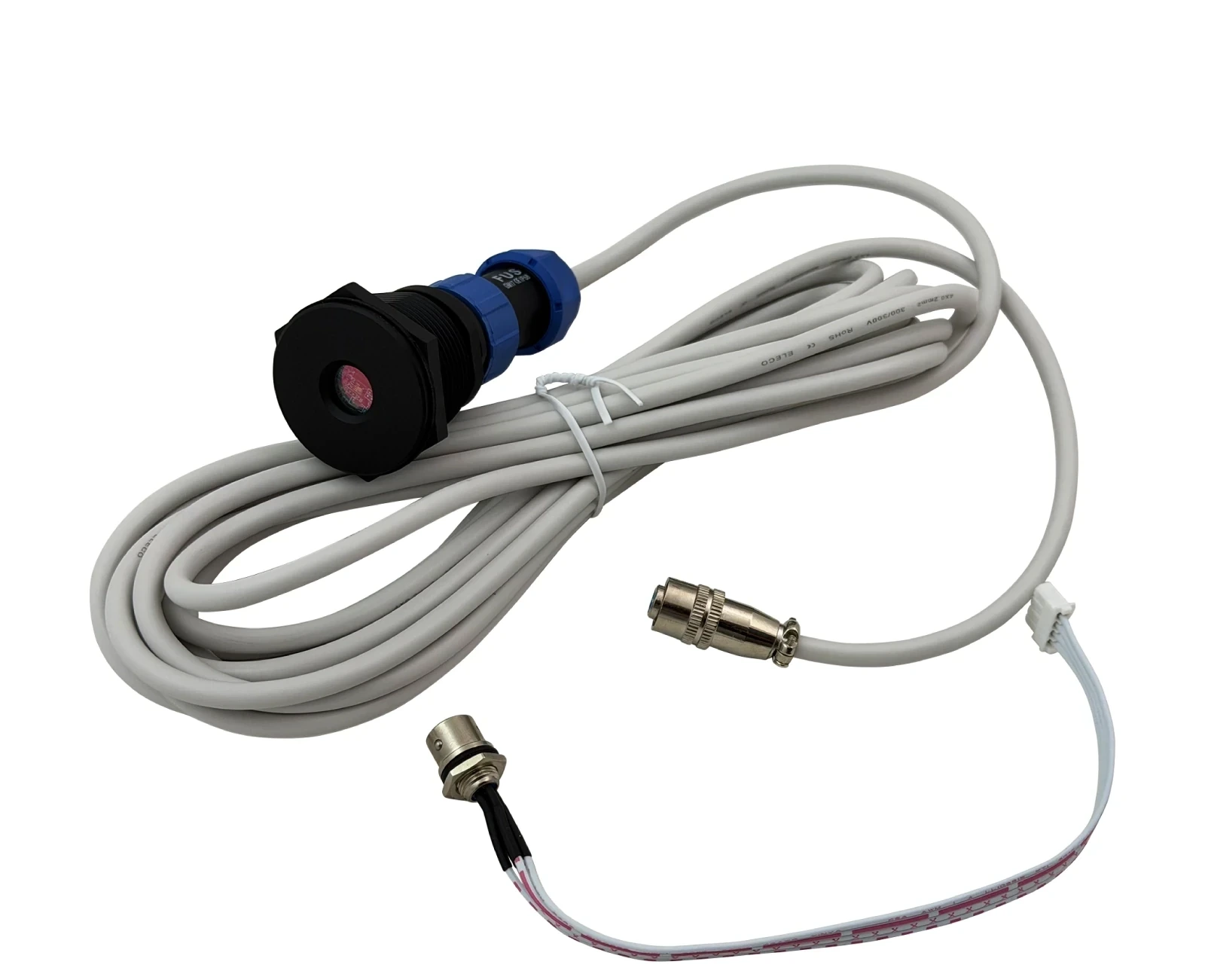

Light Sensor

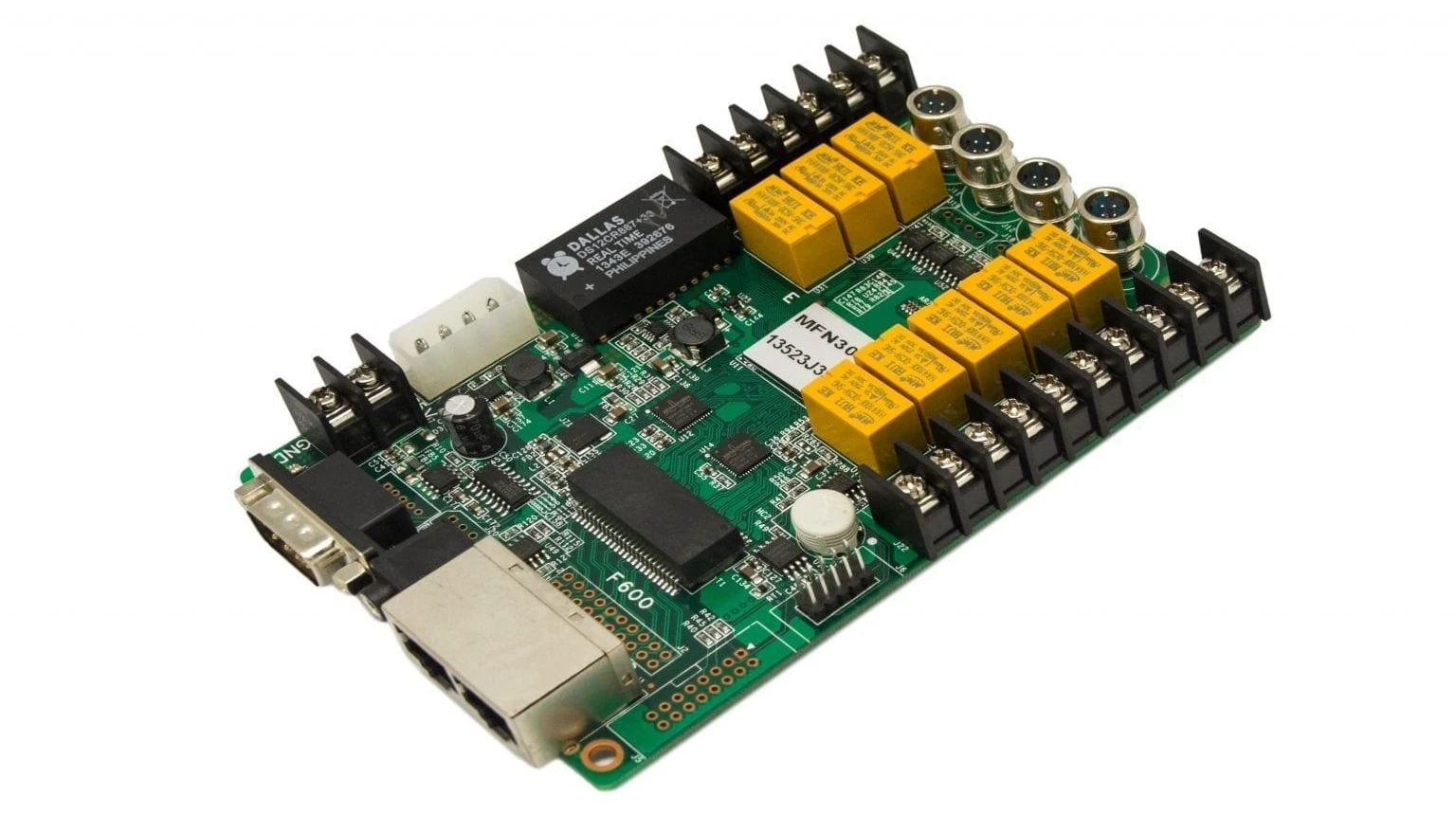

With A Multi-Function Card And A Light Sensor, The System Automatically Adjusts Screen Brightness Based On Real-Time Ambient Light -- Brighter During The Day And Dimmer At Night

Scheduled Brightness Adjustment:

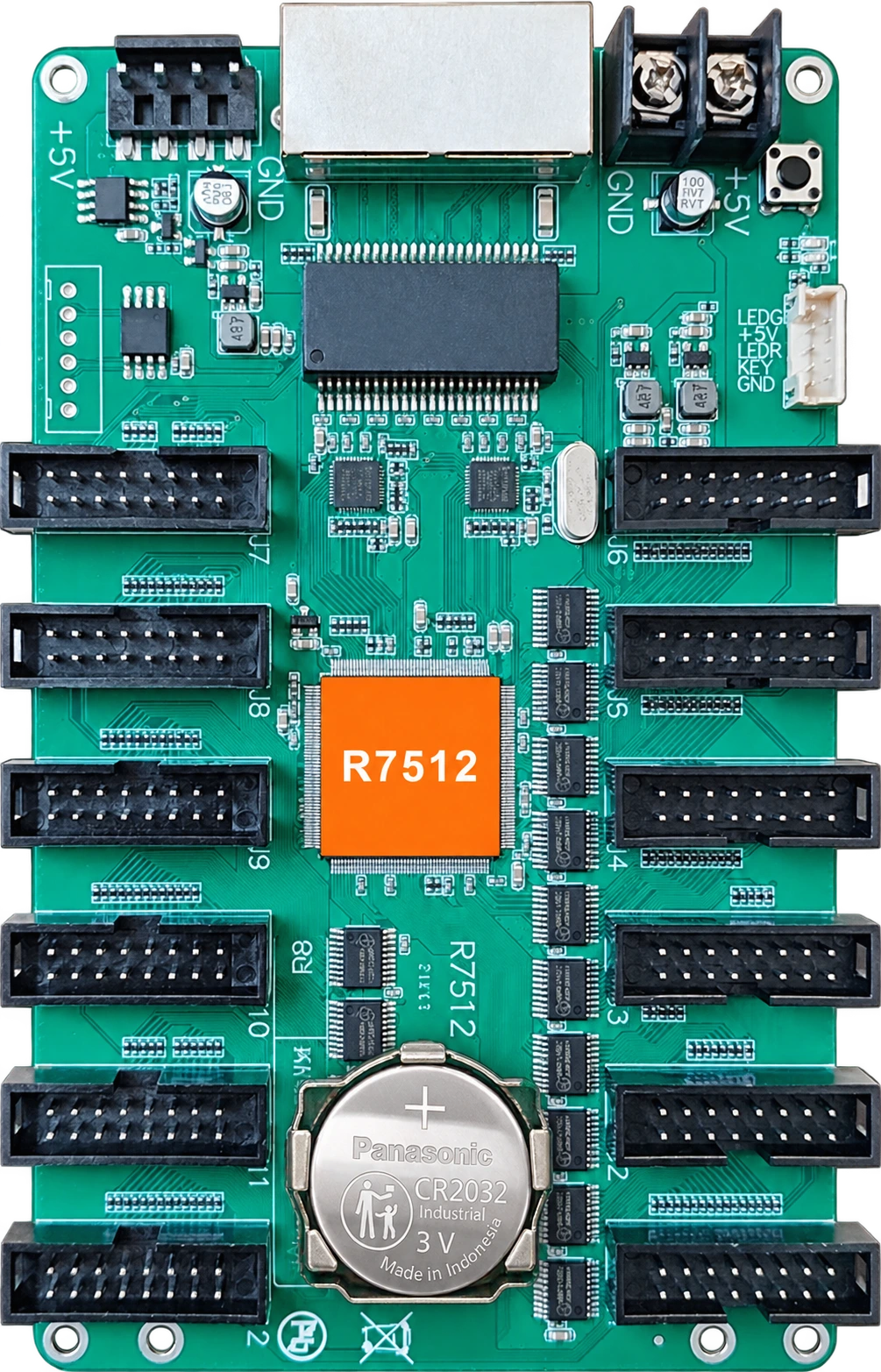

Receiving card with added coin cell battery

Morning08:00100%
Evening18:0060%
Night22:0030%

The Mainboard Adds A Battery; Users Can Preset Time-Based Brightness Levels. The System Automatically Adjusts Screen Brightness According To The Schedule, Requiring No Manual Intervention. Ideal For Applications With Fixed Operating Hours

Both Modes Offer Flexible And Intelligent Brightness Control For Energy-Efficient, Comfortable, And Optimized Display Performance -- Effectively Reducing Light Pollution And Saving Electricity Costs

More Features

Cable Backup

Support Network Cable Backup

Parameter
Restore

✓ Restored

Support Parameter Backup

Data Group
Exchange

✓ Aligned

Support Data Group Exchange

For More Detailed Information, Please Contact Us !

More Services

More Than A SupplierYour Trusted Long-Term Partner

OEM & ODM Services Available

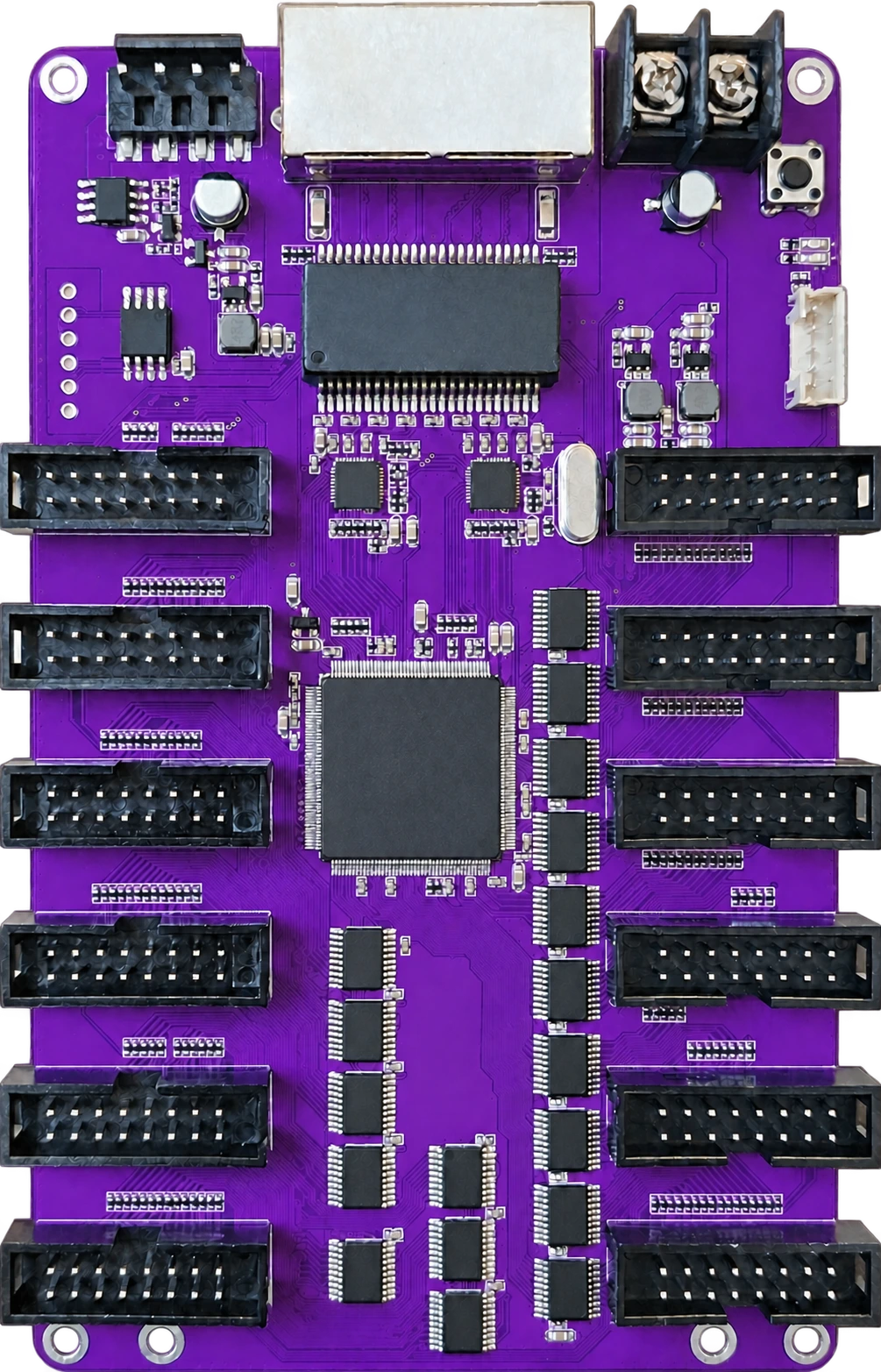

Purple receiving card with unmarked black components

We Offer Free Customization Services, Including Designing Module-To-Box Adapter Boards And Integrating The Receiving Card With The Box Adapter Board Into A Single Unit

Full Technical Support

Free Solution Design

☷Selection

✓Deployment

24/7Technical
Response

Free Solution Design, 24/7 Technical Response, And End-To-End Support From Selection To Deployment

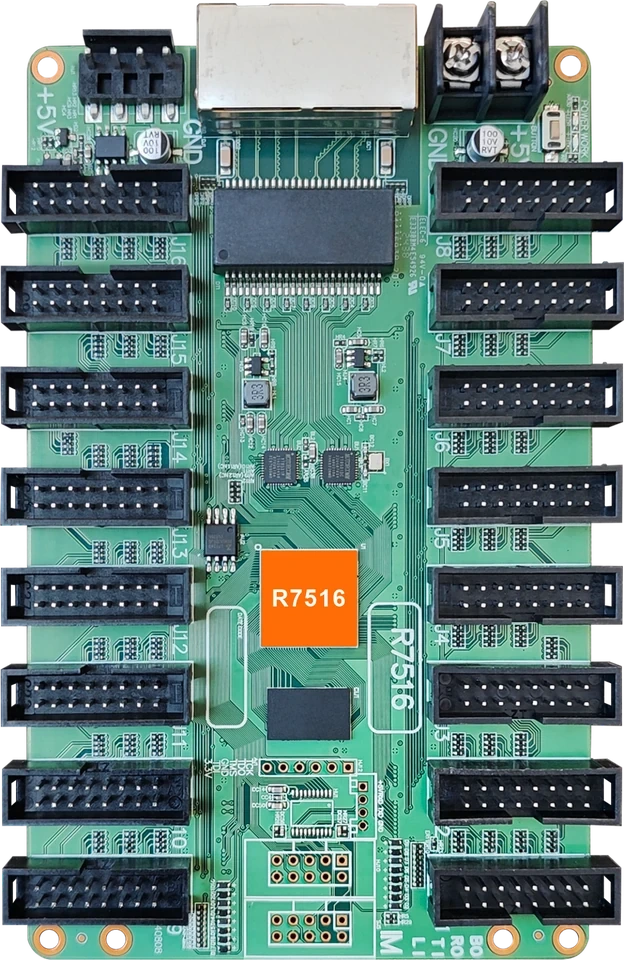

R7512 And R7516 Port Specifications
Models	AMS-R7512 And AMS-R7516
LED Module Outputs	R7512: 12 × HUB75E; R7516: 16 × HUB75E.
Ethernet Ports	2 × Gigabit Ethernet; Either Port Can Connect To A Sending Card Or Another Receiving Card.
Power Inputs	2 × 5V DC Power Inputs; Connect Either One.
Suitable Video Controllers	AMS-VS1 / AMS-VS3 / AMS-VS4

Display Performance
Scan Mode	Static To 1/64 Scan.
Grey Level	256 To 65536.

Module Compatibility And Recommended Loading
Module Type	Common Driver IC Modules And Most PWM Driver IC Modules.
Recommended Control Size	256 × 256 Pixels Or 128 × 384 Pixels.
Outdoor Module Width	≤256 Pixels.
Indoor Module Width	≤128 Pixels.

General Specifications
Power Supply	Standard 5V DC.
Communication Distance	Within 120 m With Cat5e Or Cat6 Network Cable.
Working Temperature	-40°C To +85°C.

Download

AMS-R7512 Specification 2026.04.pdf

AMS-R7516 Specification 2026.04.pdf
