16×16 HD Video Matrix

Detail
Parameter
Download

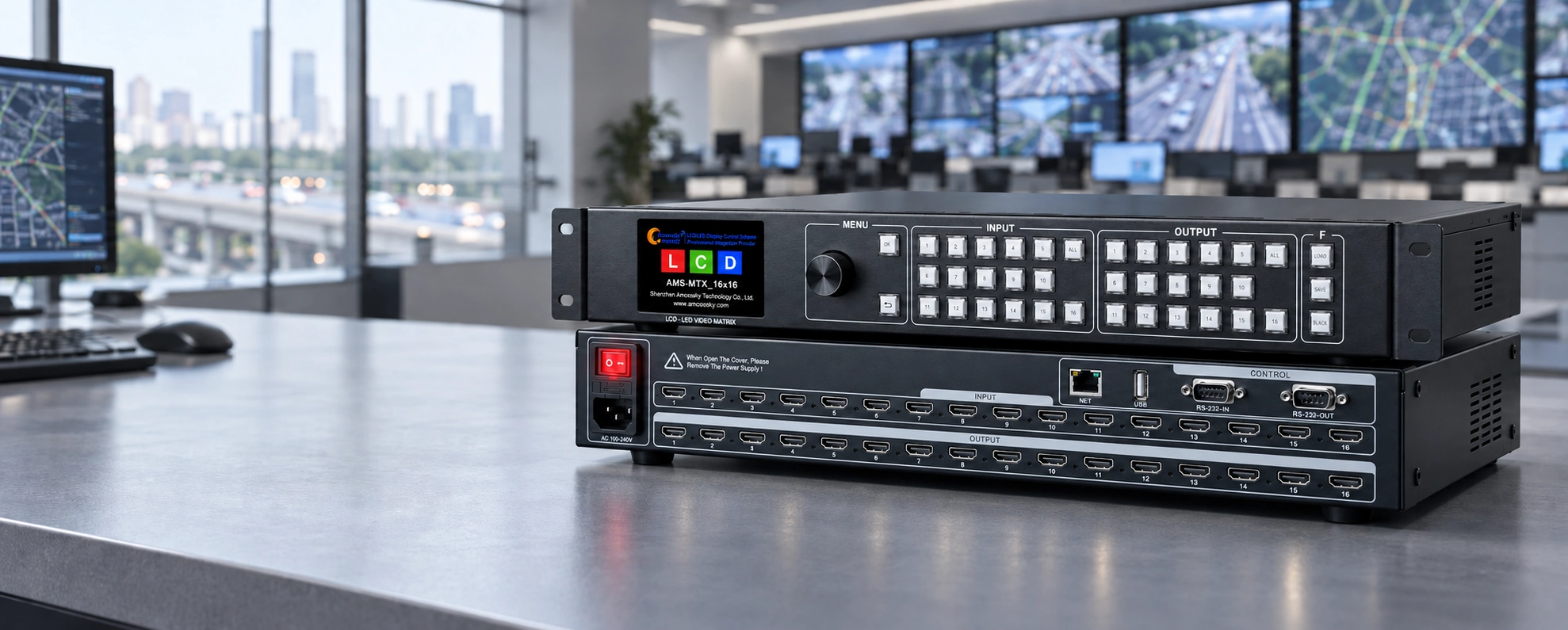

AMS-MTX_16×16 Product Close-Up With A Softly Focused Traffic Command Center

16×16 HD Video Matrix
4K@30Hz

AMS-MTX_16×16

The Best Companion For LCD Splicing Units And The Most Popular Engineering · Grade LCD Video Wall Controller

See The Signal Flow

Seamless Switching & Effortless Smart Control

Amoonsky chip illustration on a blue circuit board

Strong Device Compatibility
Professional Color Accuracy

The Input Supports A Comprehensive Range Of Color Space Formats Including RGB444, YUV444 ( YCbCr 4:4:4 ), YUV422 ( YCbCr 4:2:2 ), And YCbCr 4:2:0 , And Is Compatible With The x.v.Color Extended Color Gamut Standard.

This Ensures High Color Accuracy And True-To-Life Image Reproduction For Conference And Presentation Applications.

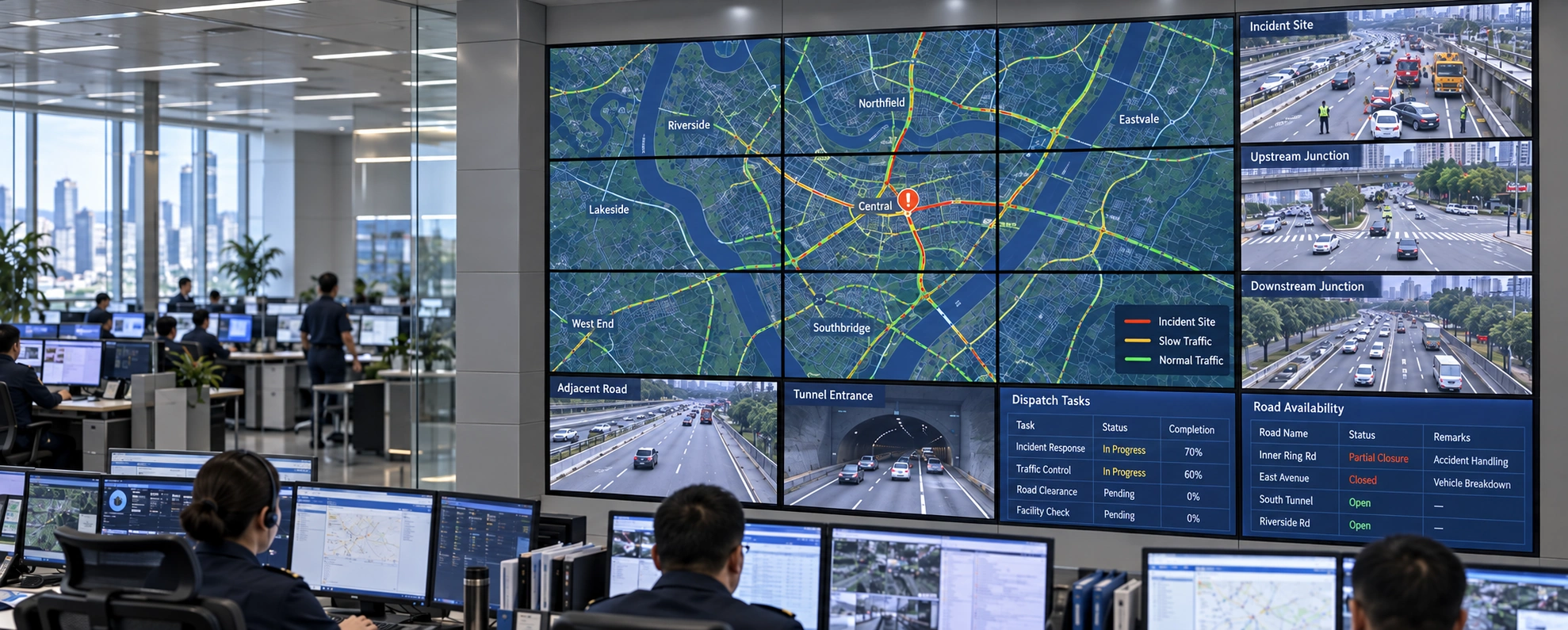

Traffic Incident Map Spanning Nine Physical Screens With Seven Independent Monitoring And Dispatch Screens

Flexible Multi-Screen
Management

Built With Multiple Splicing Modes, It Supports Front-Panel Button And Web-Based Control Interfaces. Featuring Simple Operation And Stable Performance, It Meets The Diverse Display And Control Requirements Of Various Scenarios.

Video Matrix Switcher
Seamless Switching

The Preview Panel Below Provides An Intuitive Way To Simulate Video Matrix Signal Switching. Users Simply Select The Input First, Then Choose The Output. The Matrix System Performs A Seamless Switch With A Smooth, Fluid Display, Delivering An Enhanced Viewing Experience.

Real-Time Experience
One Touch Away & Bringing More Visual Beauty To Life

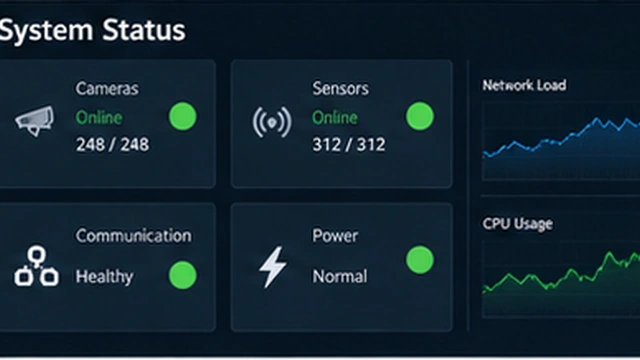

Signal Source

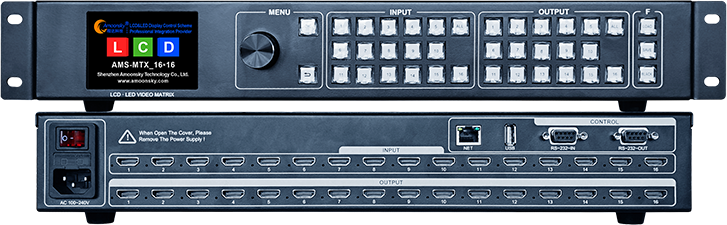

AMS-MTX_16×16 Front And Rear Panels
LCD Splicing Display Unit

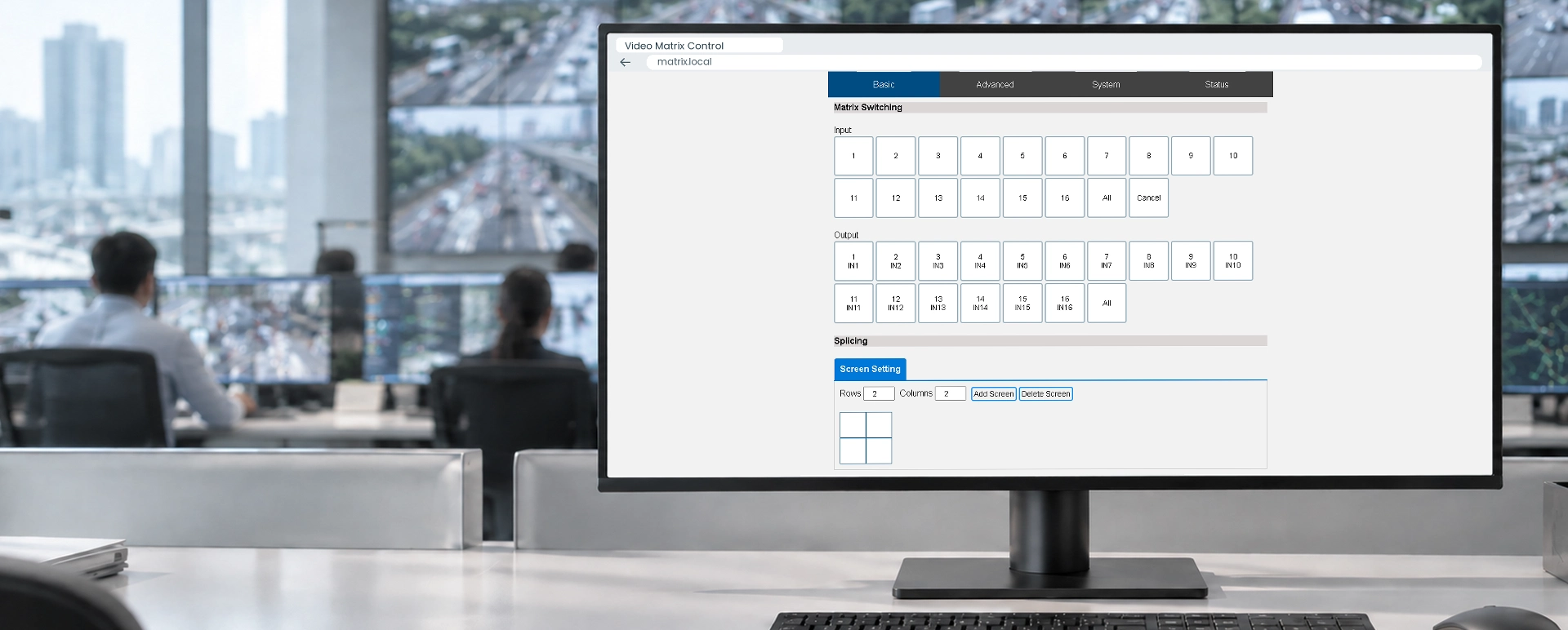

Original Matrix Web Interface In A Desktop Browser At A Control Room Workstation

Web-Based
Upper Computer

Making Video Matrix Control Simpler, More Efficient, And More Intelligent

We Provide Upper-Computer Control Protocols That Ensure Seamless Compatibility With Mainstream Central Control Systems Such As Crestron, AMX, And Control4 For Project Integration.

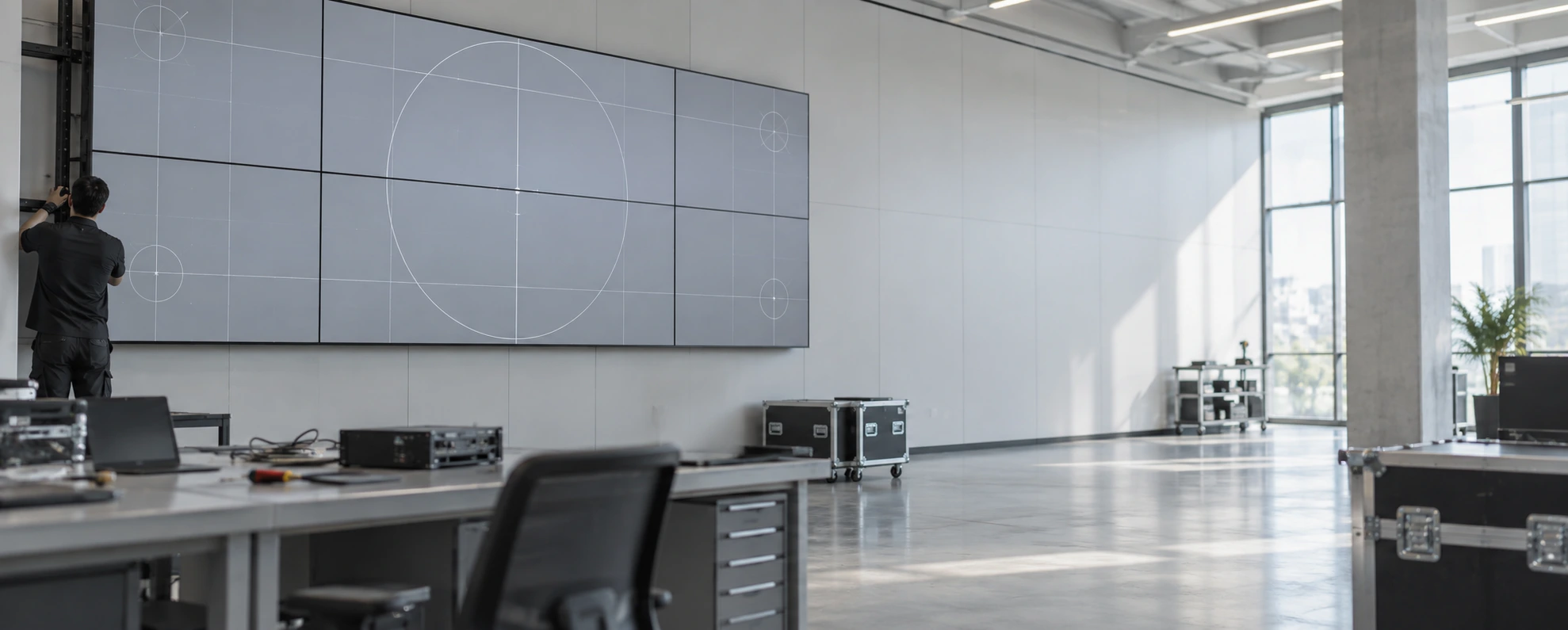

Display Testing

11 Built-In Test Patterns

AMS-MTX_16×16 Comes With Various Built-In Test Patterns, Supporting Static And Other Test Screens, Making It Convenient For Users To Test The LED Screen Without An Input Signal Or In Other Situations.

Applications

More Sources & More Display Positions

Every Installation Scale

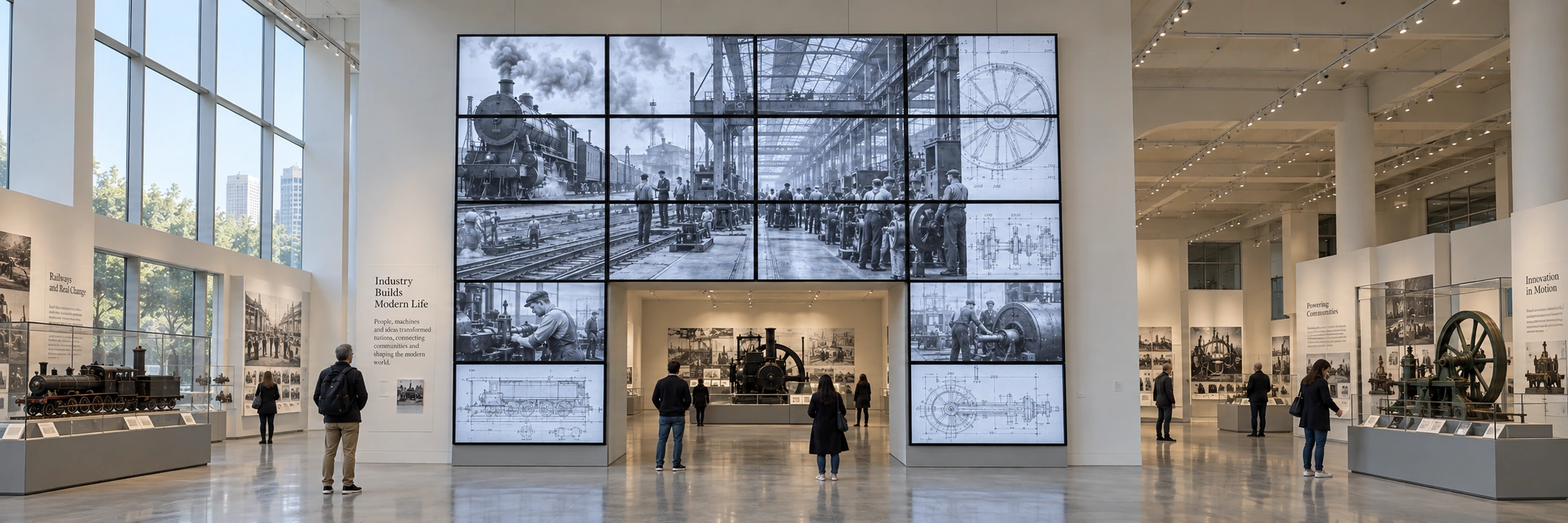

Industrial History Museum With Sixteen Screens Around An Open Doorway
Digital Museum Route Programs To Exhibit Displays Across The Venue

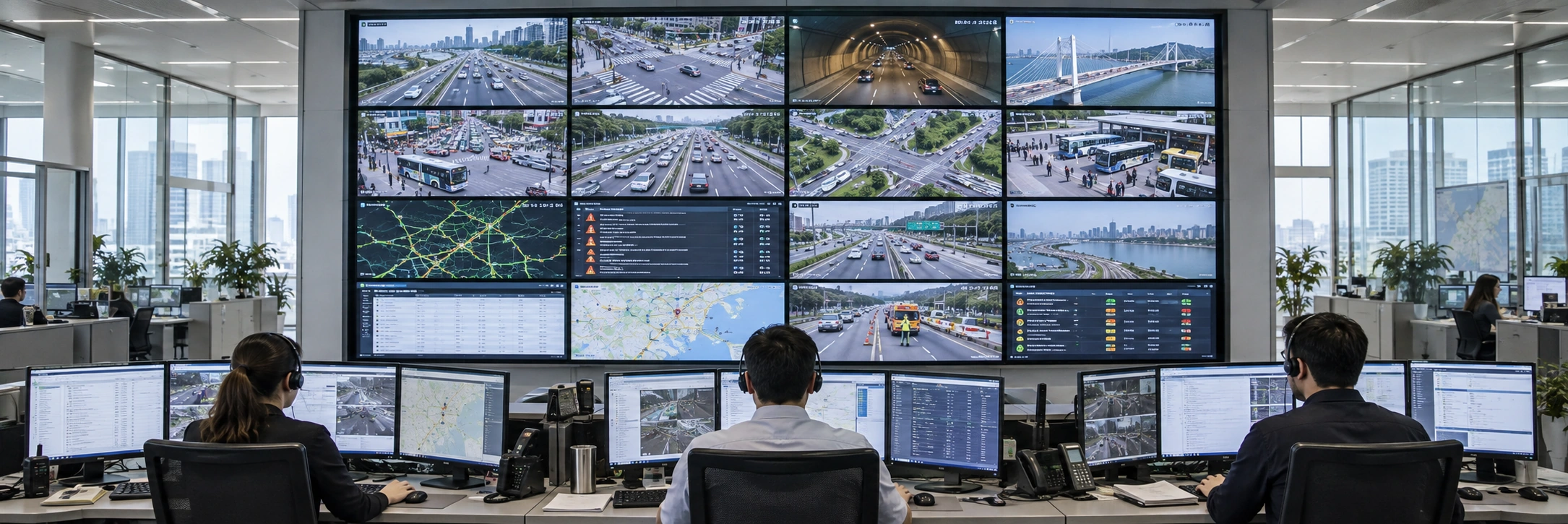

Traffic Command Center With Sixteen Business Displays
Command & Control Center Route Sixteen Sources Across The Display Wall During Dispatch

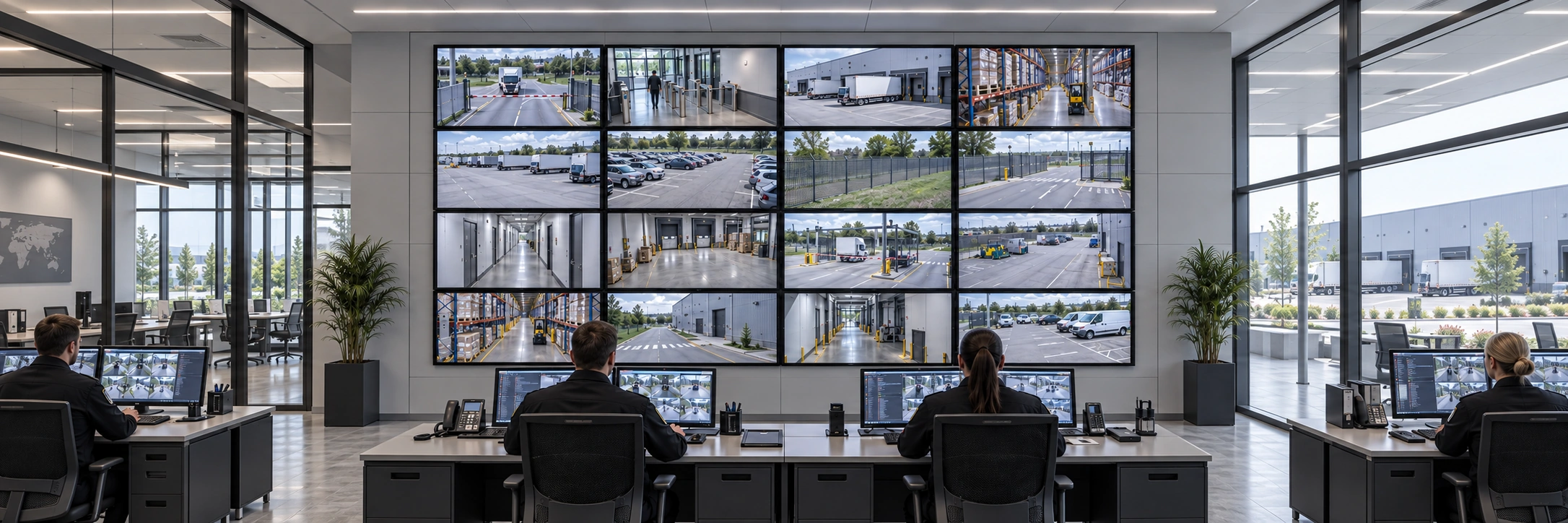

Logistics Security Hall With Sixteen Independent Camera Views
Security Monitoring Hall Show Sixteen Camera Feeds And Recall Saved Layouts For Each Shift

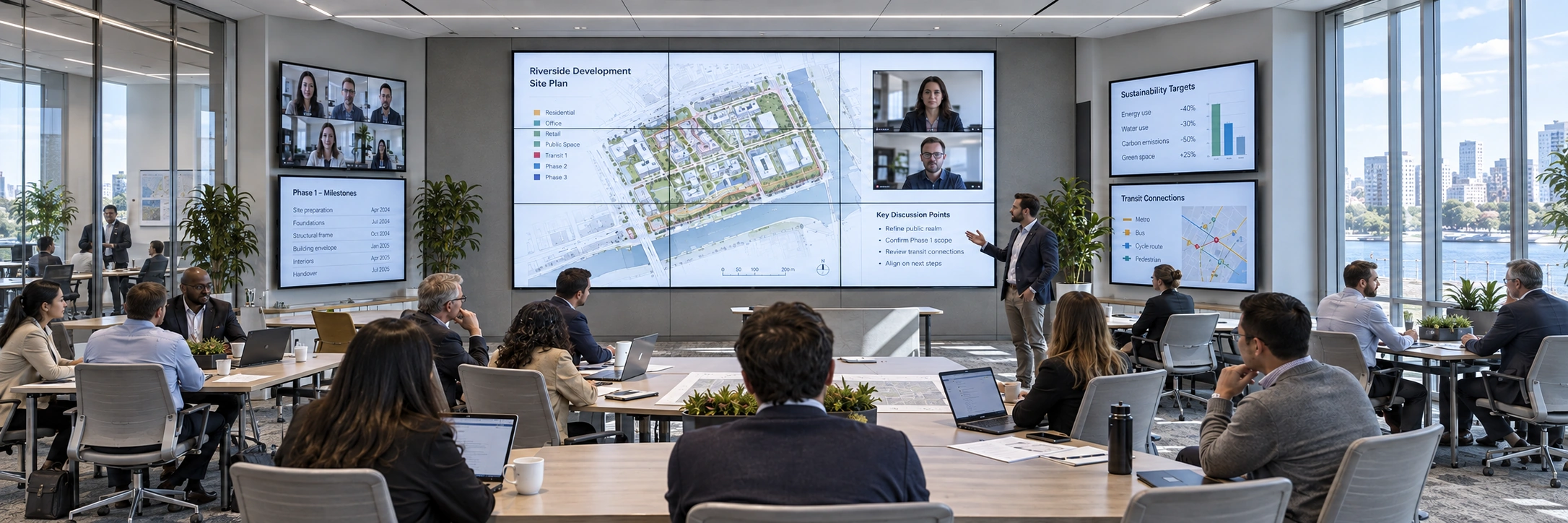

Enterprise Meeting With A Nine-Screen Main Wall And Auxiliary Displays
Enterprise Multi-Function Meeting Room Switch Meeting Sources And Recall Saved Display Layouts

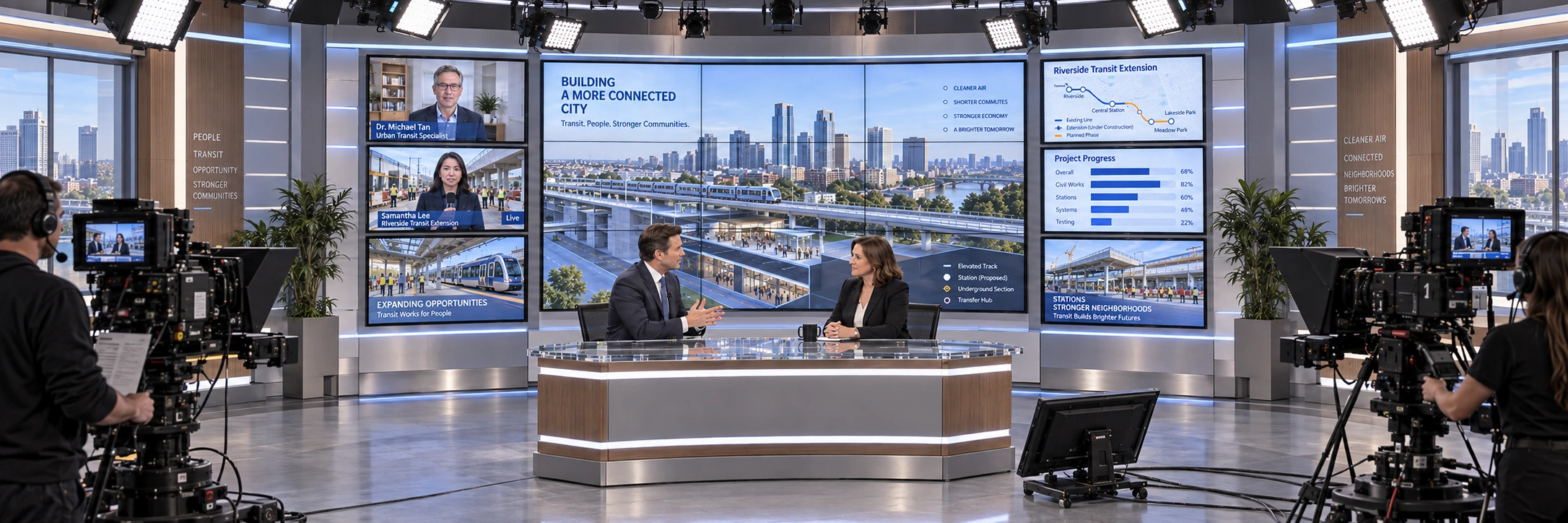

Broadcast Studio With Three Plus Nine Plus Three Wall Screens And One Presenter Return Monitor
Broadcast Studio Route Camera Feeds To Studio Monitors During Production

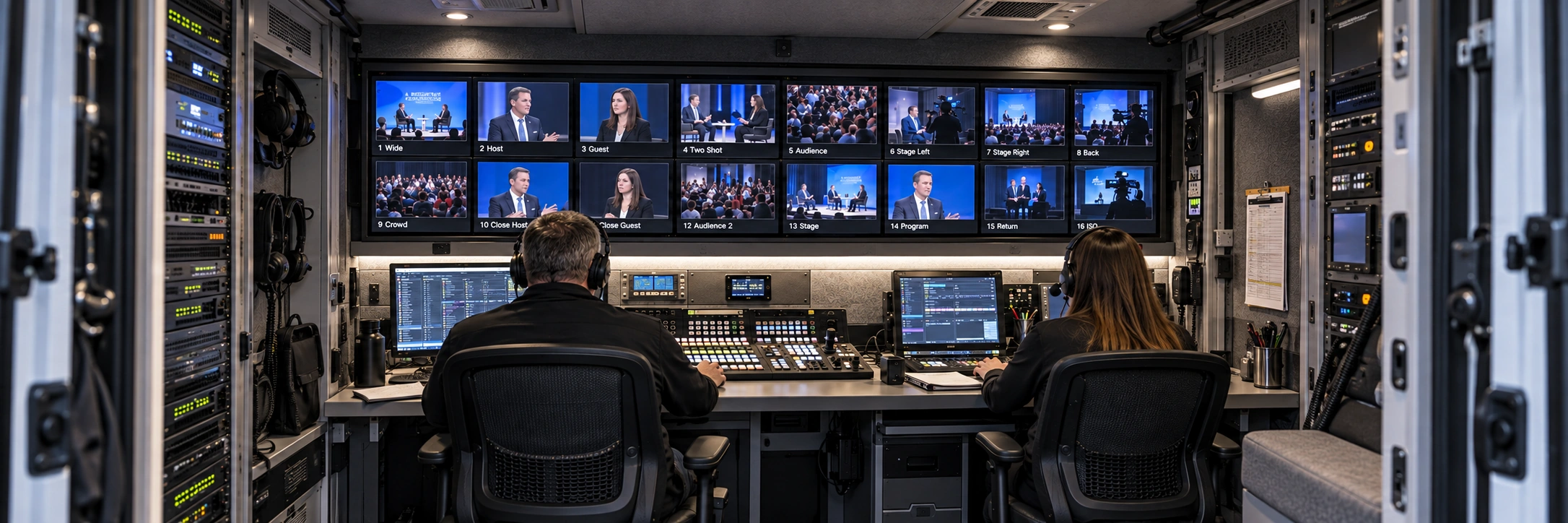

Production Van Monitoring Multiple Views Of The Same Interview
4K OB Van & Production Monitoring Send 4K Sources To Production And Confidence Monitors
Port Specifications
HDMI Input And Output 16 HDMI‑A Inputs And 16 HDMI‑A Outputs; HDMI 1.4, Backward Compatible; VESA Standard, Up To 3840 × 2160p@30Hz.
NET Ethernet Port RJ45 Ethernet Port For Web‑Based Control Via A Computer And Ethernet Cable.
USB Port For Device Firmware Upgrades.
RS232 Serial Port Serial Control With Loop‑Out For Cascaded Device Control.
EXT / ANT Extension Interfaces; Not Enabled.
Performance
Switching Method Seamless Switching With Synchronized Audio And Video Output.
Device Language English; Other Languages Depend On The Ordered Configuration.
General Specifications
Power Supply Built‑In Mean Well Power Supply; 100–240V AC, 50–60Hz.
Operating Environment Working: T: 0°C To +60°C､H: 10% To 90% Relative Humidity, Non‑Condensing;
Storage Environment Storage : T:-40°C ~ +80 °C ､ H: 10% ~ 90%, Non‑condensing;
Warranty 1 Year; Note: All Rated Voltages Are On Average ±10%;
Packing List
Standard Accessories Power Cable × 1; Certificate × 1; Warranty Card × 1;
Model AMS‑MTX_16×16
Description Standard Model

Download

AMS-MTX_16x16 Specification 2024.11.pdf
download_icon
AMS-MTX_16x16 Manual 2025.06.pdf
download_icon
