8×8 HD Video Matrix

Detail
Parameter
Download

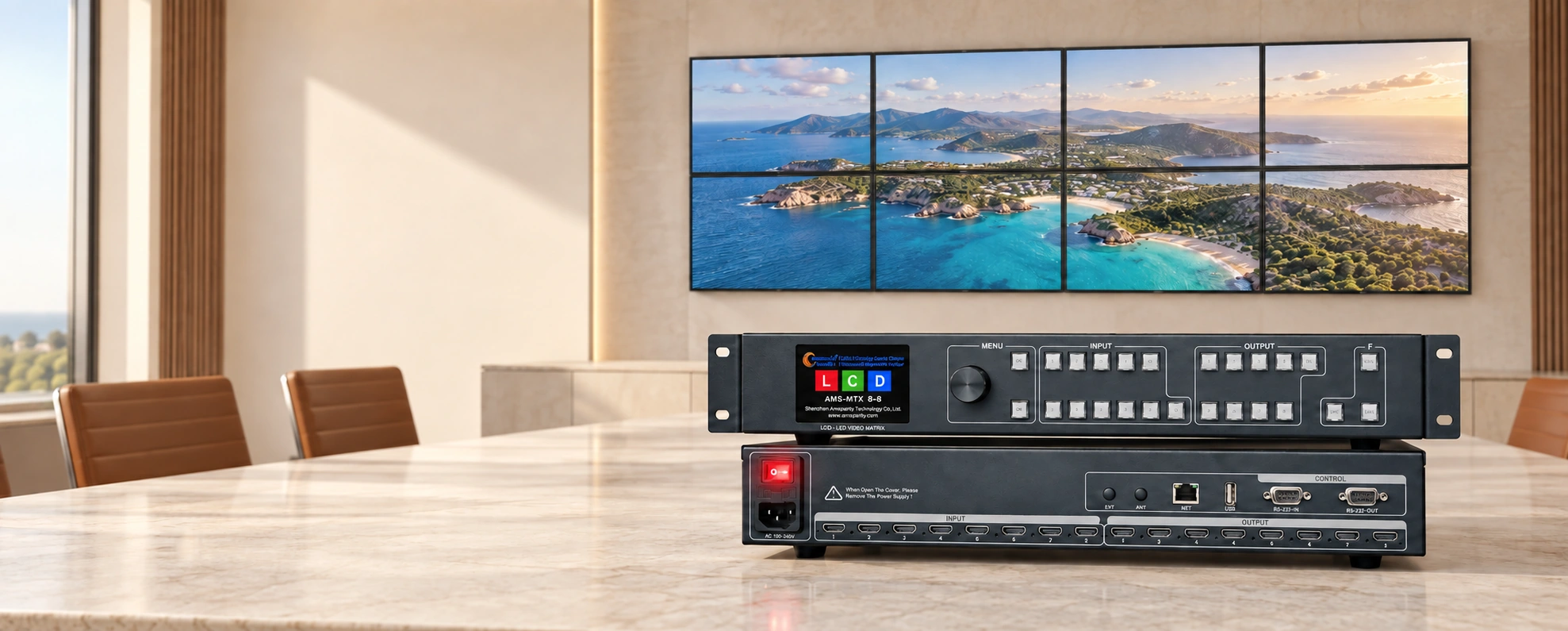

MTX 8×8 front and rear views in an illustrated conference room with eight displays

8×8 HD Video Matrix
4K@30Hz

AMS-MTX_8×8

The Best Companion For LCD Splicing Units And The Most Popular Engineering · Grade LCD Video Wall Controller

See The Signal Flow

Seamless Switching & Effortless Smart Control

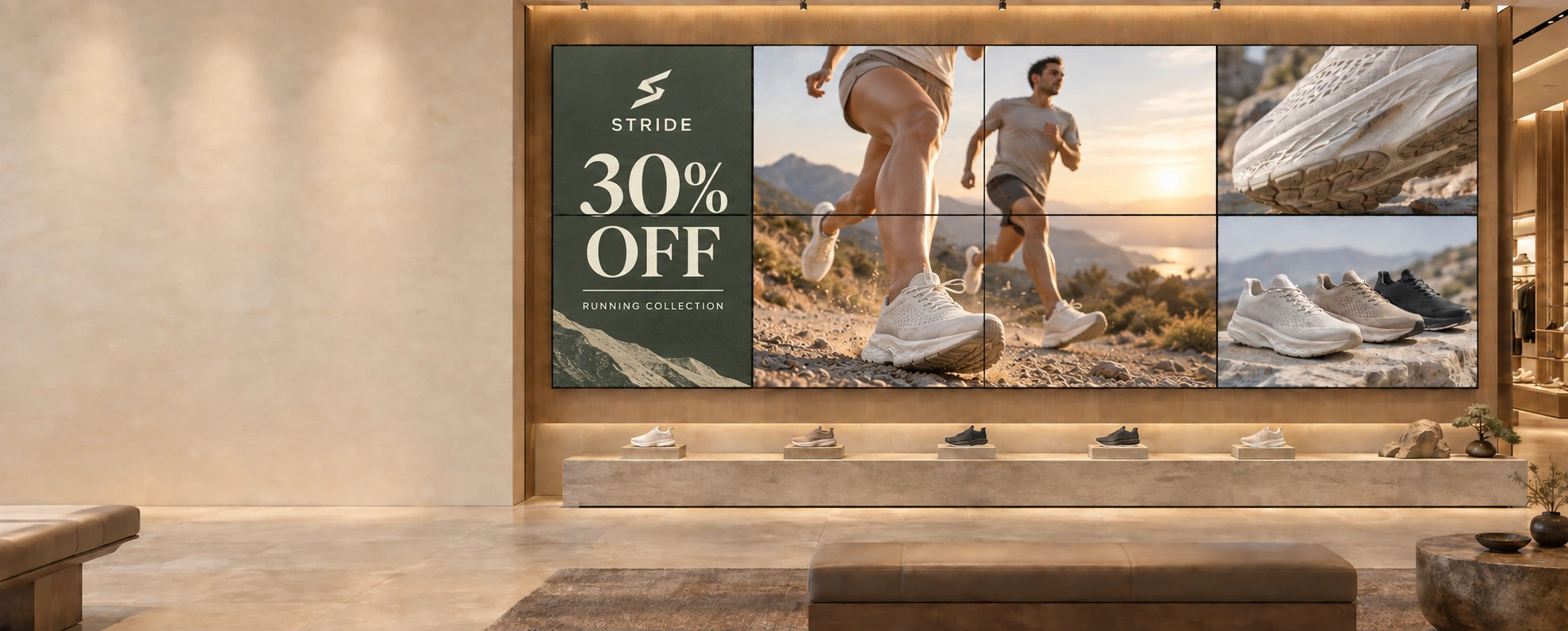

Eight physical screens showing four coordinated sports-store campaign groups

Flexible Multi-Screen
Management

Built With Multiple Splicing Modes, It Supports Front-Panel Button And Web-Based Control Interfaces. Featuring Simple Operation And Stable Performance, It Meets The Diverse Display And Control Requirements Of Various Scenarios.

Blue illuminated chip illustration with an Amoonsky logo

Strong Device Compatibility
Professional Color Accuracy

The Input Supports A Comprehensive Range Of Color Space Formats Including RGB444, YUV444 (YCbCr 4:4:4), YUV422 (YCbCr 4:2:2), And YCbCr 4:2:0, And Is Compatible With The x.v.Color Extended Color Gamut Standard.

This Ensures High Color Accuracy And True-To-Life Image Reproduction For Conference And Presentation Applications.

mtx8-routing-background

Video Matrix Switcher
Seamless Switching

Real-Time Experience

One Touch Away & Bringing More Visual Beauty To Life

The Preview Panel Below Provides An Intuitive Way To Simulate Video Matrix Signal Switching. Users Simply Select The Input First, Then Choose The Output. The Matrix System Performs A Seamless Switch With A Smooth, Fluid Display, Delivering An Enhanced Viewing Experience.

HDMI Inputs

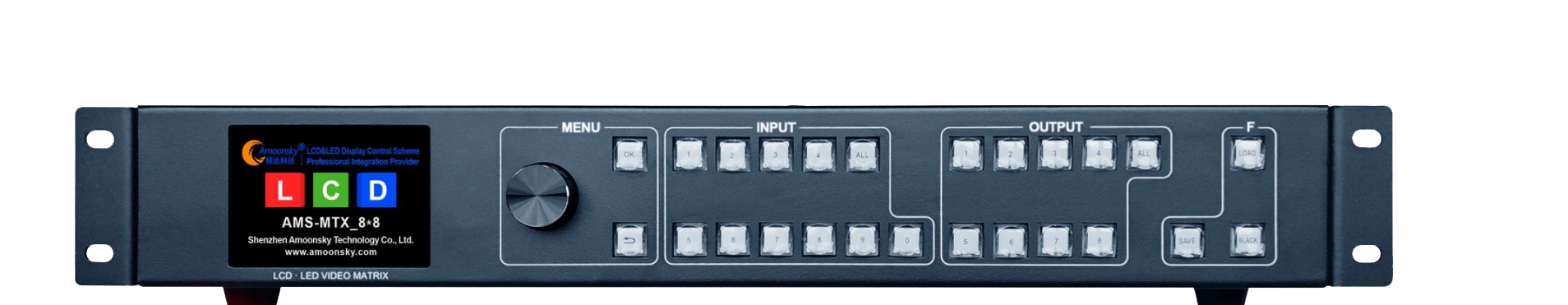

MTX 8×8 actual front panel
HDMI Outputs
Desktop monitor, keyboard and mouse in a bright control workstation
MTX Web Control
Device IP Address

Web-Based
Upper Computer

Making Video Matrix Control Simpler, More Efficient And More Intelligent

Connect Via The RJ45 Ethernet Port, Enter The Device IP Address In A Browser, And Log In To The Web-Based Upper Computer. No Software Installation Is Required. You Can Perform Matrix Switching, Multi-Screen Splicing, Preset Save And Recall, Input/Output Resolution Settings, Black Screen / Freeze / Test Pattern Control, And Real-Time Monitoring Of Input Signals And Output Status. The System Supports Static IP And DHCP, Account Password Modification, And A Multi-Language Interface.

Applications

More Sources & More Display Positions

Every Installation Scale

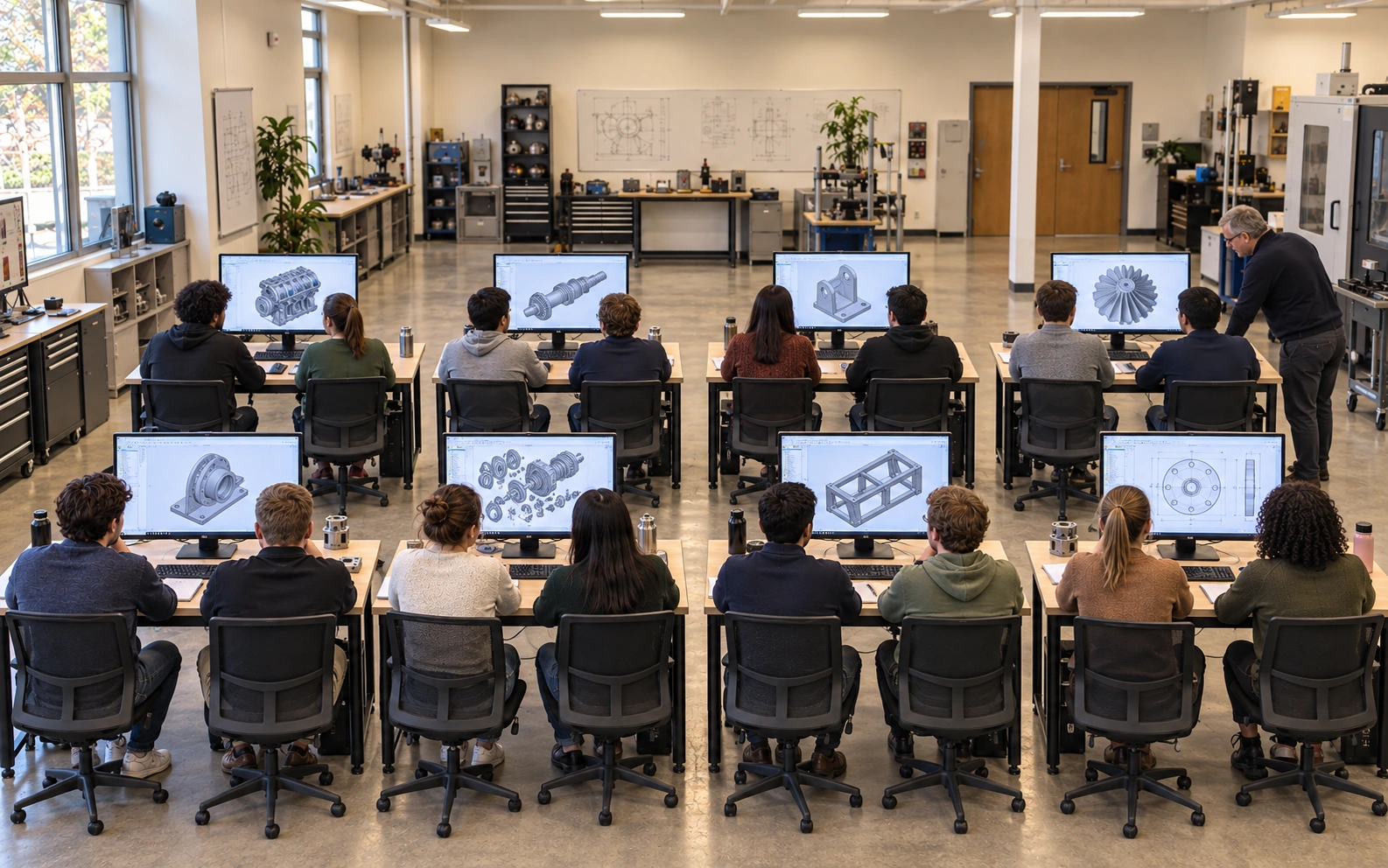

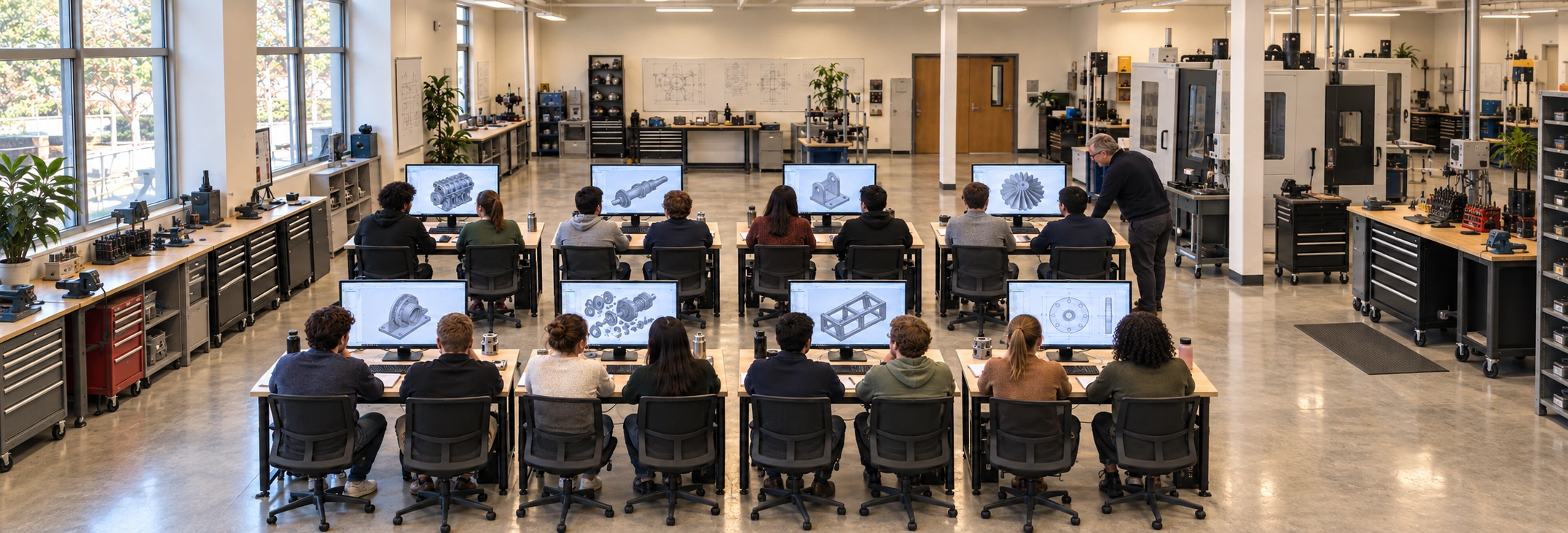

Eight training displays showing technical drawings

Eight Groups & One Flexible System

Send Teacher And Group Computer Sources To Eight Training Displays

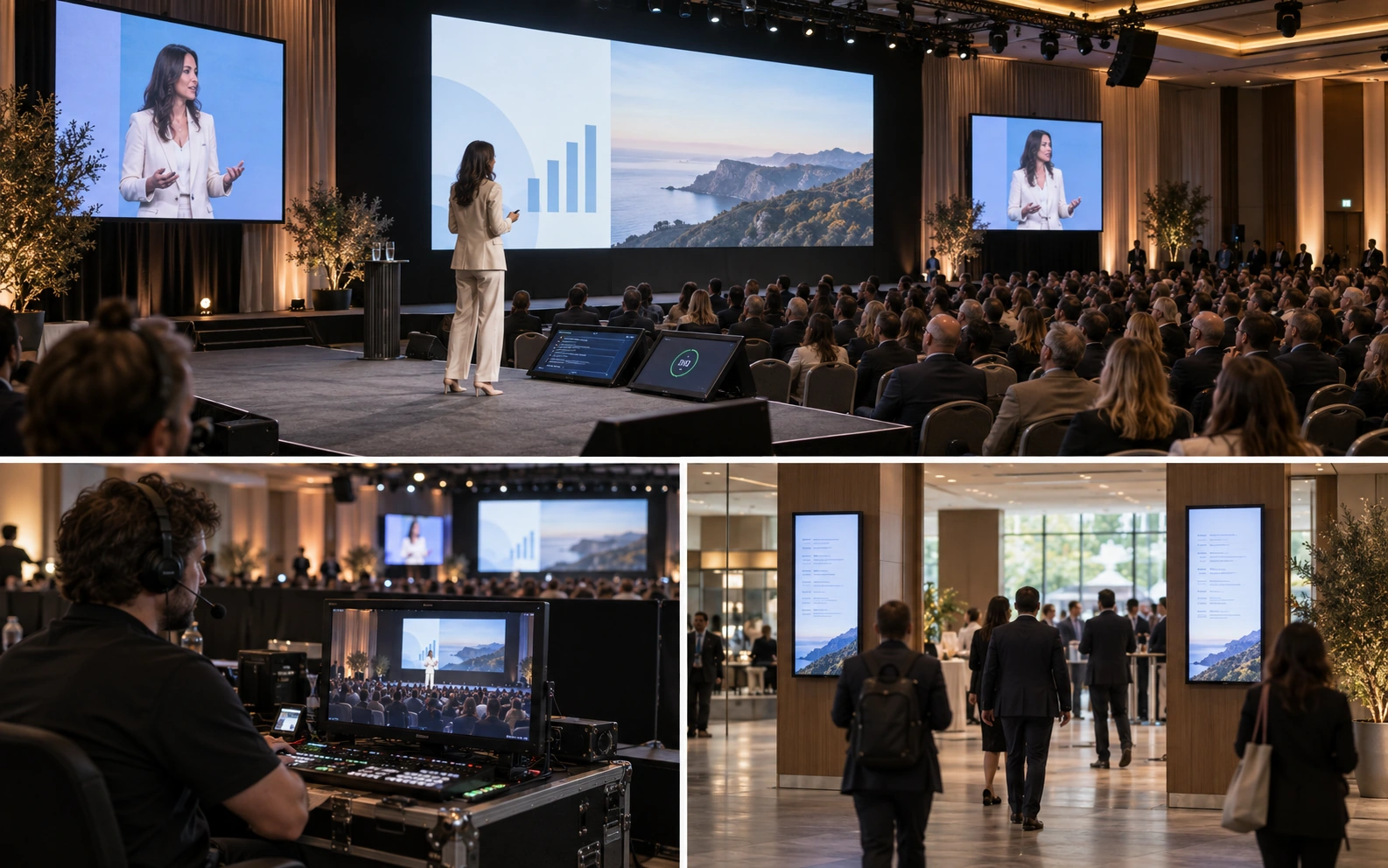

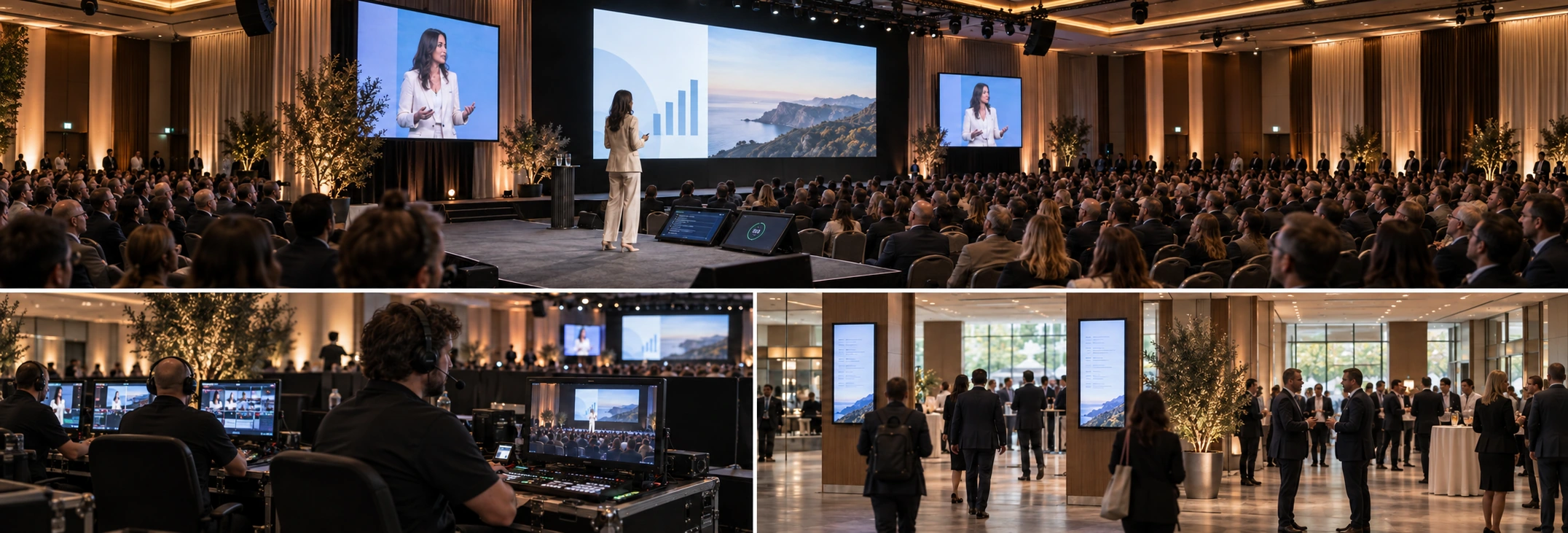

Eight conference display destinations across a venue

Eight Destinations Across The Venue

Serve The Main Screen, Side Screens, Confidence Displays, Production Desk And Foyer

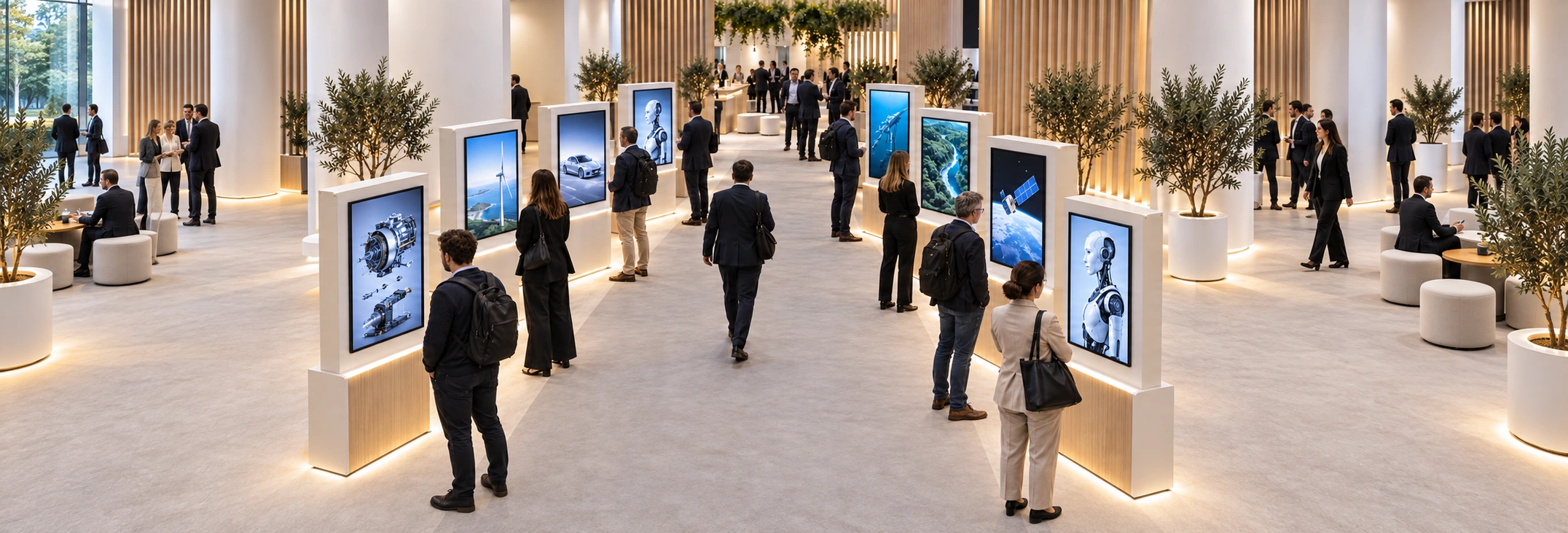

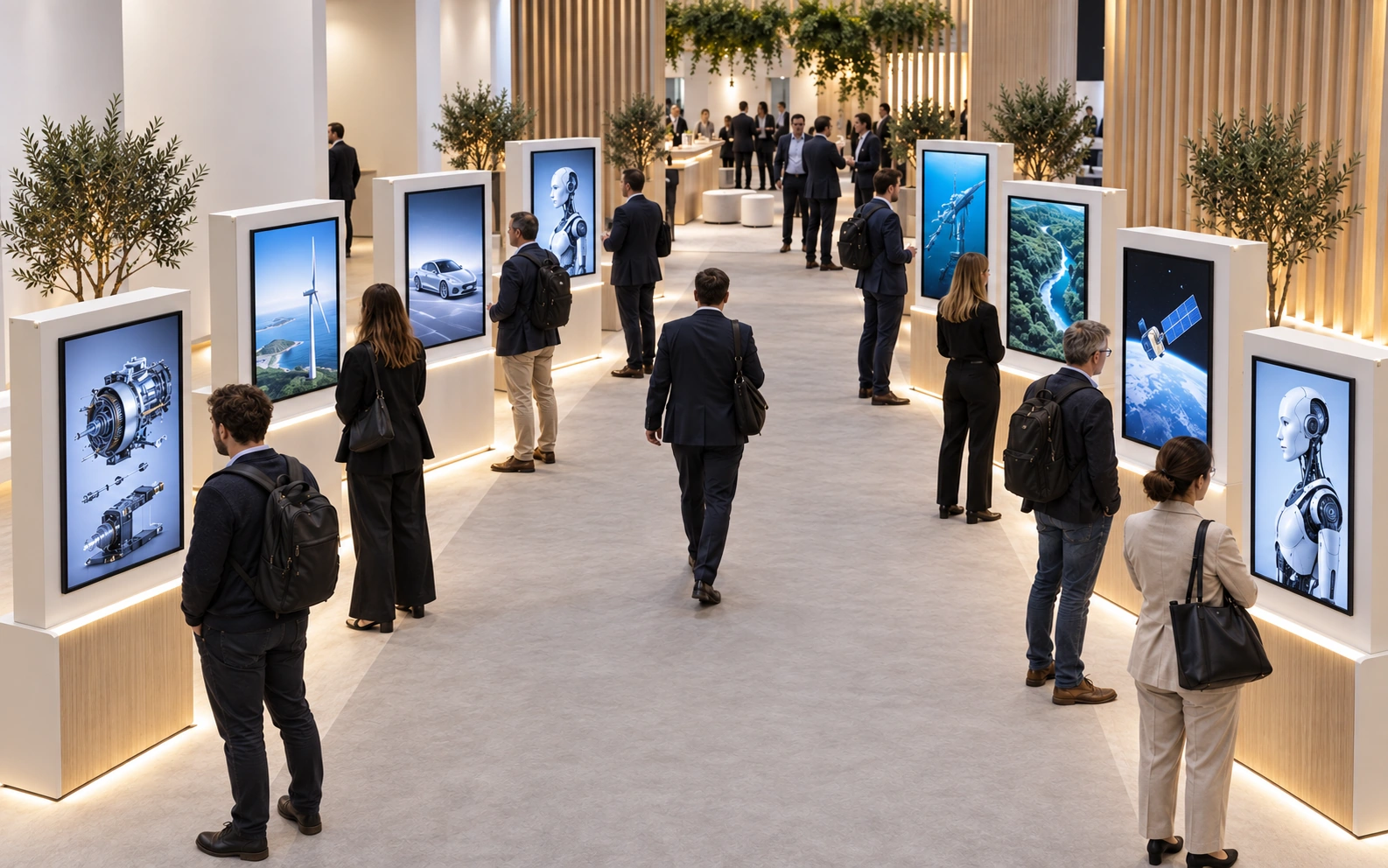

Eight exhibition terminals showing different programs

Different Content For Eight Exhibits

Route Eight Programs To Their Corresponding Exhibition Displays

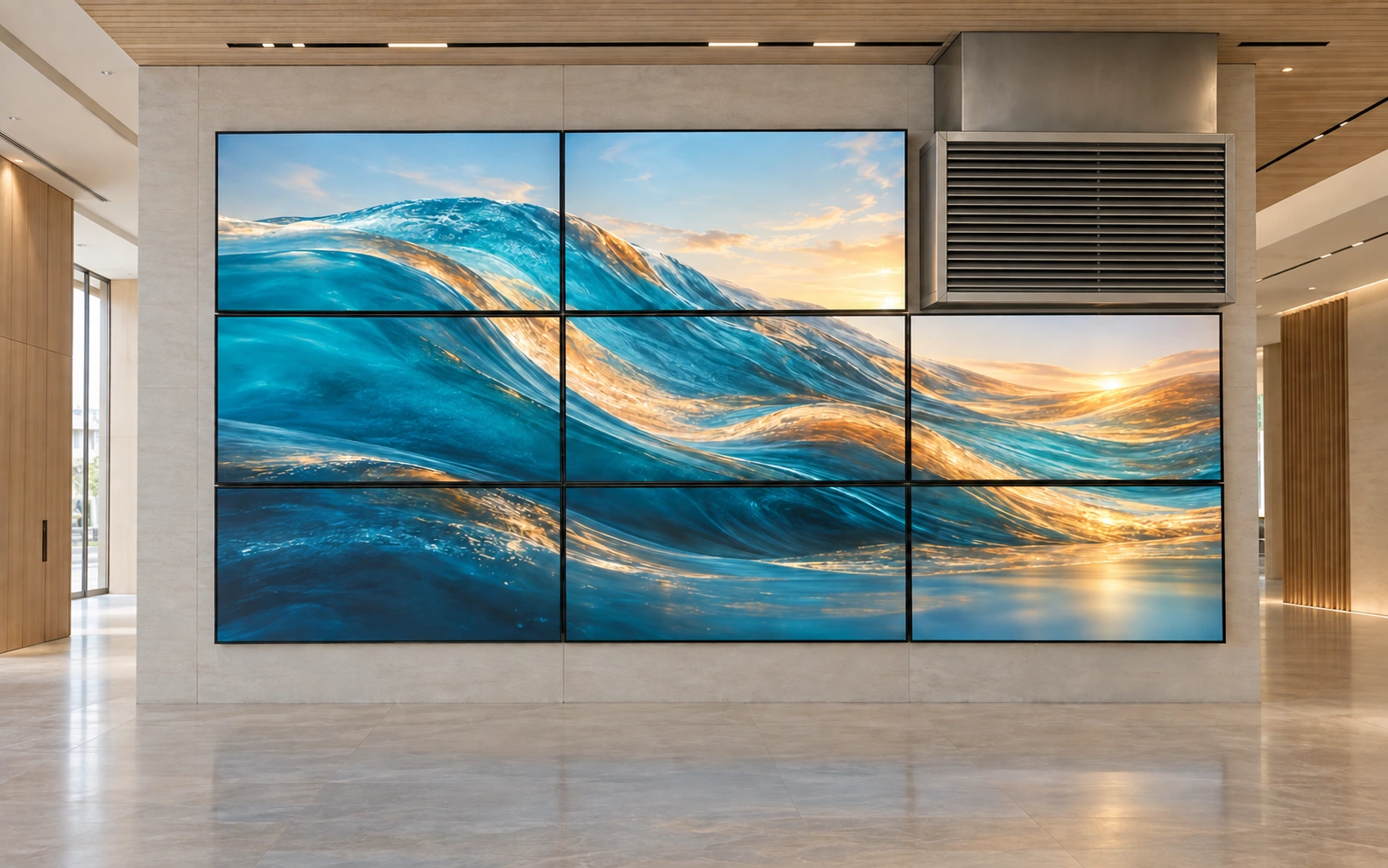

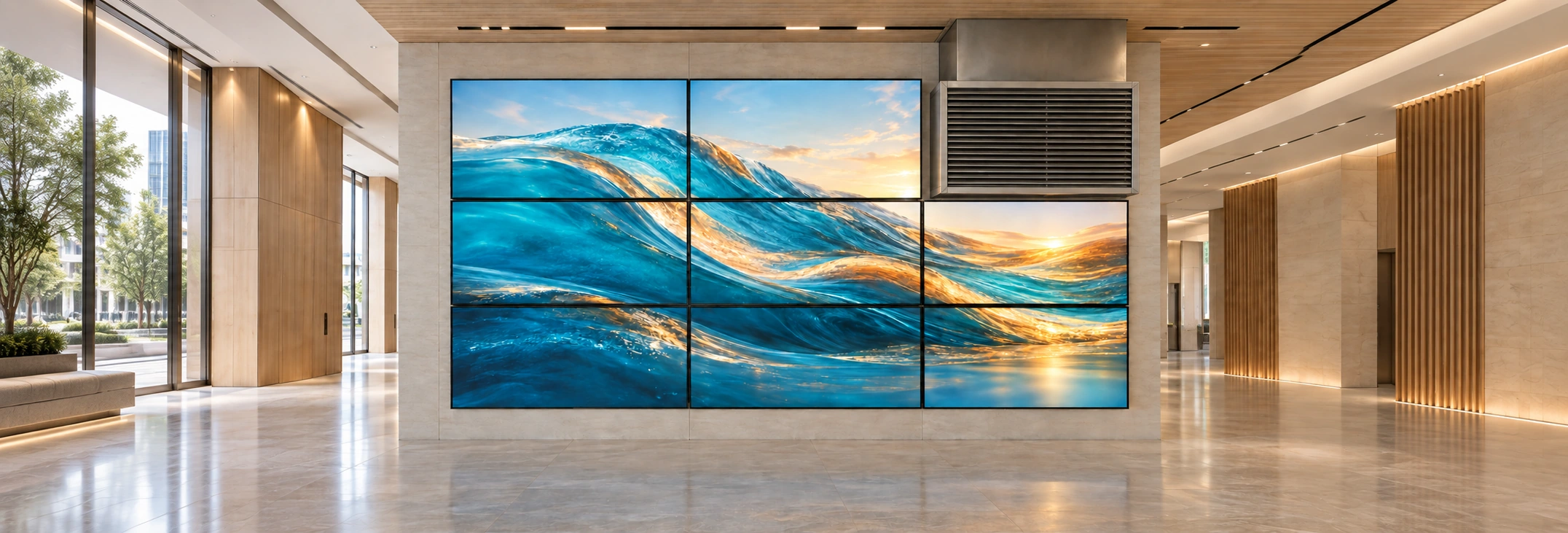

Eight displays arranged around a ventilation obstruction

A Complete Picture On Any Wall Shape

Adapt The Splicing Layout Around Columns, Doors And Obstructed Positions, Using Every Available Display

Port Specifications
HDMI Input And Output 8 HDMI‑A Inputs And 8 HDMI‑A Outputs; HDMI 1.4, Backward Compatible; VESA Standard, Up To 3840 × 2160p@30Hz.
NET Ethernet Port RJ45 Ethernet Port For Web‑Based Control Via A Computer And Ethernet Cable.
USB Port For Device Firmware Upgrades.
RS232 Serial Port Serial Control With Loop‑Out For Cascaded Device Control.
EXT / ANT Extension Interfaces; Not Enabled.
Performance
Switching Method Seamless Switching With Synchronized Audio And Video Output.
Device Language English; Other Languages Depend On The Ordered Configuration.
General Specifications
Power Supply Built‑In Mean Well Power Supply; 100–240V AC, 50–60Hz.
Operating Environment Working: T: 0°C To +60°C､H: 10% To 90% Relative Humidity, Non‑Condensing;
Storage Environment Storage : T:-40°C ~ +80 °C ､ H: 10% ~ 90%, Non‑condensing;
Warranty 1 Year; Note: All Rated Voltages Are On Average ±10%;
Packing List
Standard Accessories Power Cable × 1; Certificate × 1; Warranty Card × 1;
Model AMS‑MTX_8×8
Description Standard Model

Download

AMS-MTX_8x8 Specification 2024.11.pdf
download_icon
AMS-MTX_8x8 Manual 2025.06.pdf
download_icon
