All-In-One LED Display Controller VS1/VS3/VS4
All-In-One LED Display Controller VS1/VS3/VS4
VS SERIES
All-In-One LED Display Controller
USB Player · Video Processor · LED Controller
Makes LED Display Screen Setup More Simple

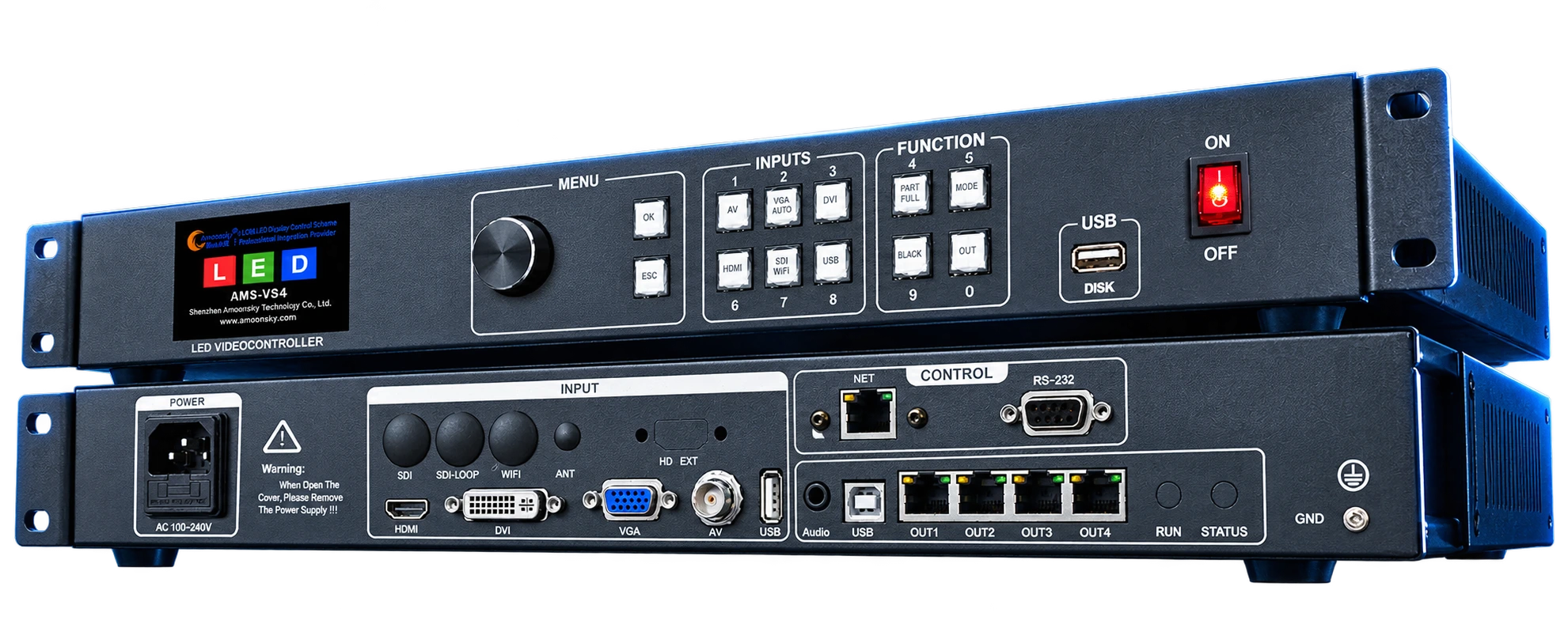

AMS-VS4

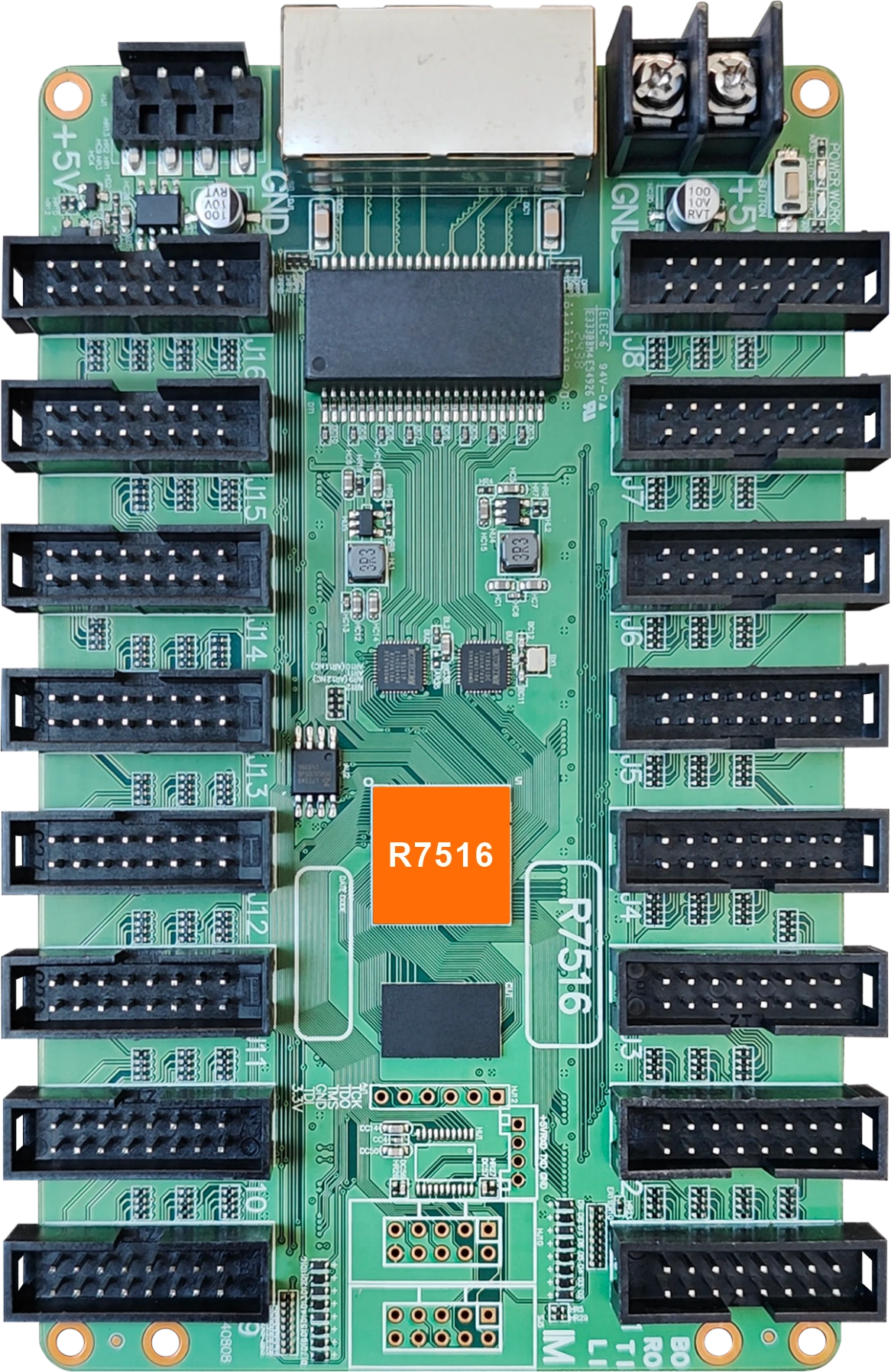

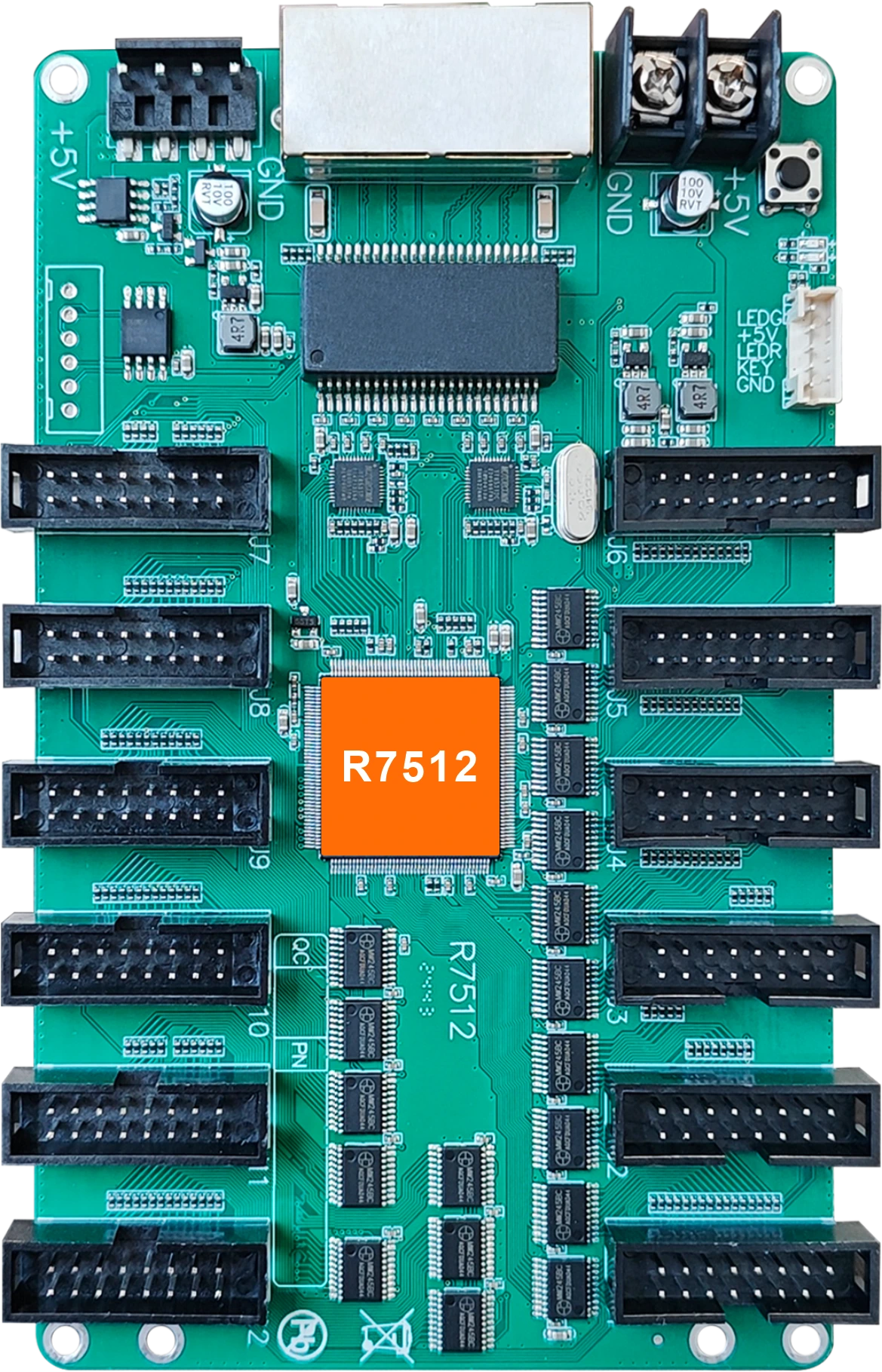

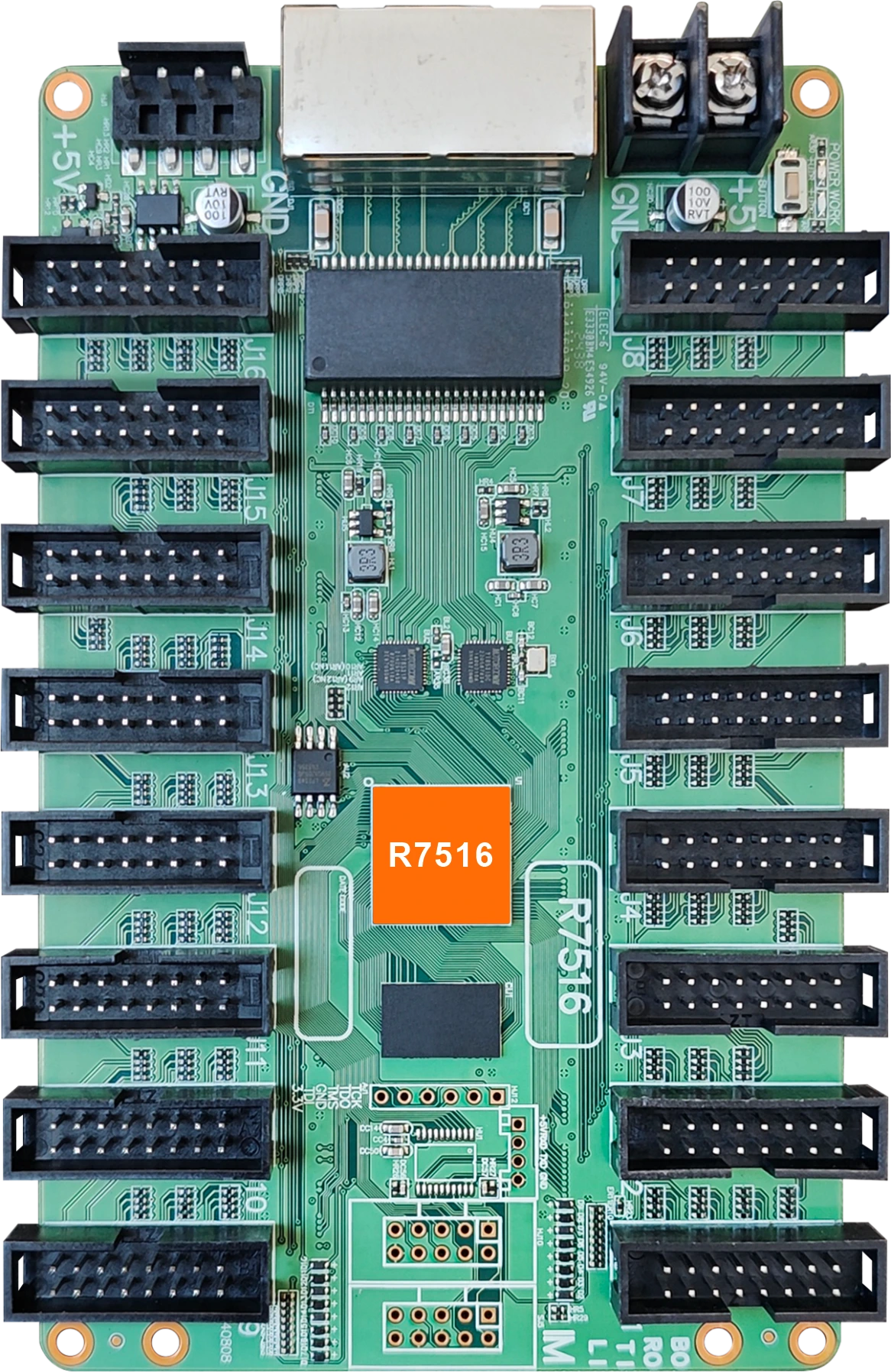

Receiving Cards
Output
VS1 | VS3: 2× RJ45VS4: 4× RJ45
Expansion Features
HDMISDI Input & LoopWi-Fi Mirroring
Control Methods
IR RemoteUpper Computer Control
Part | Full Display Switching
Full Screen For Impact · Part Screen For Precision

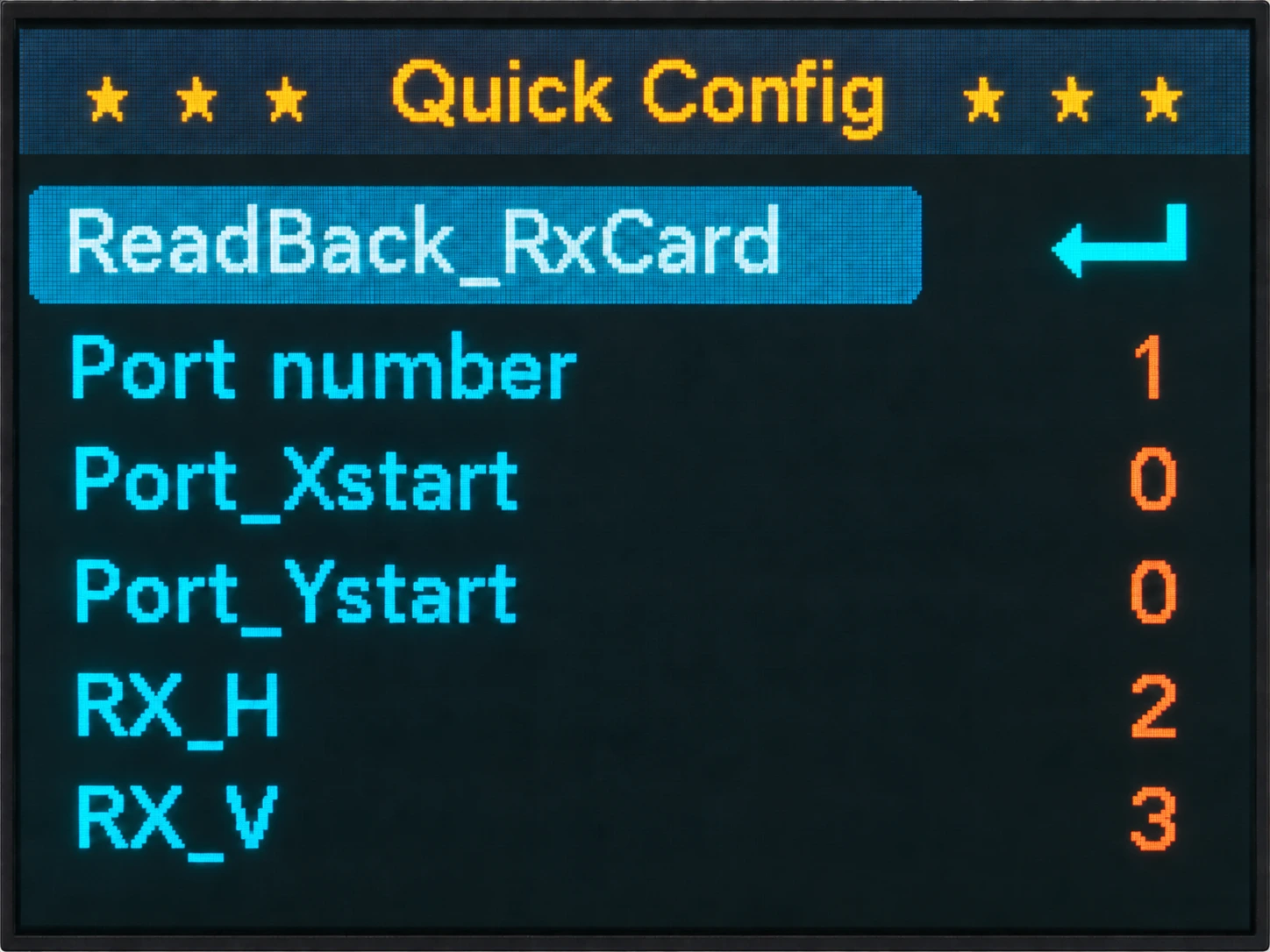

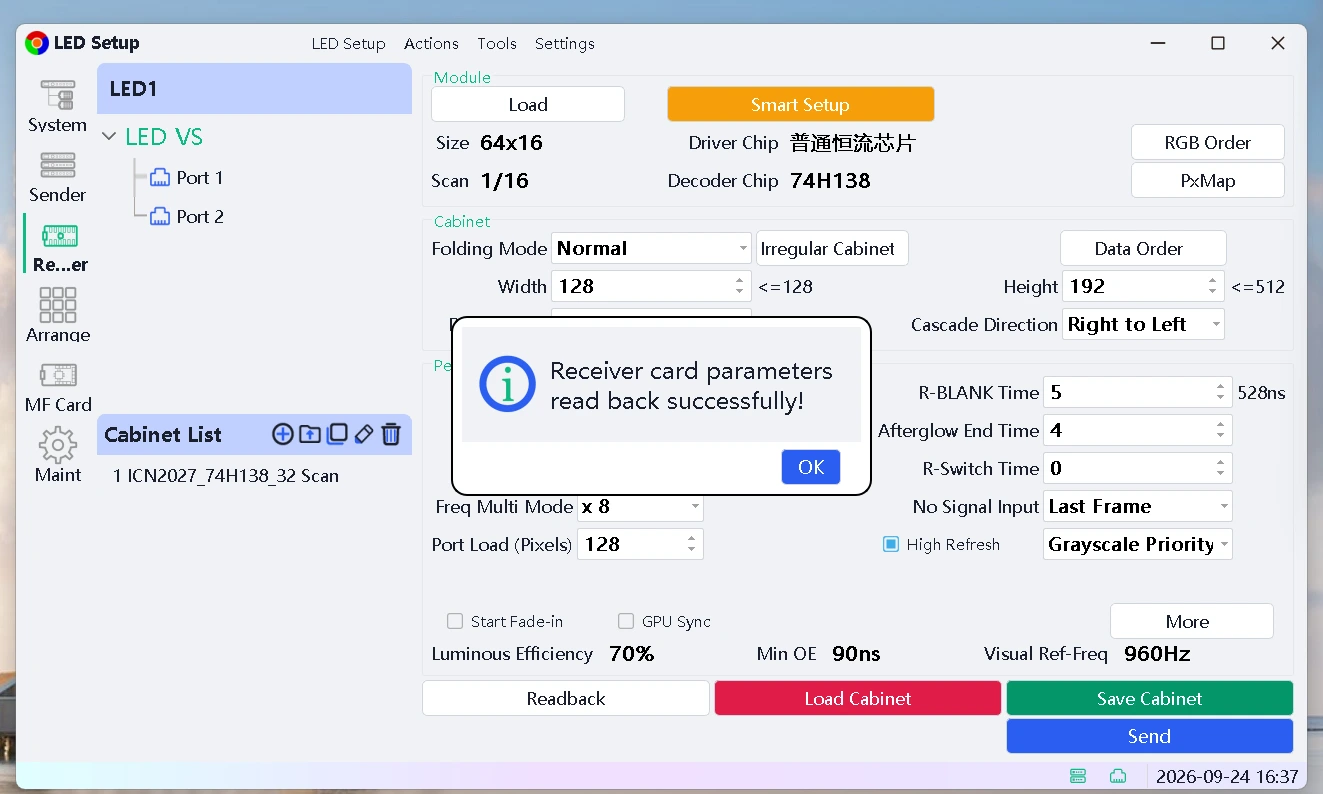

Parameter Readback
Directly Read The Configured Parameters From The Receiving Card
No Need Once Again Intelligent Settings
Eliminating Repetitive Setup Steps And Boosting Operational Efficiency
FirmwareConfiguration Parameters

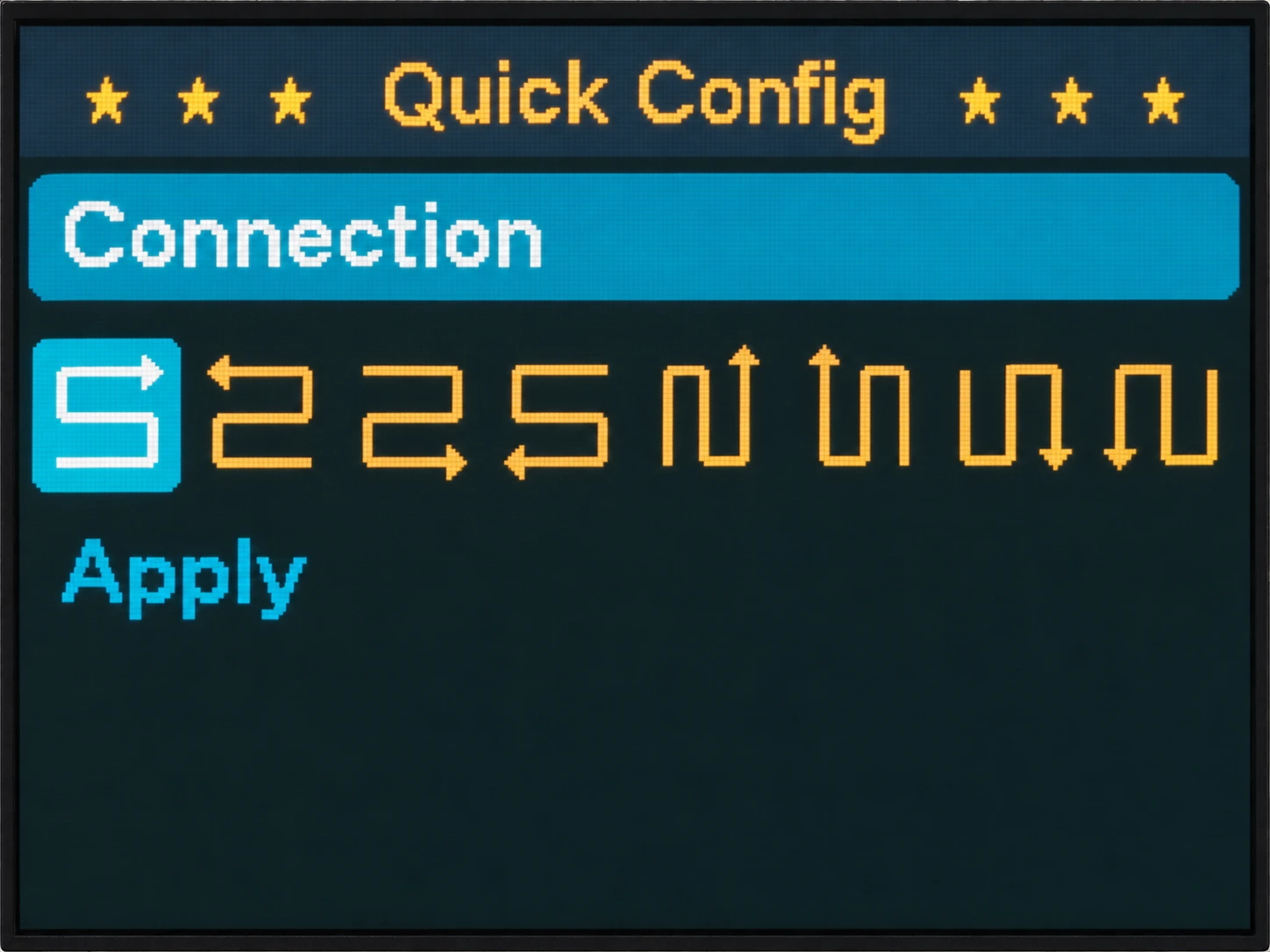

Quick Config
Directly Configure The LED Display Cabinets Connection
Through The Video Controller Menu With 8 Wiring Modes
No PC Is Required After Initial Setup
P:01#005P:01#006P:02#005P:02#006
P:01#004P:01#003P:02#004P:02#003
P:01#001P:01#002P:02#001P:02#002
Mapping
Display Receiving Card Positions And Wiring Routes Directly On Screen For Effortless Cabinet Cabling And Fast Troubleshooting Of Faulty LED Cabinets
Timer Manager

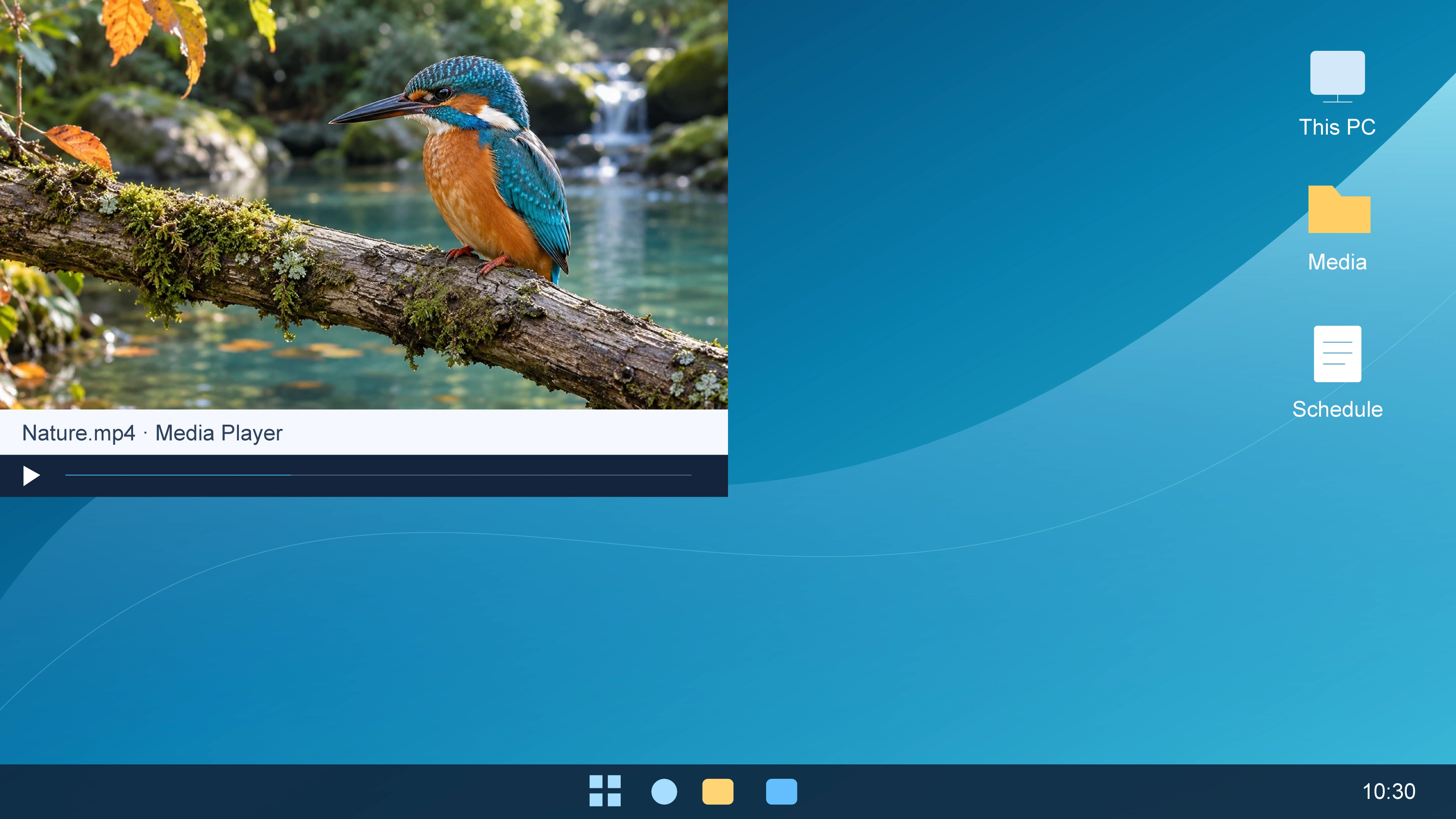

Scheduled Source Switching
Automatically Switch Input Sources
According To Your Schedule
18:30–19:00
Promotional Video
USB Player
Unique Brightness Adjustment Technology
Dim The Screen, Preserve The Detail.
Conventional Display Dimming Often Compresses The Dynamic Range And Degrades Grayscale Levels,
Causing Shadow Details To Disappear And Colors To Unnaturally Shift At Lower Brightness.
Input & Control Expansion
Optional Input Expansion: Wireless / HDMI / SDI · Select One
Input Expansion
Extended Wireless Projection
Instant Sharing · Dynamic Interaction
Input Expansion
Extended SDI Input & Loop
Broadcast-Grade · 3G SDI
Input Expansion
Extended One More HDMI Input
1080P
Control Expansion
Extended Remote Control
2.4G RF Remote · Control Freely
More Features
All-Channel
Seamless Switching
Signal Automatic
Detection
One Key Black
Or Freeze Screen
Partial / Full
Screen Switching
Audio Synchronous
Output
10 Mode Preset
And Recall
Real-Time
Storage Technology
Panel Key Lock
For More Detailed Information, Please Contact Us
Applications
More Services
More Than A Supplier
Your Trusted Long-Term Partner
Customization
OEM ODM IDM
Appearance
Functions
Interfaces
Branding
YOUR LOGO
Customization
Customization To Meet Your Specific Needs
Multi-Language Support
Multi-Language Selection
Free Solution Design
24/7Technical
Response
Response
Selection
Deployment
Full Technical Support
End-To-End Support From Selection To Deployment

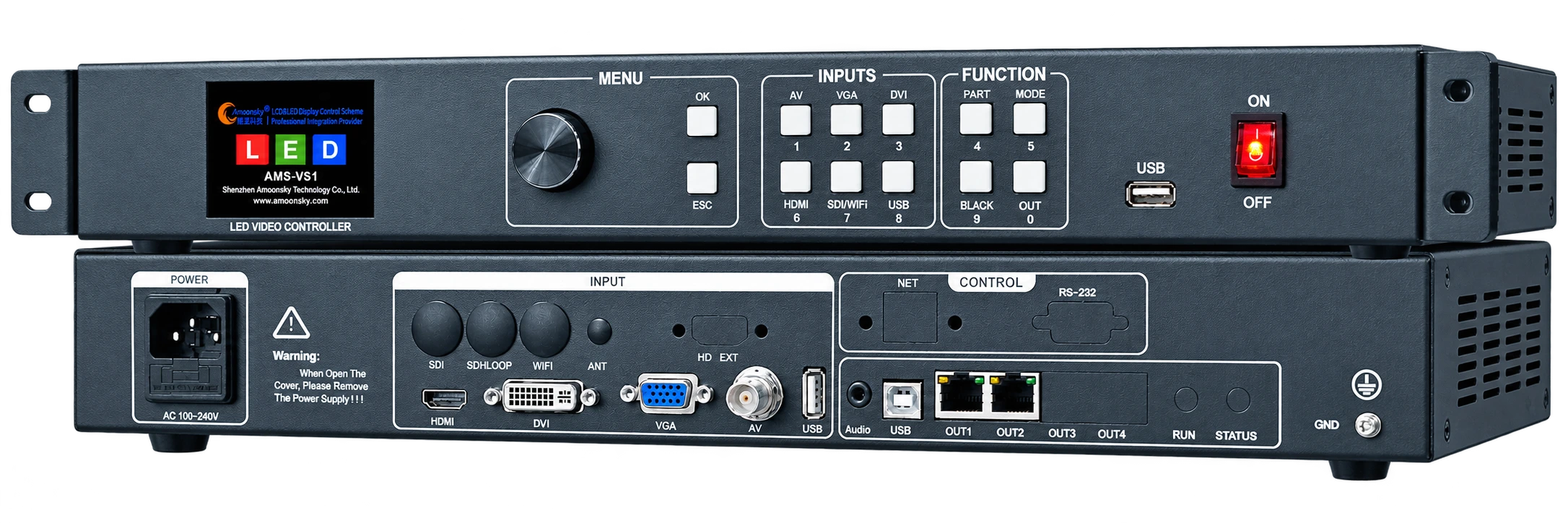

AMS‑VS1
| Port Specifications | |
| Standard Video Inputs | 1 × HDMI; 1 × DVI; 1 × VGA; 1 × AV / CVBS; 1 × USB. |
| Optional Input Expansion | Select One: Additional HDMI Input; SDI Input And Loop; Wi‑Fi Mirroring, IEEE 802.11n. |
| LED Outputs | 2 × RJ45 Gigabit Ethernet Ports; Up To 650,000 Pixels Per Port; Ethernet Port Redundancy Supported. Integrated Amoonsky Sending Card. |
| USB Ports | 1 × USB‑A For Picture And Video Playback; 1 × USB‑B For Sending Card Parameter Configuration. |
| Audio Output | 1 × 3.5 mm Audio Output, Left And Right Channels; Synchronized Audio And Video Output. |
| Performance | |
| Output Resolutions | 1024 × 768@60Hz; 1280 × 720@60Hz; 1280 × 1024@60Hz; 1600 × 1200@60Hz; 1920 × 1080@60Hz; 1920 × 1200@60Hz; 1920 × 1280@60Hz. |
| Video Processing And Presets | Analog Sampling: 12 Bit Per Color, 13.5 MHz For Video And 170 MHz For RGB. Digital Pixel Data: 8, 10 Or 12 Bit Per Channel. 10 User Presets; Enable Preset Save And Recall In The System Menu. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100–240 VAC, 50–60 Hz; All Rated Voltages Are On Average ±10%. |
| Operating Environment | Temperature: 0 To +50 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Storage Environment | Temperature: −40 To +70 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| MTBF And Warranty | MTBF: 30,000 Hours; Warranty: 1 Year. |
| Model And Packing Specifications | |
| Model And Optional Variants | AMS‑VS1: Standard Model; AMS‑VS1R: Remote Control; AMS‑VS1W: Wireless Projection; AMS‑VS1S: SDI Input And Loop; AMS‑VS1H: Additional HDMI Input; AMS‑VS1N: Web‑Version Upper Computer Control. |
| Dimensions, L × W × H | Machine: 485 × 330 × 65 mm; Packing: 535 × 435 × 120 mm. |
| Product And Package Weight | Product: 5.0 kg; Package: 6.0 kg. |

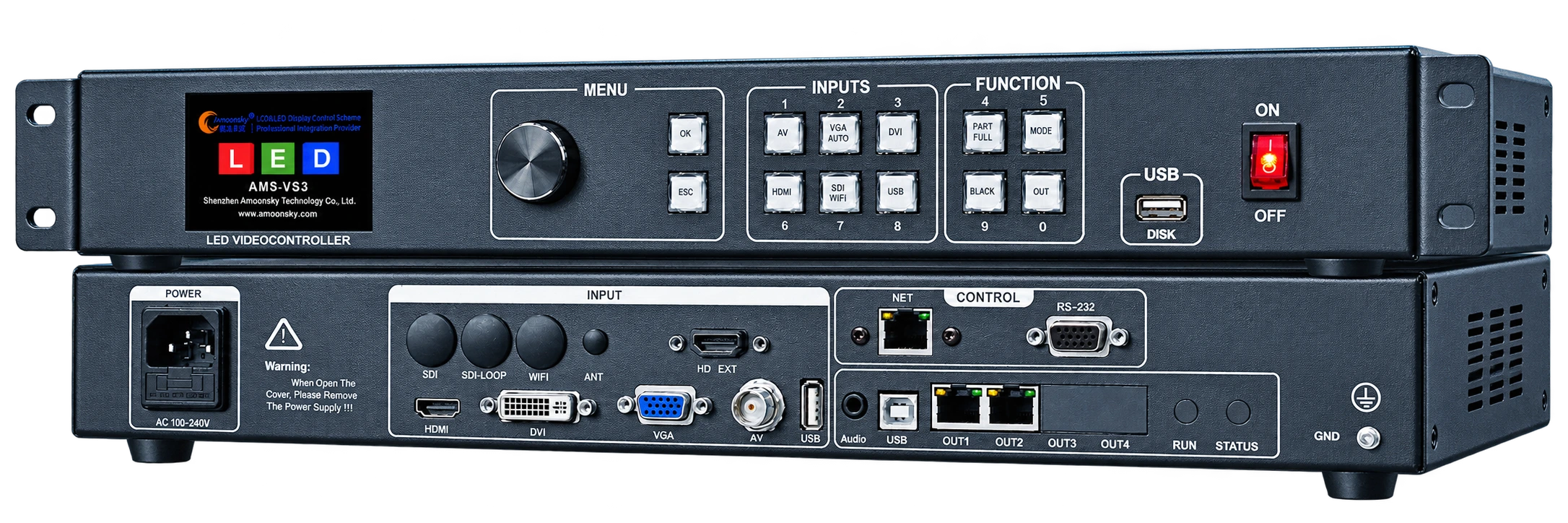

AMS‑VS3
| Port Specifications | |
| Standard Video Inputs | 1 × HDMI; 1 × DVI; 1 × VGA; 1 × AV / CVBS; 1 × USB. |
| Optional Input Expansion | Select One: Additional HDMI Input; SDI Input And Loop; Wi‑Fi Mirroring, IEEE 802.11n. |
| LED Outputs | 2 × RJ45 Gigabit Ethernet Ports; Up To 650,000 Pixels Per Port; Ethernet Port Redundancy Supported. Integrated Amoonsky Sending Card. |
| USB Ports | 1 × USB‑A For Picture And Video Playback; 1 × USB‑B For Sending Card Parameter Configuration. |
| Audio Output | 1 × 3.5 mm Audio Output, Left And Right Channels; Synchronized Audio And Video Output. |
| Performance | |
| Output Resolutions | 1024 × 768@60Hz; 1280 × 720@60Hz; 1280 × 1024@60Hz; 1600 × 1200@60Hz; 1920 × 1080@60Hz; 1920 × 1200@60Hz; 1920 × 1280@60Hz. |
| Video Processing And Presets | Analog Sampling: 12 Bit Per Color, 13.5 MHz For Video And 170 MHz For RGB. Digital Pixel Data: 8, 10 Or 12 Bit Per Channel. 10 User Presets; Enable Preset Save And Recall In The System Menu. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100–240 VAC, 50–60 Hz; All Rated Voltages Are On Average ±10%. |
| Operating Environment | Temperature: 0 To +50 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Storage Environment | Temperature: −40 To +70 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| MTBF And Warranty | MTBF: 30,000 Hours; Warranty: 1 Year. |
| Model And Packing Specifications | |
| Model And Optional Variants | AMS‑VS3: Standard Model; AMS‑VS3R: Remote Control; AMS‑VS3W: Wireless Projection; AMS‑VS3S: SDI Input And Loop; AMS‑VS3H: Additional HDMI Input; AMS‑VS3N: Web‑Version Upper Computer Control. |
| Dimensions, L × W × H | Machine: 485 × 330 × 65 mm; Packing: 535 × 435 × 120 mm. |
| Product And Package Weight | Product: 5.0 kg; Package: 6.0 kg. |

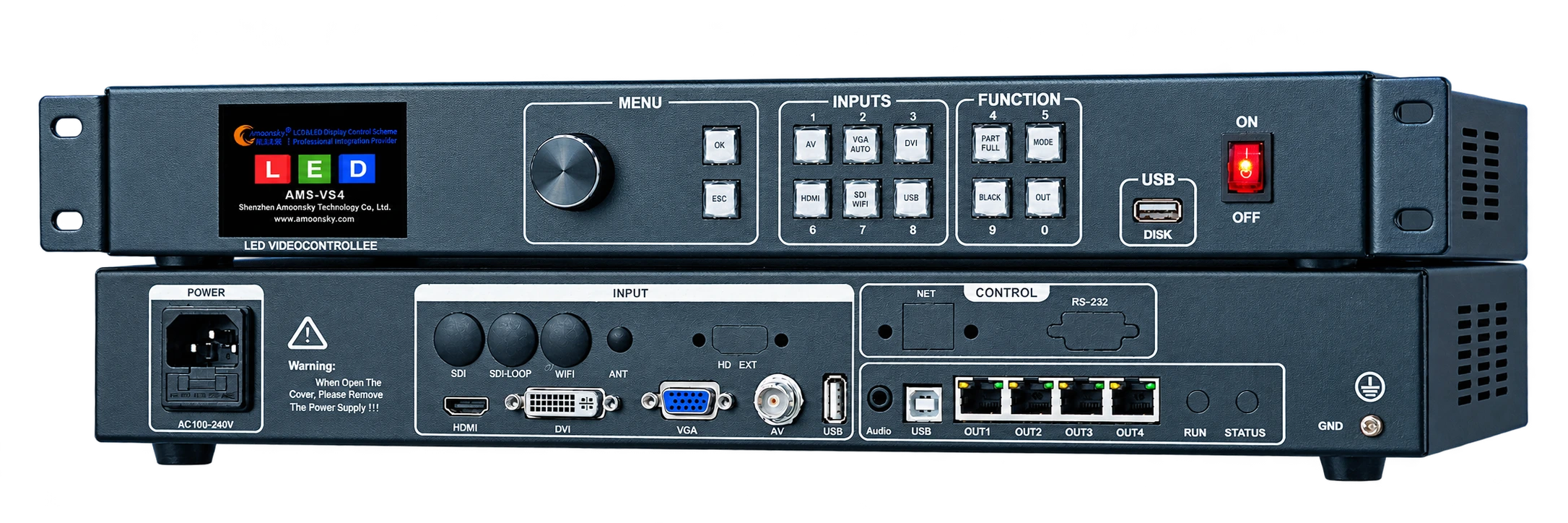

AMS‑VS4
| Port Specifications | |
| Standard Video Inputs | 1 × HDMI; 1 × DVI; 1 × VGA; 1 × AV / CVBS; 1 × USB. |
| Optional Input Expansion | Select One: Additional HDMI Input; SDI Input And Loop; Wi‑Fi Mirroring, IEEE 802.11n. |
| LED Outputs | 4 × RJ45 Gigabit Ethernet Ports; Up To 650,000 Pixels Per Port; Ethernet Port Redundancy Supported. Sending Card Options: Linsn TS902 / AMS‑S4. |
| USB Ports | 1 × USB‑A For Picture And Video Playback; 1 × USB‑B For Sending Card Parameter Configuration. |
| Audio Output | 1 × 3.5 mm Audio Output, Left And Right Channels; Synchronized Audio And Video Output. |
| Performance | |
| Output Resolutions | 1024 × 768@60Hz; 1280 × 720@60Hz; 1280 × 1024@60Hz; 1600 × 1200@60Hz; 1920 × 1080@60Hz; 1920 × 1200@60Hz; 1920 × 1280@60Hz. 3840 × 640@60Hz; Custom Resolution Supported. |
| Video Processing And Presets | Analog Sampling: 12 Bit Per Color, 13.5 MHz For Video And 170 MHz For RGB. Digital Pixel Data: 8, 10 Or 12 Bit Per Channel. 10 User Presets; Enable Preset Save And Recall In The System Menu. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100–240 VAC, 50–60 Hz; All Rated Voltages Are On Average ±10%. |
| Operating Environment | Temperature: 0 To +50 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Storage Environment | Temperature: −40 To +70 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| MTBF And Warranty | MTBF: 30,000 Hours; Warranty: 1 Year. |
| Model And Packing Specifications | |
| Model And Optional Variants | AMS‑VS4: Standard Model; AMS‑VS4R: Remote Control; AMS‑VS4W: Wireless Projection; AMS‑VS4S: SDI Input And Loop; AMS‑VS4H: Additional HDMI Input; AMS‑VS4N: Web‑Version Upper Computer Control. |
| Dimensions, L × W × H | Machine: 485 × 330 × 65 mm; Packing: 535 × 435 × 120 mm. |
| Product And Package Weight | Product: 5.0 kg; Package: 6.0 kg. |
