UHD Video Matrix 16x16
UHD Video Matrix 16x16
AMS-MC4K_16X16
UHD Video Matrix
4K@60Hz · 16 Inputs · 16 Outputs
Video WallMatrix Routing · Multi-Window Display
Drag Across Screens To Try
Opening: one image, a video wall, multiple sources.
AMS-MC4K Series Video Matrix
FPGA Architecture · Modular Design · Flexible Control · High Performance
The AMS-MC4K Series Is A High-Performance Video Matrix Built On An FPGA-Based Architecture With A Modular Design.
Its Card-Based Configuration Allows Flexible Input/Output Card Selection To Meet Diverse Video Access Requirements.
The System Supports Hot-Swappable I/O Cards And Dual-Controller Hot Backup, Ensuring Stable And Reliable Operation.
It Is Widely Used In Energy And Power, Water Conservancy And Hydrology, Meteorology And Earthquake Monitoring, Enterprise Management, Metallurgy And Steel, Banking And Finance, Transportation, Production Scheduling, Broadcasting And Television, Education And Research, And Other Industries.
High-Performance Main Chip

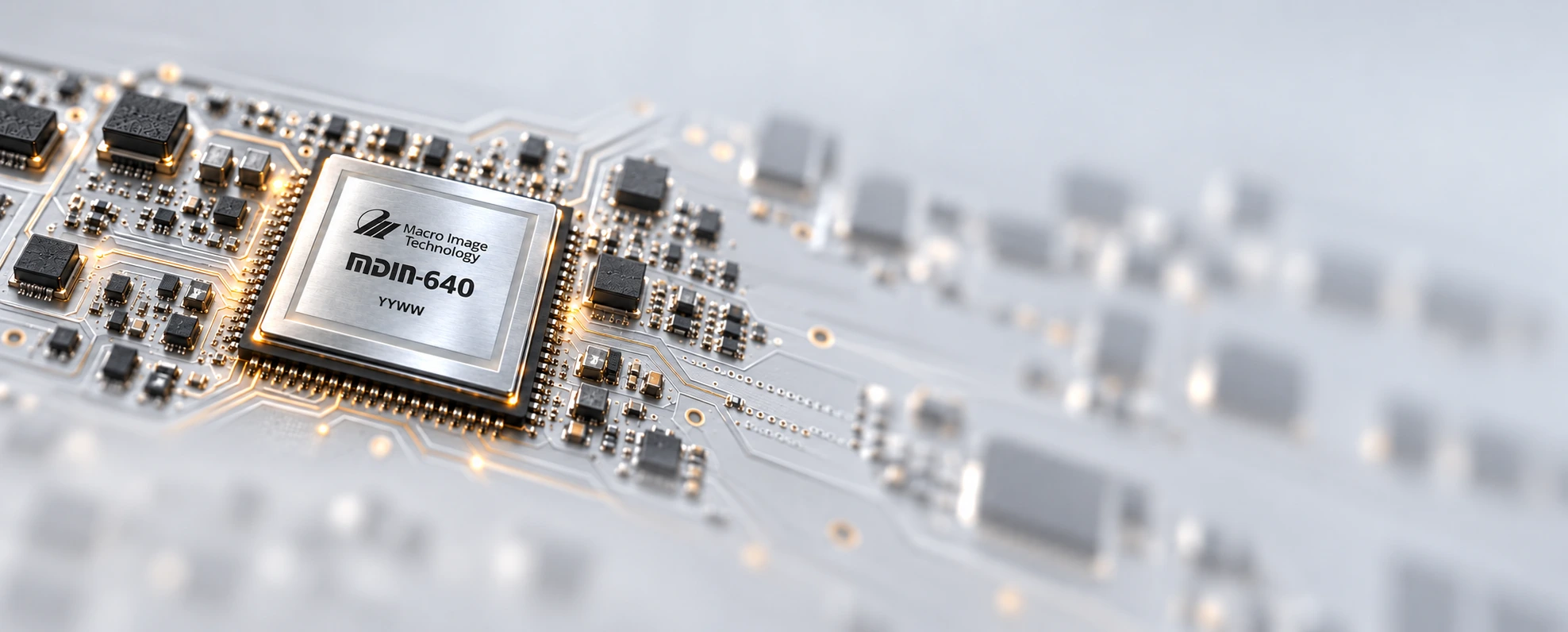

Macro Image Technology MDIN 640
The AMS-MC4K Series Adopts A Highly Integrated MDIN-640 SoC Core Architecture, With Built-In Independent SDRAM And Four Channel Scaling Engine, Providing Stable And Powerful 4K Ultra High Definition Image Processing Capabilities For Professional Audio&Visual Systems.
UHD Resolution · Ultimate Experience
4K · 3840×2160@60Hz
Image Enhancement
Black/White Level Extension Algorithm
Engineered For UHD Video Matrix Processing, These Algorithms Deliver Clearer, More Lifelike Visuals With Precise Detail, Sharp Edges, And Richer Contrast.
Leveraging Programmable Luminance Range Technology, It Dynamically Expands The Black And White Levels Of The Image. This Significantly Boosts Dynamic Contrast And Spatial Depth, Delivering A Richly Layered And Visually Striking Experience For Large-Screen Displays.
Color Keying
Flexible Chroma Key Compositing For Professional Video&Audio
The AMS-MC4K Series Supports Color Keying, Which Can Be Configured As Solid Chroma Key, Subtitle/Logo, Or Keying + Subtitle Mode Based On Actual Requirements. It Also Supports Pattern Keying For Keying According To Specific Shapes.
Keying Is Ideal For Overlaying Background Video With Key Sources Such As A Newscaster. The Performance Of The Keying Filter Directly Affects The Image Quality Around The Border Area Between The Background Video And The Overlaid Key Source. With Advanced Keying Filter Processing, The AMS-MC4K Series Ensures Smooth, Clean, And Broadcast-Quality Edge Transitions.
Up To 4 Keying Layers Per Output Card
BNR (Block Noise Reduction) Algorithm
Pure Visuals · Zero Mosaic Artifacts
Targeted 8x8 Grid Elimination

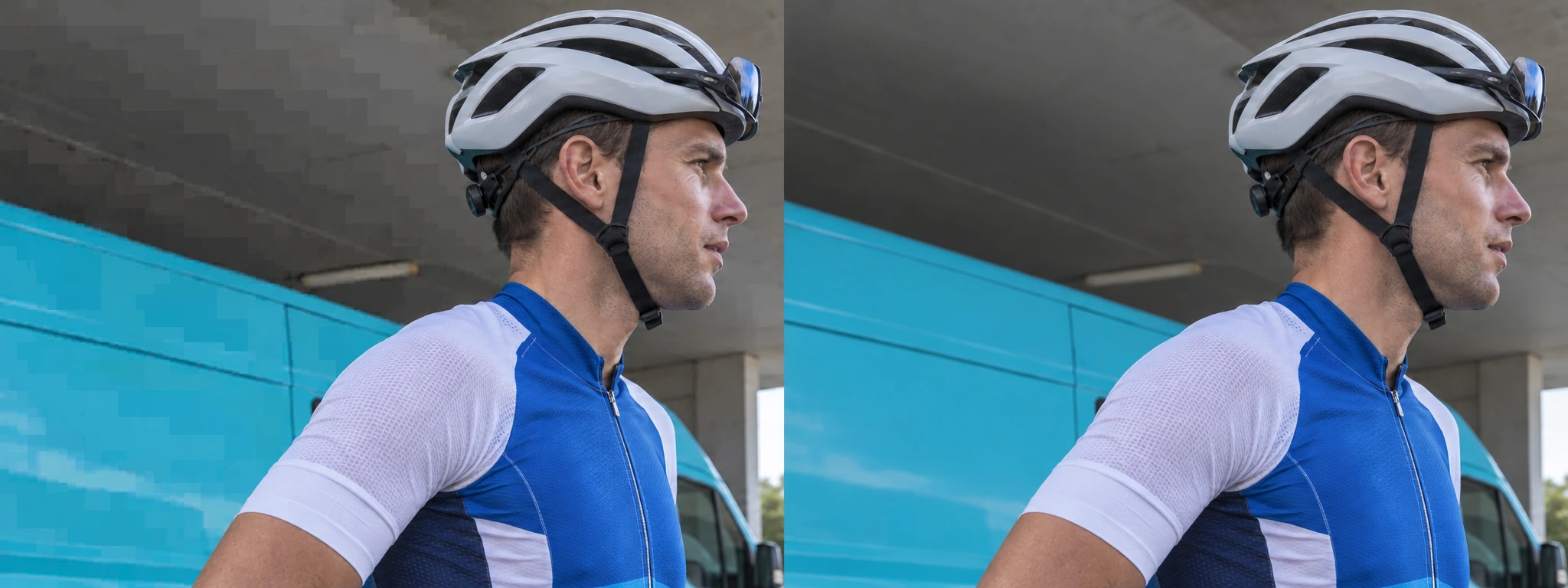

Specifically Neutralizes Block Boundary Artifacts From Compressed Video Sources (H.264/MPEG).
Non-Linear Smart Filtering
Smooths Out Mosaic Lines While Fully Preserving Original Image Detail And Sharpness.
Flawless Large-Screen Scaling
Ensures Compressed Streams Look Clean, Smooth, And Broadcast-Ready On Giant LED & LCD Displays.

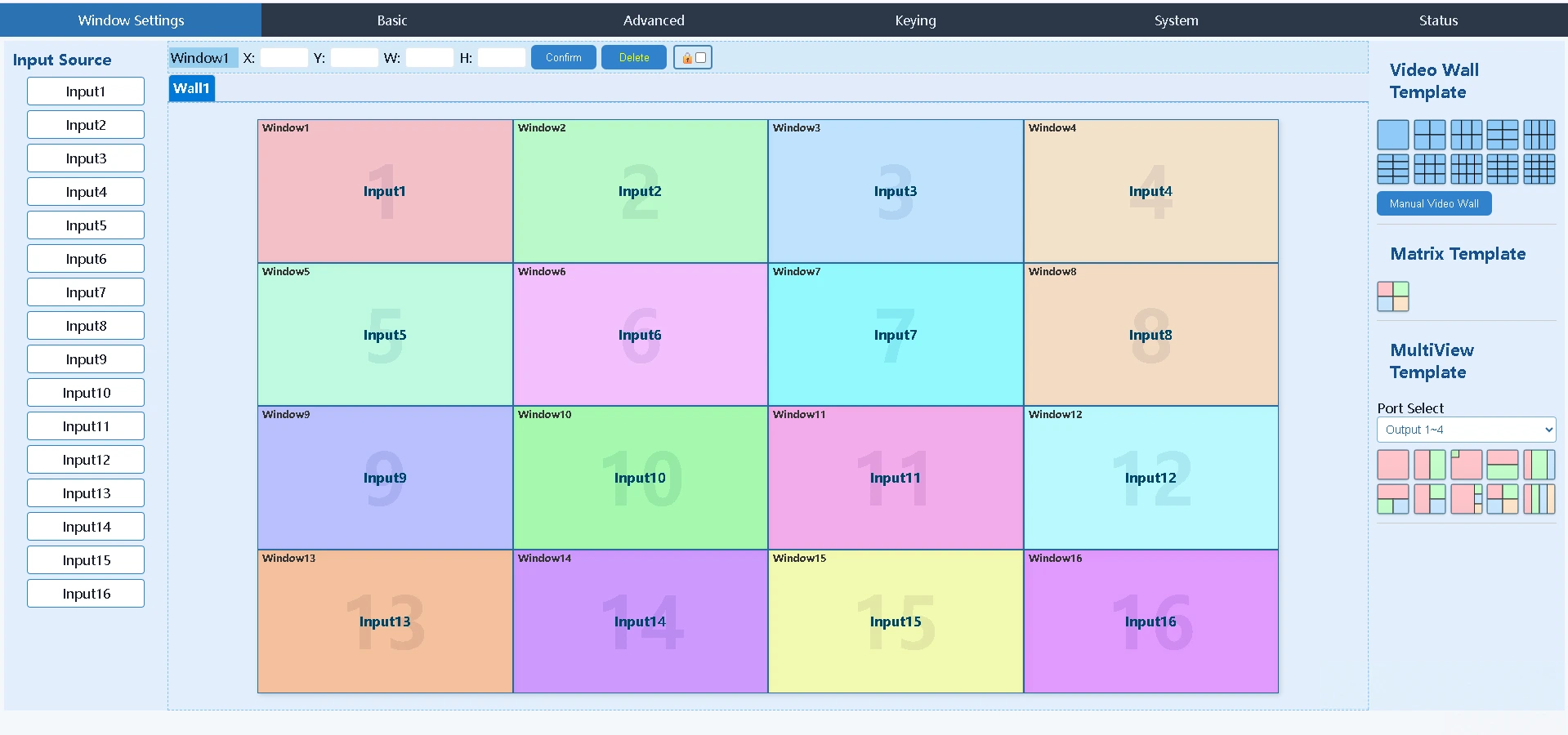

Web GUI Control
Central Control System Integration
Provides A Dedicated Control Protocol To Ensure Seamless Integration With Industry-Leading Control Systems Such As Crestron, AMX, And Control4 For Effortless Project Deployment.
Multilingual User Interface
Features Built-In Multilingual Support — Including English, Simplified/Traditional Chinese, Spanish, Portuguese, Russian, Japanese, Korean, Thai, And Vietnamese — Making It Easily Adaptable To Diverse Global Market Demands.
More Features
11 Built-In Test Patterns
Display Check
Switch Between Input And Output Channels Without Black-Screen Interruptions, Keeping On-Screen Presentations Continuous.
Select From 11 Built-In Test Patterns To Check Your Displays During Installation And Setup.
Save Your Settings In 10 User Modes And Recall Them From The Front Panel Or Menu For Repeat Setups.
Assign The BLACK Key To Black Or Freeze Mode. Press It To Blank All Outputs Or Hold The Last Frame, Then Press Again To Restore The Display.
Schedule A Mode, Source Or Black-Screen Change For A Chosen Time.
Select Analog Or HDMI Audio For Each Input. Output Audio Follows The Selected Source, With 16 Analog Audio Inputs And 16 Outputs.
Use On-Screen Status Information To Check The Current Display State While Viewing The Output.
The Input Indicator Stays Lit When A Valid Input Signal Is Detected, Helping You Check Source Connections.
Supports 3D, HDR And HDCP For Compatible Video Sources And Displays.
More Products

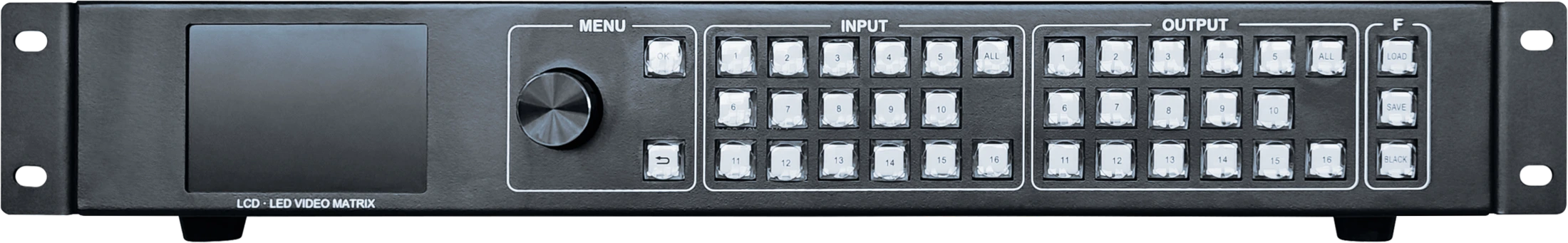

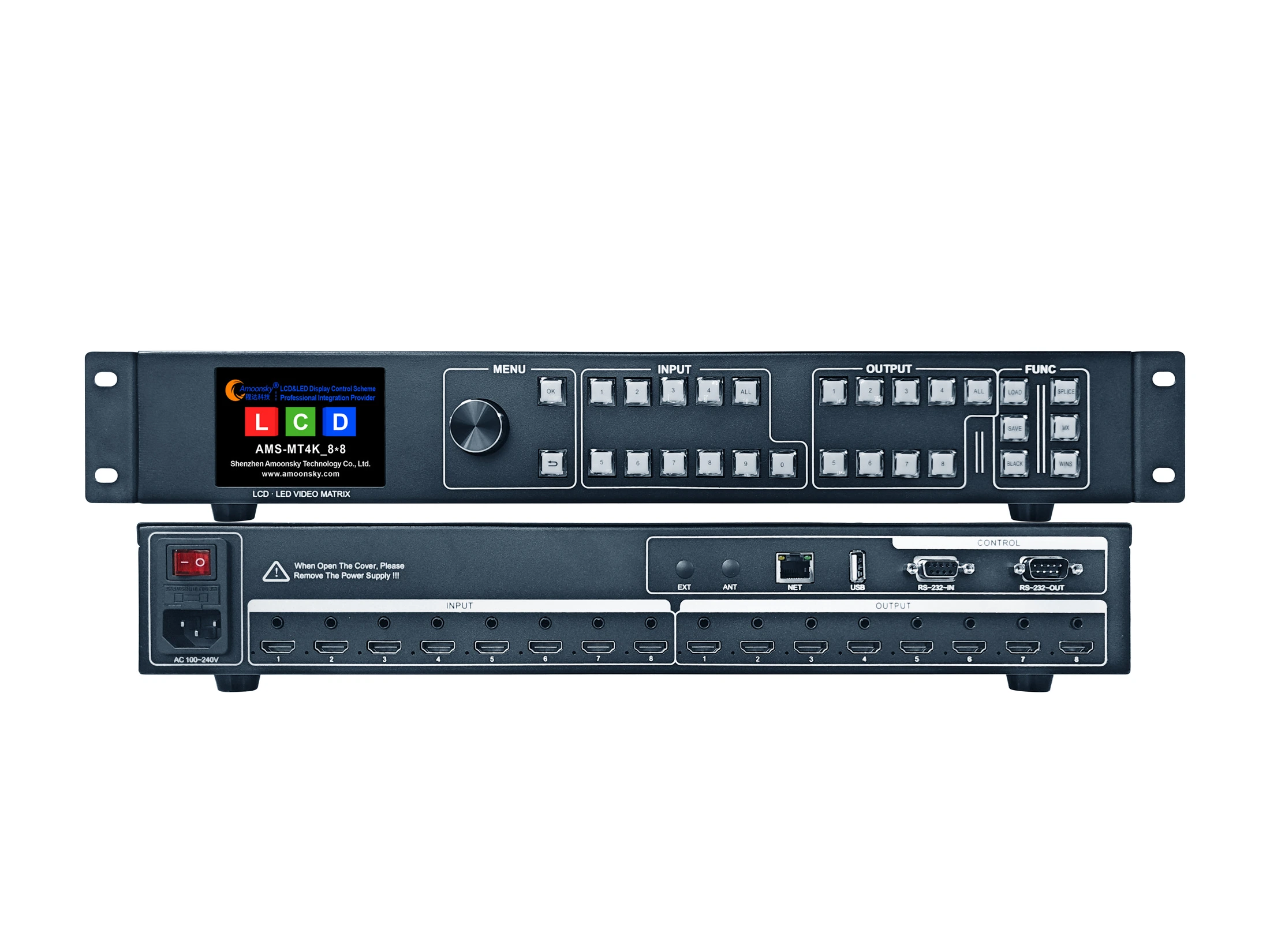

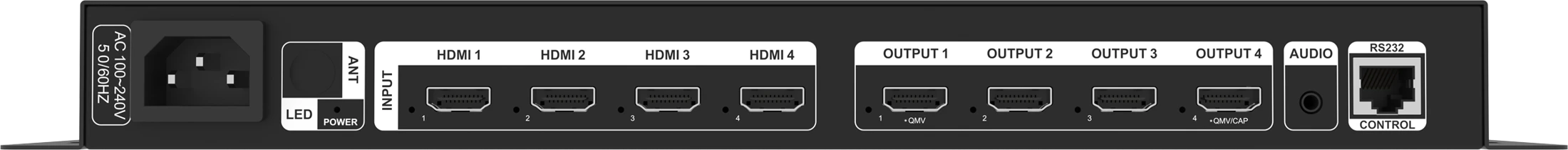

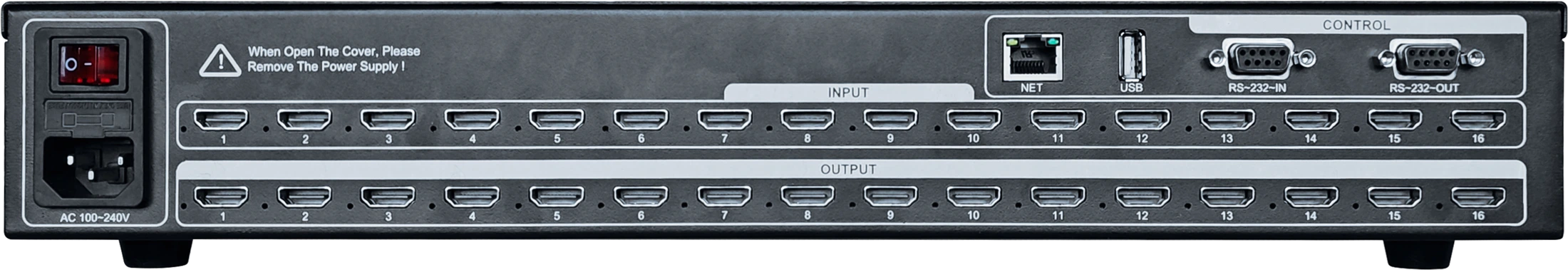

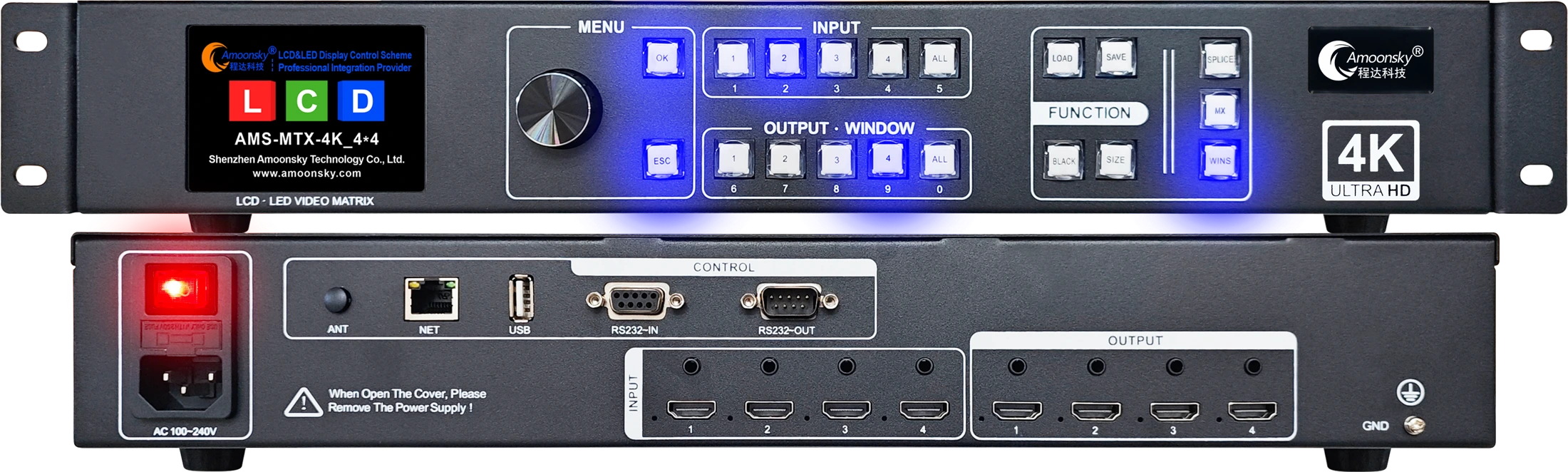

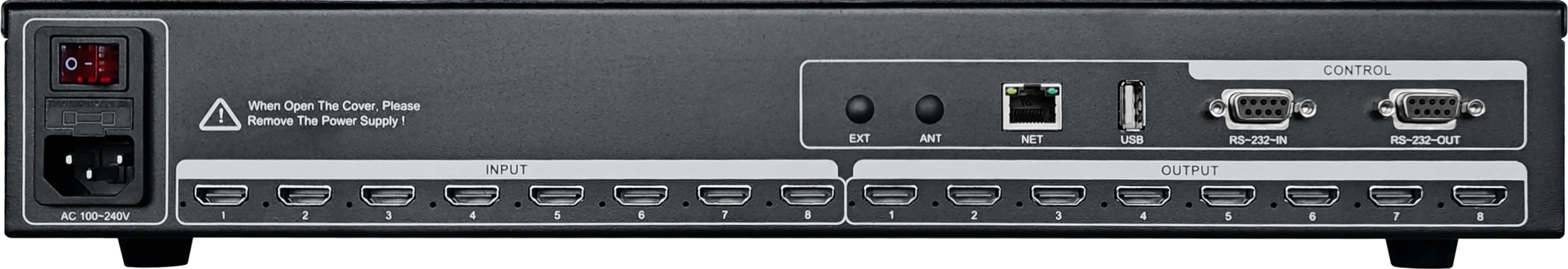

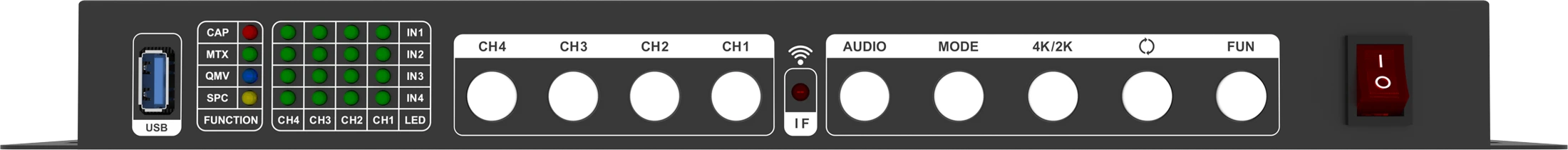

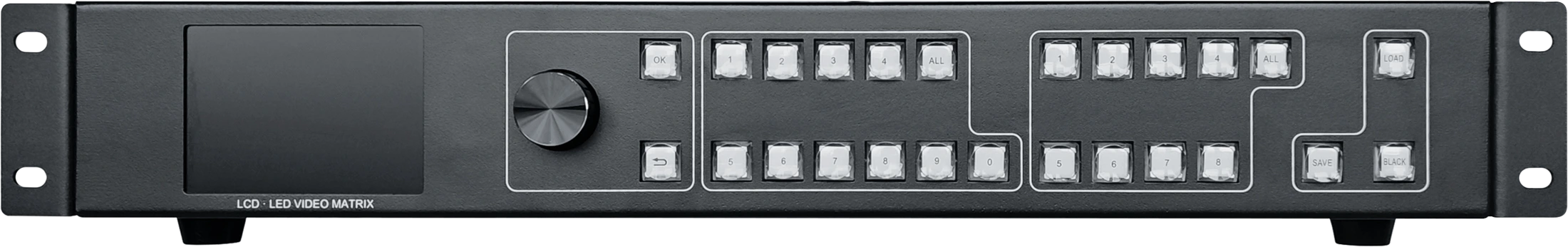

Explore The AMS-MT4K Series And The AMS-MTX Series

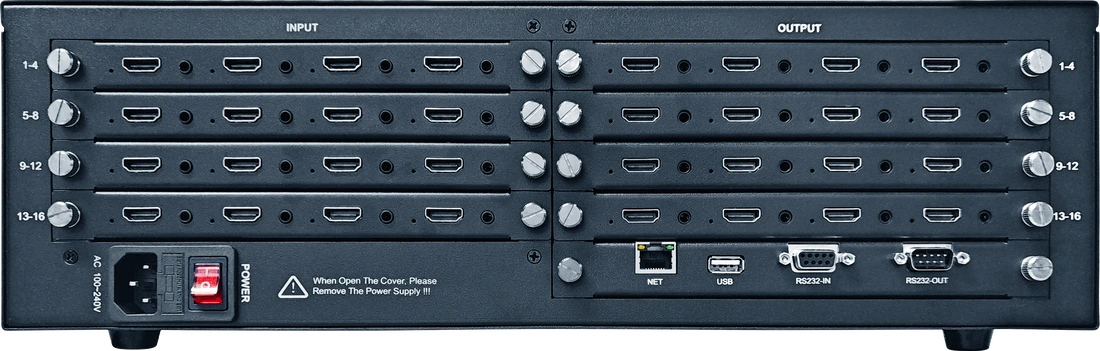

| Port Specifications | |
| HDMI Input And Output | 16 HDMI Inputs And 16 HDMI Outputs. |
| NET Ethernet Port | Network Port For Web-Based Control. |
| USB Port | USB Type-A Port. |
| RS232 Serial Ports | RS232-IN And RS232-OUT. |
| Analog Audio | 16 Analog Audio Inputs And 16 Analog Audio Outputs. |
| Operating Modes | |
| Display Modes | Video Wall, Matrix Routing And Multi-Window Display. |
| Switching | Seamless Switching. |
| Video Specifications | |
| HDMI Version | HDMI 2.0. |
| Maximum Resolution | 4096 × 2160@60Hz. |
| Minimum Resolution | 128 × 128@60Hz. |
| Maximum Transmission Rate | 18Gbps. |
| General Specifications | |
| Power Supply | AC 100–240V, 50/60Hz. |

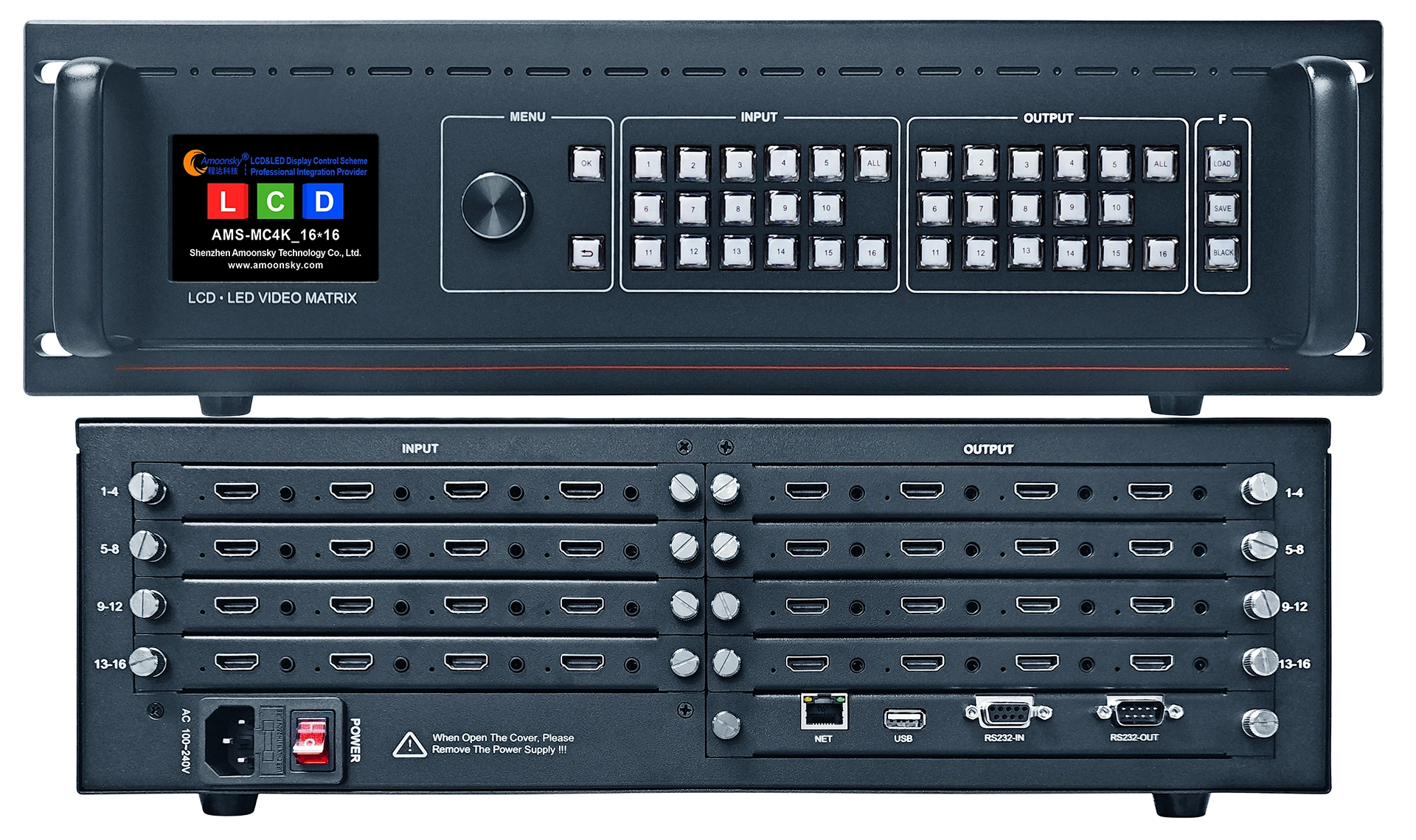

| Model | AMS-MC4K_16X16 |
| Dimensions | 485 × 385 × 145mm. |
