PPT Page Flipper And Timer (CUE_Plus)
PPT Page Flipper And Timer (CUE_Plus)
Control Every Stage with Precision
CUE_Plus Presentation System
Integrated multi-computer wireless remote control, professional smart timing, and touch-screen operation. Engineered specifically for high-end summits, broadcast studios, major product launches, and professional control rooms.

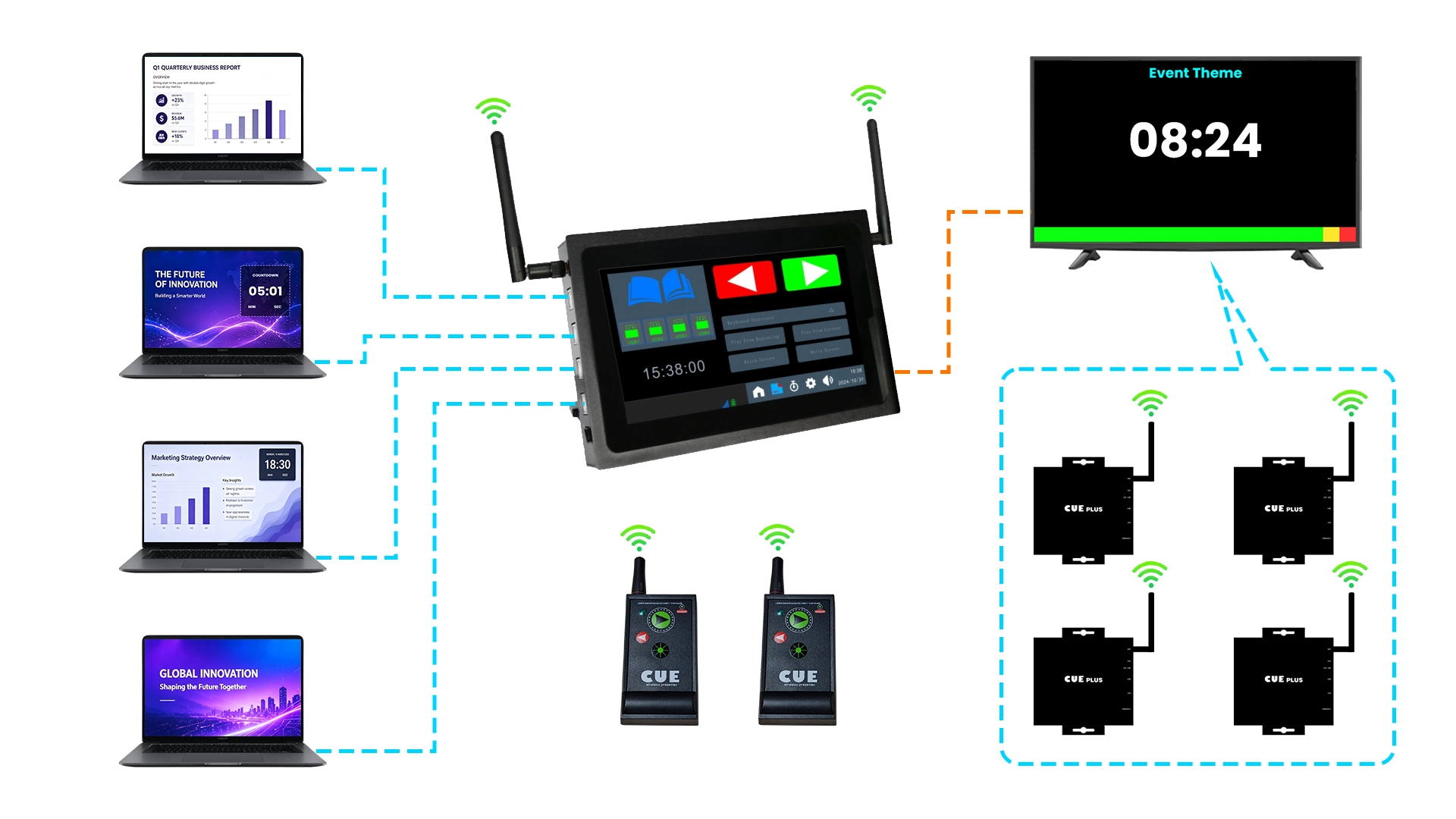

Connection Diagram
Product Application Connection
Four Core Advantages Defining Industry Standards
Combining state-of-the-art wireless radio frequency with ergonomic industrial design to solve all large-scale presentation pain points.

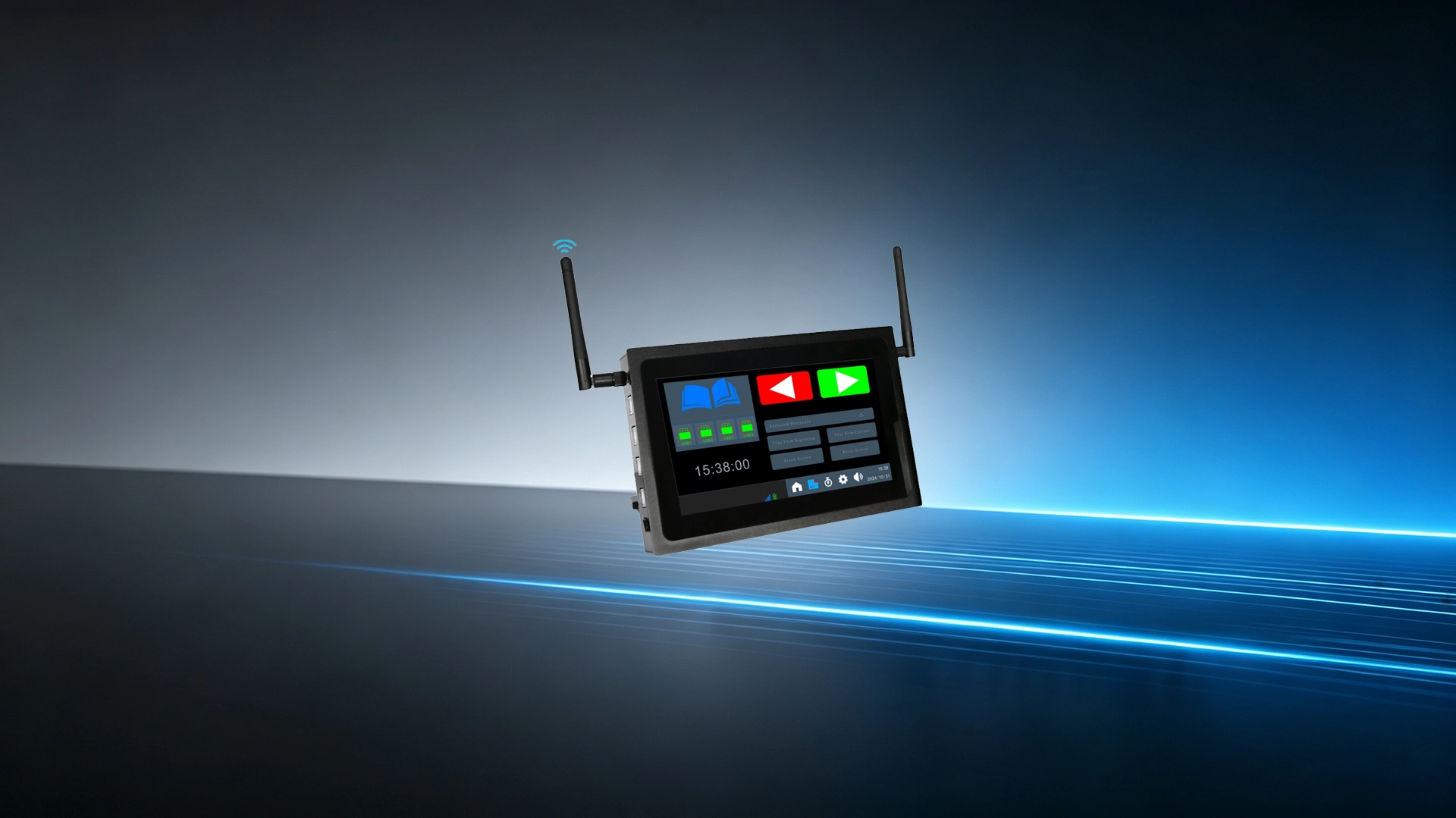

Seamless 4-PC Control
Equipped with 4 USB-B ports, simultaneously connecting up to 4 computers (supporting PowerPoint, Keynote, WPS, and Google Slides). Main and backup systems switch instantly with zero latency, completely eliminating screen blackouts and crashes.
Ultra-Long Range RF
Utilizes highly anti-interfering 433MHz professional RF frequency. Delivers reliable 100 meters indoor coverage and up to 300 meters in open spaces, ensuring rock-solid signal stability in complex venue environments.

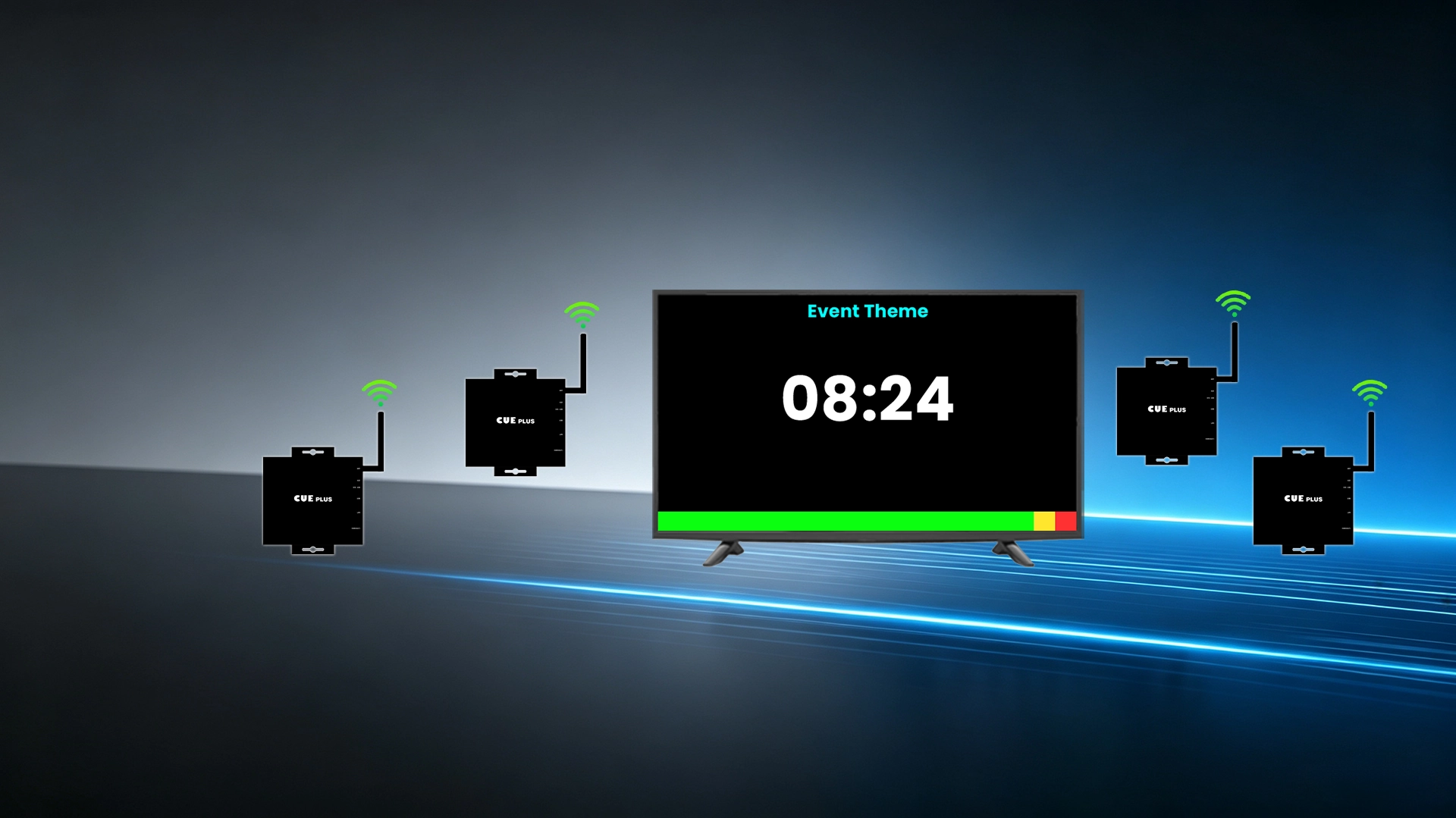

Professional Smart Timing
Features countdown, count-up, and real-time clock (12H/24H). Includes wrap-up color alerts and audio chimes, with HD output for large screen display or wireless timer module extension.

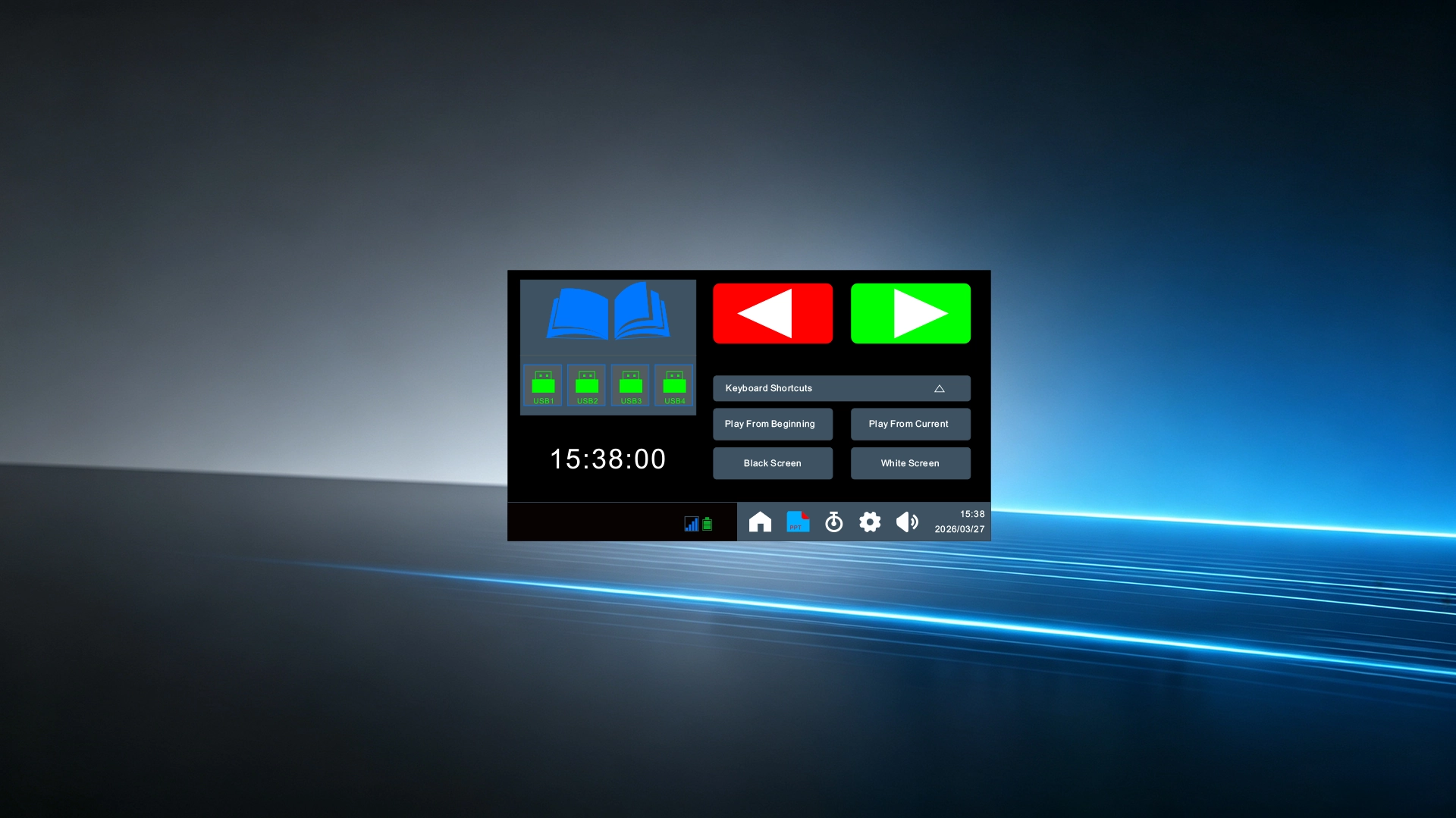

Intelligent Touch Interface
The host features a high-sensitivity LCD touch screen with an intuitive layout. Real-time tracking of presentation progress and system status eliminates blind operation, giving directors full situational awareness.
Versatile Application Scenarios
From corporate boardrooms to massive live stages, CUE_Plus empowers every crucial moment.
Tailored for board meetings, executive briefings, and business roadshows. Presenters command large displays with confidence using green laser pointers, ensuring professional, flawless execution backed by dual-PC redundancy.
Designed for large plenary halls. 300-meter long-range wireless control and multi-computer switching capabilities ensure seamless handovers among keynote speakers and zero-error large-screen countdown management.
For high-stakes spotlight moments, multi-computer media redundancy and large-screen countdown visual alerts help presenters master their timing perfectly and drive the audience to peak engagement.
Allows instructors to roam freely and interact deeply with audiences in classrooms or auditoriums. Clear countdown displays help science-driven time allocation for lectures and Q&A sessions.
Provides stable, silent script and multimedia page-turning control within solemn sanctuaries and large assemblies, maintaining a focused, peaceful, and well-organized environment.
Engineered for show directors (PCO). Supporting RJ45 network control and HD port output for synchronized timecode, it handles the rigorous collaborative challenges of lighting, audio, and big-screen cueing.
Technical Specifications
Official Standards by Shenzhen Amoonsky Technology Co., Ltd.
| Host Data Interfaces | USB-B x4 (PC connections), HD Port Type-A x1 (LCD/LED timer display), RJ45 x1 (Network control), USB-A x1 (Firmware update), RST Reset Button |
|---|---|
| Wireless & RF | 433 MHz band, dual SMA female antenna ports, 100m indoor / 300m open-space remote range |
| Power & Build | Host Power Supply: DC 12V 1A/2A; Rugged metal enclosure (robust durability and anti-electromagnetic interference) |
| Remote Controllers | Includes 2 transmitters; 520nm green laser (CR123A 3V battery); remote control buttons powered by CR2032 3V battery |
| Operating Environment | Operating Temperature: 0°C ~ +60°C; Storage Temperature: -40°C ~ +80°C (Humidity 10%~90% non-condensing) |
| Dimensions & Weight | Dimensions: 200mm (L) x 133mm (W) x 45mm (H); Total Gross Weight approx. 4.0 Kg |
| Main-unit Specifications | |
| USB（PPT） | USB-B * 4 , Connect To The Computer; |
| Antenna | Device_SMA Female * 2 , Antenna_SMA Male; -- (433 MHz) |
| HD Port | Type_A * 1, Timer Output Port, Connect LCD Screen; |
| LAN | RJ45 *1 , Network Control; |
| USB | USB_A *1, Program Upgrade For The Device; |
| RST | Reset Button, Press Can Restore Factory Settings; |
| Power Supply | DC 12V_1A / 2A ; |
| Material | Metal Case ; |
| Remote Specifications | |
| Antenna | 433 MHz |
| Power Supply | Laser -- CR123A_ 3V , Laser_520nm_Green ; Remote_CR2032_3V ; |
| Material | Plastic Material ; |
| * Wireless Timer Specifications (Optional) | |
| Antenna | Device_SMA Female * 1 , Antenna_SMA Male; -- (433 MHz) |
| HD Port | Type_A * 1, Timer Output Port, Connect LCD Screen; |
| LAN | RJ45 *1 , Network Control; |
| USB | USB_A *1, Program Upgrade For The Device; |
| RST | Reset Button, Press Can Restore Factory Settings; |
| Power Supply | DC 12V_1A / 2A ; |
| Material | Metal Case ; |
| General Specifications | |
| Temperature | Storage : T: -40℃ ~ +80℃ 、 H: 10% ~ 90%, Non-condensing; Working: T: 0 ℃ ~ +60 ℃ 、 H: 10% ~ 90%, Non-condensing; |
| Machine Size | 200mm (Length) x 133 mm (Width) x 45mm (Height) |
| Packing Size | 365mm(Length) x 315 mm (Width) x 180mm (Height) |
| Product Weight | Gross Weight : 4.0Kg ; |
| Package Weight | Volume Weight : 5.0Kg ; |
| Warranty | 1 Year; Note: All Rated Voltages Are On Average ±10%; |
| Packing List | |
| Standard | Main-Unit *1, Remote *2, Power Supply * 1; USB Cable * 4, Antenna * 1, Manual * 1 ; |
| Model | Description | P/N |
|---|---|---|
| CUE_Plus | Standard Model | PN20260209A |
