Input
- HDMI
- DVI
- VGA
- AV
- USB

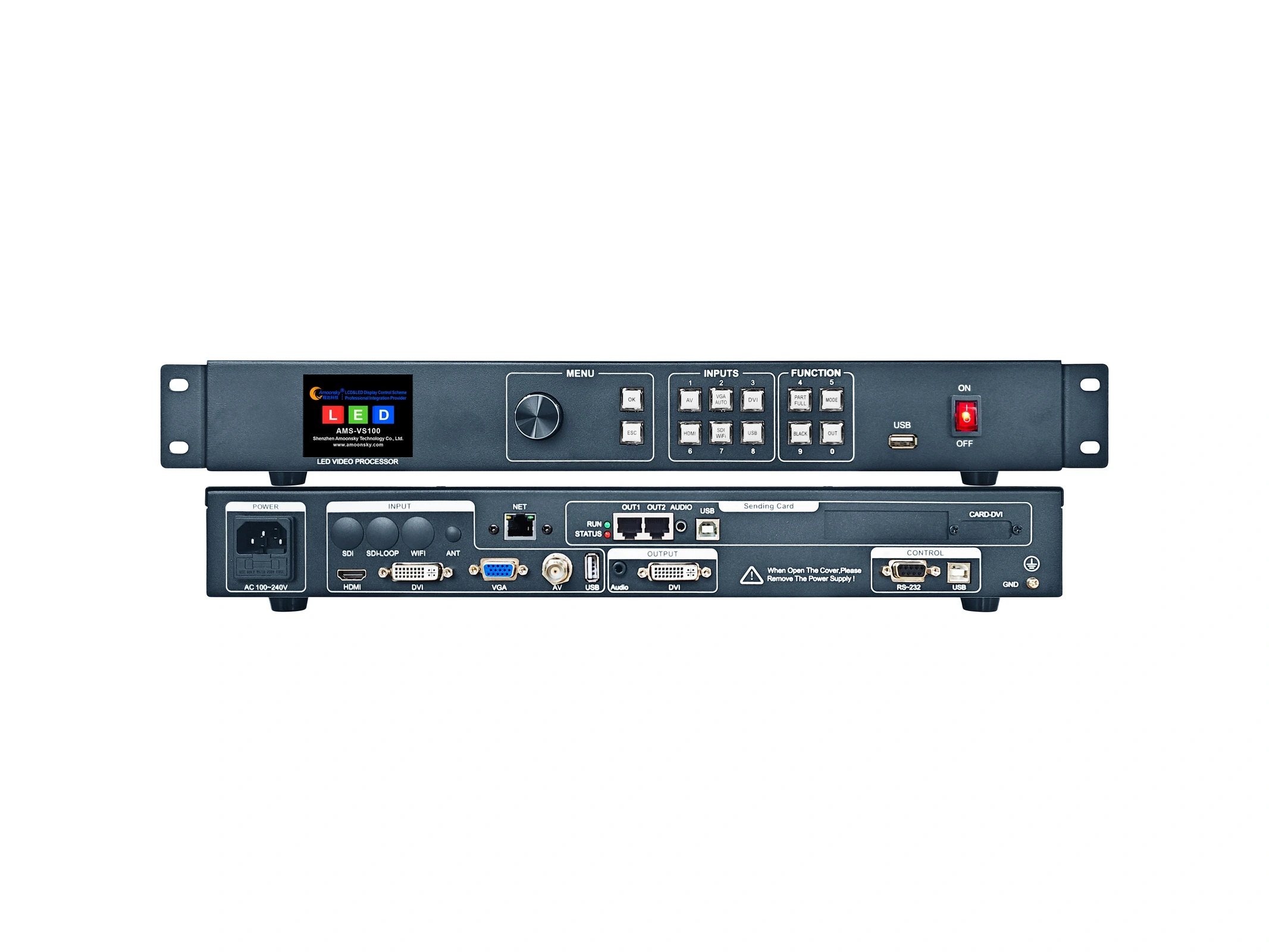

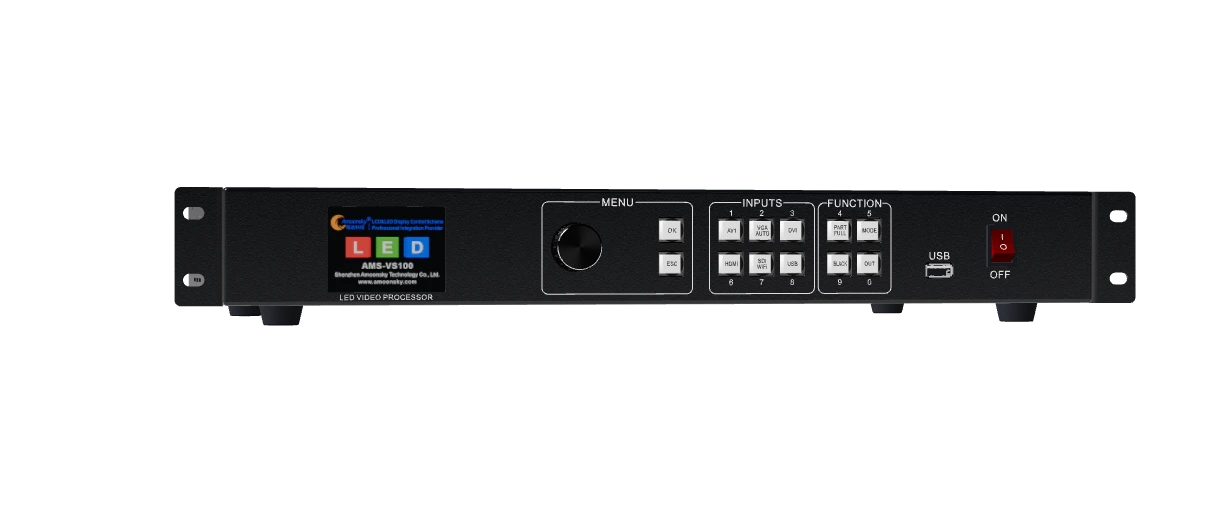

VS100 LED Display Controller
VS100 LED Display Controller
LED Display Controller
VS100
All-In-OneUSB Player · Controller · Processor
Drag To Rotate
Optional Built-In LED Sending CardNovastar · Linsn · Huidu · Amoonsky
Loading 3D
Output
- RJ45 OUT1
- RJ45 OUT2
VS100: 2× RJ45
Expansion Features
SDI Input & LoopWi-Fi Mirroring
Control Methods
IR RemoteUpper Computer Control
MStar
Core Engine
Powered by Industrial-Grade Taiwan MStar Video SoC
Driven by the powerful TSUMV53 chip, this series features a pure hardware SoC architecture integrated with the MediaTek ACE-6 broadcast-grade color engine. It delivers rich color accuracy, ultra-sharp contrast, and peak visual clarity across fine-pitch LED screens and commercial LED displays.
Thanks to the in-package high-speed DRAM integration, the signal processing path is optimized to cut latency and boost motherboard EMI resistance. This delivers pristine image distribution to each connected LED panel and individual LED module. From high-noise live event stages to 24/7 control room LED screen installations, this core engine ensures robust, uninterrupted operational stability and top-tier display performance.
Part | Full Display Switching
Full Screen For Impact · Part Screen For Precision
PART Selected. The Upper-Left Quarter Fills The LED Display.
Input & Control Expansion
Optional Wi-Fi And SDI Expansion · Remote Control
Input Expansion
Extended Wireless Projection
Instant Sharing · Dynamic Interaction
Input Expansion
Extended SDI Input & Loop
Broadcast-Grade · 3G SDI
Control Expansion
Extended Remote Control
2.4G RF Remote · Control Freely
Motion Compensation Algorithm (MEMC)
Multi Directional Edge Preserving Algorthm
Smooth Edges, Clear Details
Edge Detail Comparison
The Deinterlacing Engine Employs A Multi-Directional Edge-Preserving Algorithm. It Detects Edges And Applies Optimal Interpolation To Smooth Them, Eliminating Jaggies And Delivering Natural, Clear Images.
Built-in Sending Card
MSD300-1 · TS921
VS100
TS921 or MSD300-1
Select the corresponding receiving card based on your actual needs, and confirm with our sales team before shipment.
Timer Manager
Automatic Scene Switching On Schedule
18:30–19:00
Promotional Video
USB Player
Unique Brightness Adjustment Technology
Dim The Screen, Preserve The Detail.
Conventional Display Dimming Often Compresses The Dynamic Range And Degrades Grayscale Levels, Causing Shadow Details To Disappear And Colors To Unnaturally Shift At Lower Brightness.
Powered By A Proprietary Built-In Brightness Algorithm, The VS Series Maintains Full Grayscale Retention, Rich Image Layering, And Exact Color Fidelity Across All Brightness Levels. By Preserving True-To-Life Depth Without Sacrificing Color Accuracy, It Delivers Crisp, Natural, And Faithful Visuals Even In Low-Light Environments.
More Features
All-Channel
Seamless Switching
Signal Automatic
Detection
One Key Black
Or Freeze Screen
Partial / Full
Screen Switching
Audio Synchronous
Output
10 Mode Preset
And Recall
Real-Time
Storage Technology
Panel Key Lock
For More Detailed Information, Please Contact Us
Applications
More Products
Explore More Display Solutions
| Port Specifications | |
| Video Inputs | 1 x HDMI; 1 x DVI; 1 x VGA; 1 x AV; 1 x USB For Picture And Video Playback. |
| DVI Output | 1 x DVI Program Output; 1920 x 1080@60Hz Output Supported. |
| LED Sending Output | 2 x RJ45 Gigabit Ethernet Ports In The Shown Configuration; Built-In Sending Card Optional. Confirm Sending Card And Receiving‑Card Configuration Before Shipment. |
| USB Ports | USB‑A For USB Playback; USB‑B For Sending Card Parameter Settings. |
| Control And Expansion | RS232 And USB Computer Control; Optional Remote Control, Wi‑Fi Projection, And SDI Input With Loop Output. |
| Performance | |
| Switching And Display Control | All‑Channel Seamless Switching; Audio Synchronous Output; Partial / Full Screen Switching; One‑Key Black Or Freeze; Panel Key Lock. |
| Presets And Memory | 10 User Presets For Save And Recall; Automatic Parameter Storage In EEPROM. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100‑240V AC, 50‑60Hz. |
| Operating Environment | 0°C To +50°C; 10% To 90% Relative Humidity, Non‑Condensing. |
| Storage Environment | -40°C To +70°C; 10% To 90% Relative Humidity, Non‑Condensing. |
| Reliability And Warranty | MTBF: 30,000 Hours; Warranty: 1 Year. Rated Voltages: Average ±10%. |
| Model And Physical Specifications | |
| Model | Amoonsky AMS‑VS100; Remote, Wi‑Fi And SDI Expansion Depend On The Ordered Configuration. |
| Dimensions | Machine: 485 x 320 x 69 mm; Packing: 515 x 375 x 100 mm (L x W x H). |
| Weight | Product: 4.0 kg; Package: 5.0 kg. |
