Input
HDMI · DVI · VGA · AV · USB

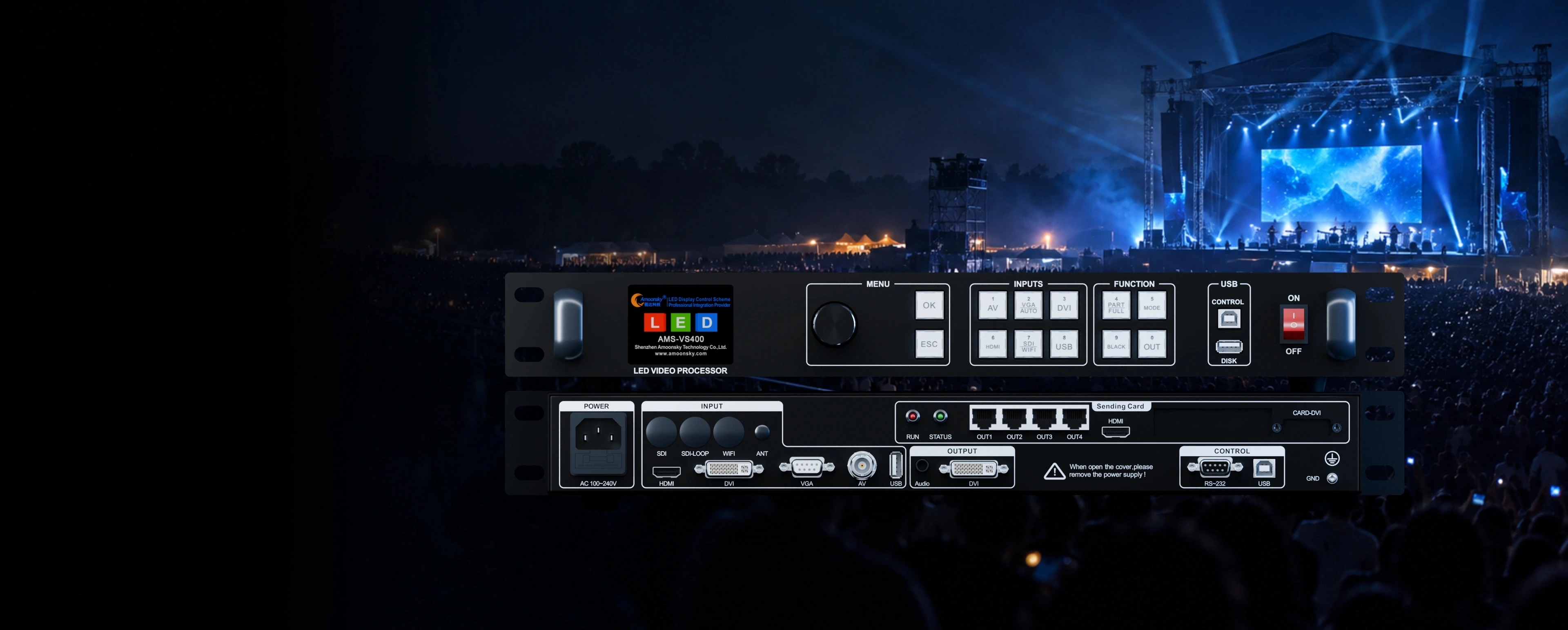

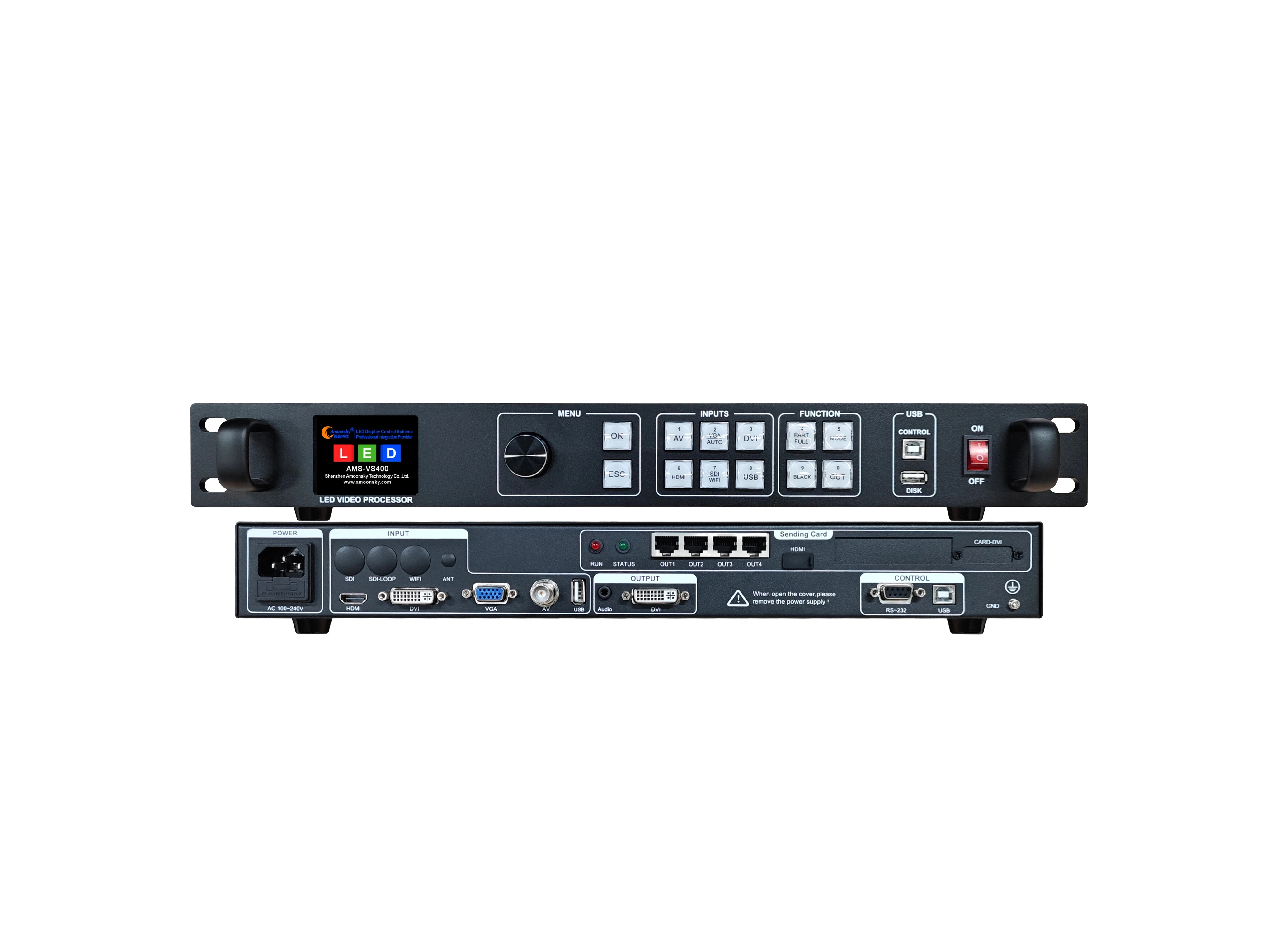

LED Display Controller VS400
LED Display Controller VS400
LED Display Controller
VS400
All-In-OneUSB Player·Controller·Processor
Built-In LED Sending CardNovastar·Linsn·Huidu·Amoonsky
Output
VS400: 4× RJ45
Expansion Features
SDI Input & LoopWi-Fi Mirroring
Control Methods
IR RemoteUpper Computer Control
Mstar
Core Engine
Powered By Taiwan Mstar
Industrial-Grade Video Processing SoC

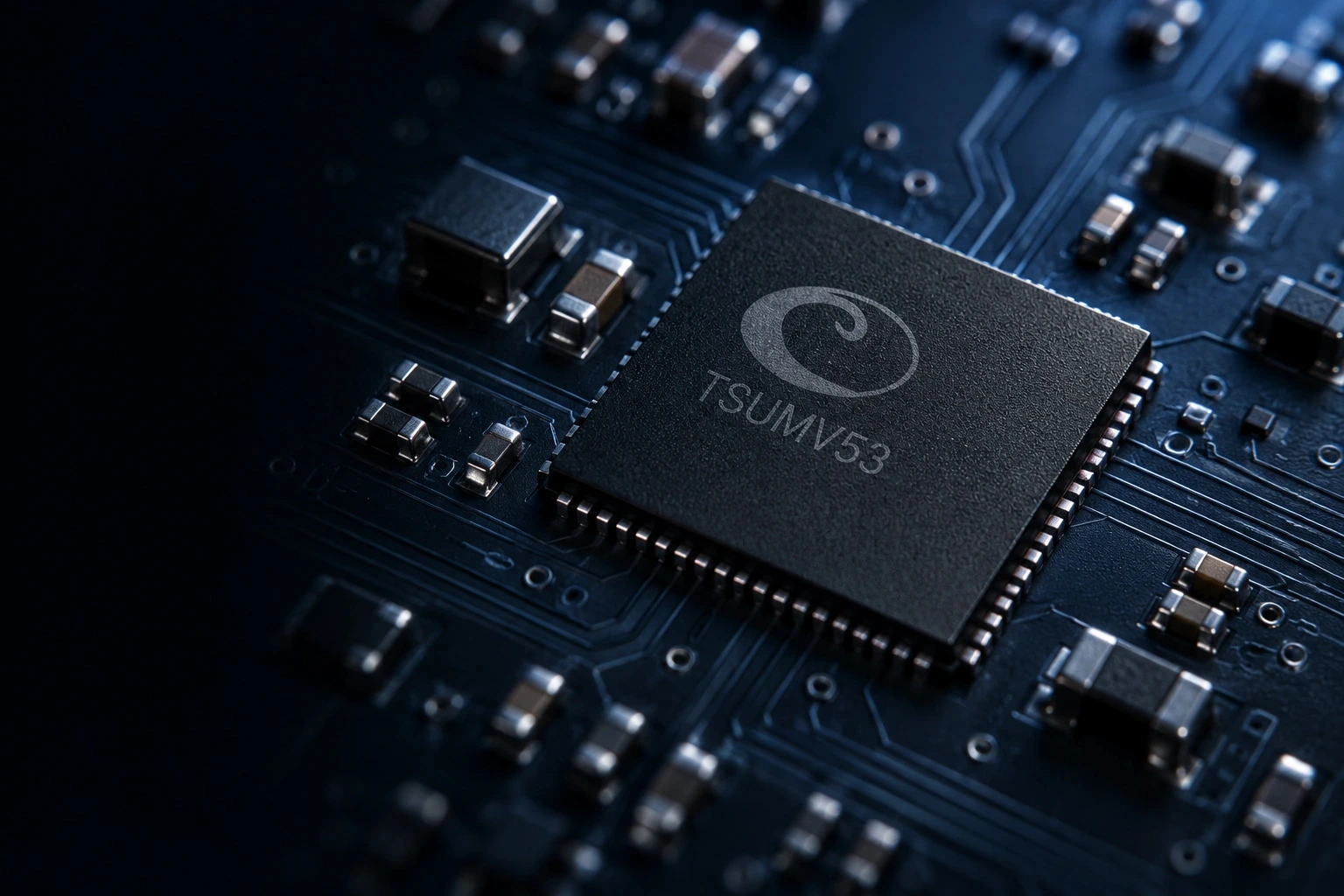

This series is powered by the high-performance TSUMV53 chip, utilizing a pure hardware SoC video processing architecture. At its core, it integrates the MediaTek ACE-6 broadcast-grade color engine, delivering exceptional visual fidelity and image clarity for Full HD and large-scale display systems.
By embedding high-speed DRAM directly within the chip package, the data exchange path is drastically shortened. This architectural design significantly reduces signal processing latency while maximizing the motherboard's electromagnetic interference (EMI) immunity. Whether deployed in high-interference stage rental environments or mission-critical command centers requiring 24/7 high-load operation, this engine guarantees rock-solid, round-the-clock stability and flawless performance.
Part | Full Display Switching
Full Screen For Impact · Part Screen For Precision

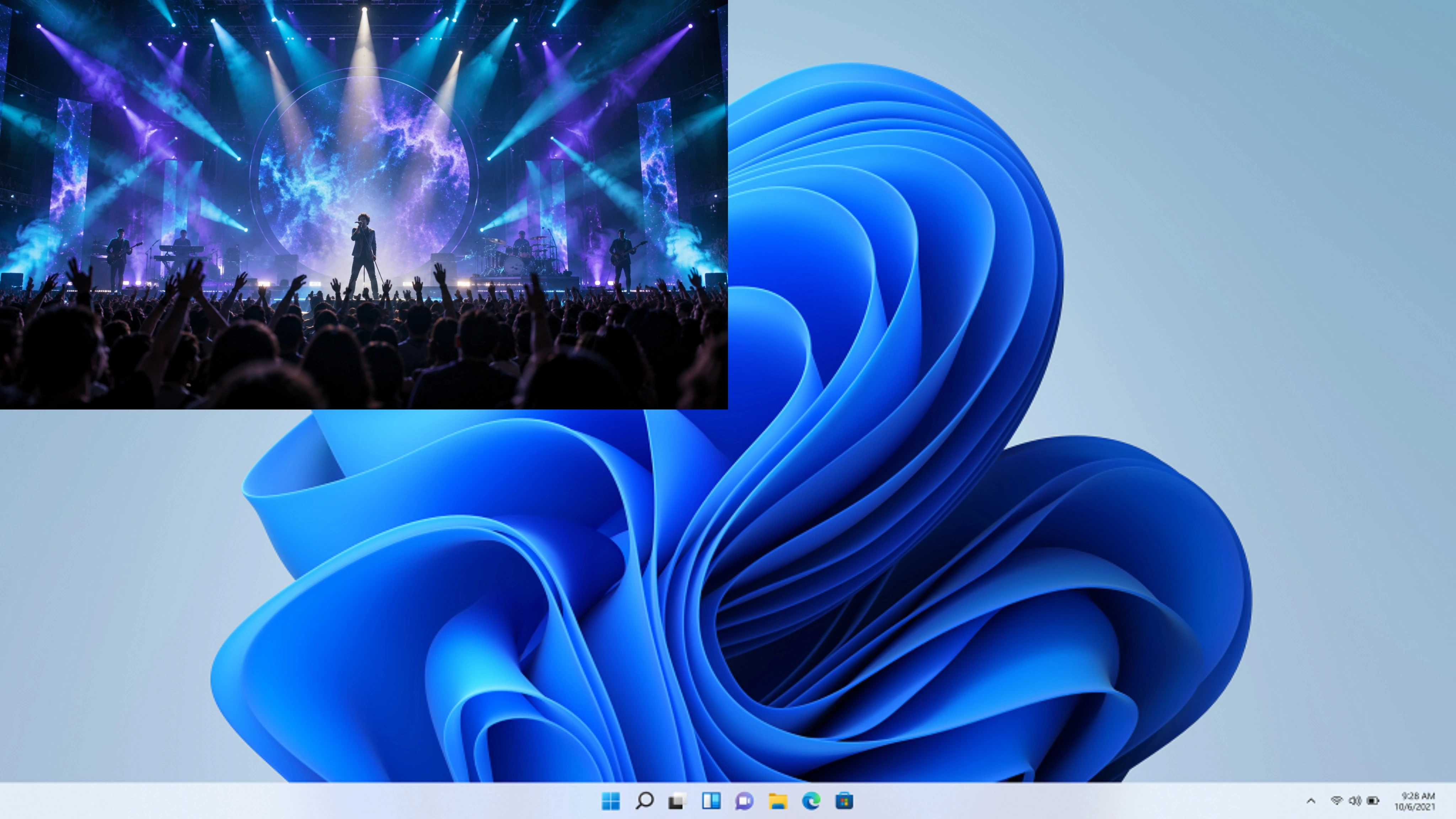

PART Selected. The Upper-Left Quarter Fills The LED Display.
Input & Control Expansion
Optional Wi-Fi And SDI Expansion · Remote Control
Input Expansion
Extended Wireless Projection
Instant Sharing · Dynamic Interaction
Input Expansion
Extended SDI Input & Loop
Broadcast-Grade · 3G SDI
Control Expansion
Extended Remote Control
2.4G RF Remote · Control Freely
Motion Compensation Algorithm (MEMC)
Smooth Motion, No Blur

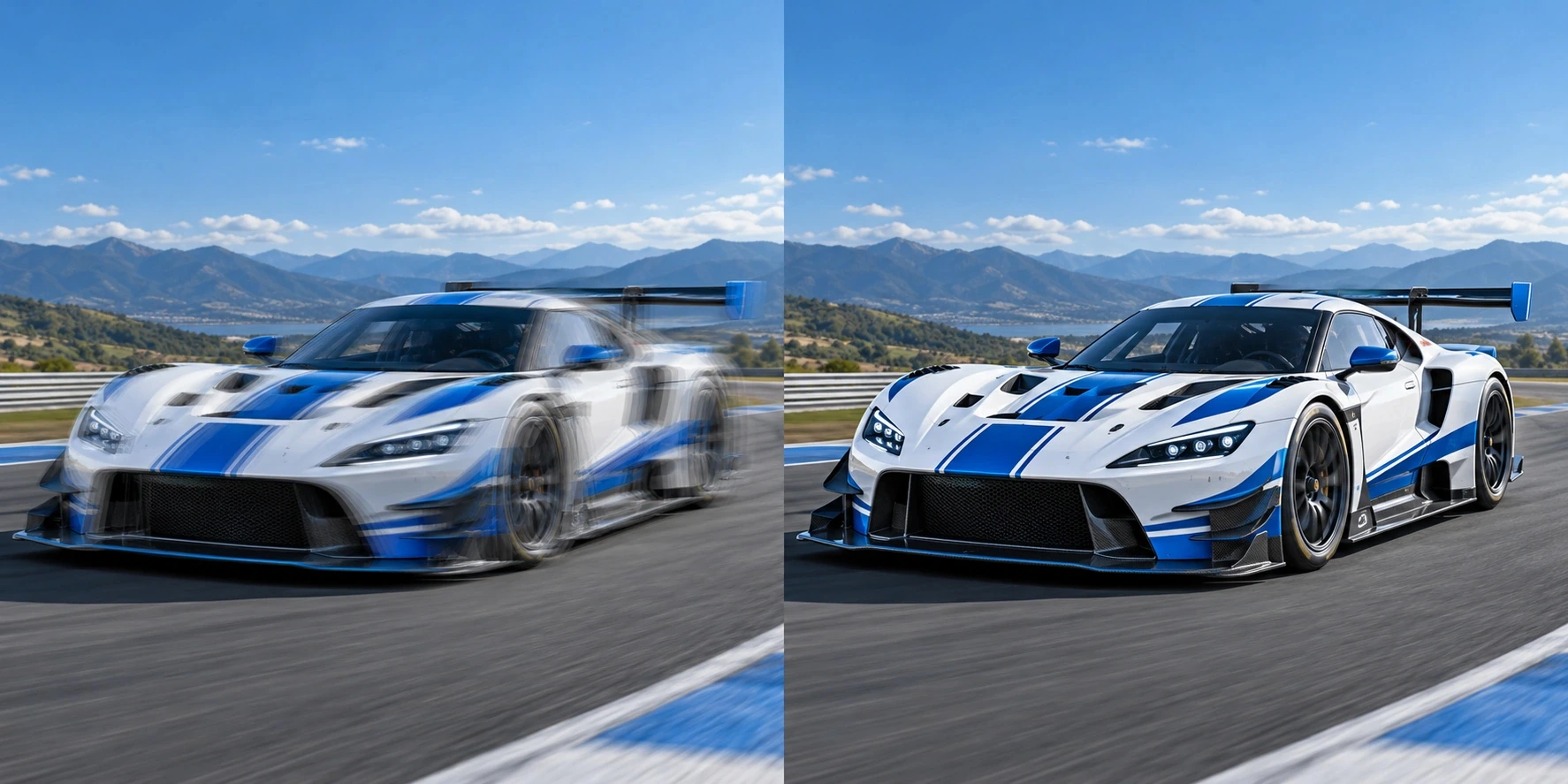

Motion Clarity Demonstration
The Motion Compensation Algorithm uses motion estimation and motion compensation (MEMC) to analyze motion vectors between adjacent frames and perform real-time compensation. It eliminates blur, judder, and artifacts in fast-moving scenes, delivering smooth, natural, and clear motion.
Built-in Sending Card
MSD600-1 · Linsn Core Board
VS400
MSD600-1 or Linsn Core Board
Select the corresponding receiving card based on your actual needs, and confirm with our sales team before shipment.
Timer Manager
Automatic Scene Switching On Schedule
18:30–19:00
Promotional Video
USB Player
Unique Brightness Adjustment Technology
Dim The Screen, Preserve The Detail.
Conventional Display Dimming Often Compresses The Dynamic Range And Degrades Grayscale Levels,
Causing Shadow Details To Disappear And Colors To Unnaturally Shift At Lower Brightness.
Powered By A Proprietary Built-In Brightness Algorithm, The VS Series Maintains Full Grayscale Retention, Rich Image Layering, And Exact Color Fidelity Across All Brightness Levels. By Preserving True-To-Life Depth Without Sacrificing Color Accuracy, It Delivers Crisp, Natural, And Faithful Visuals Even In Low-Light Environments.
More Features
All-Channel
Seamless Switching
10 Mode Preset
And Recall
Partial / Full
Screen Switching

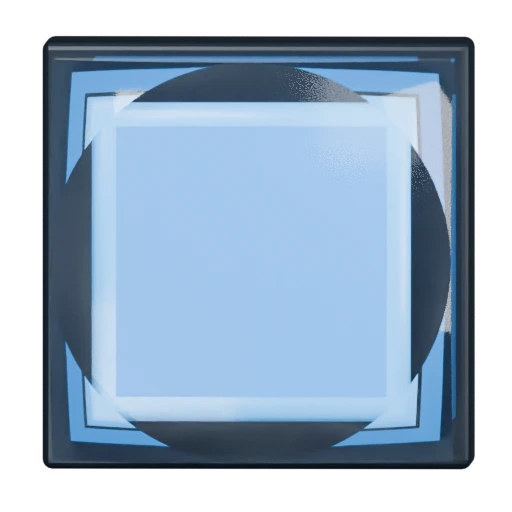

Panel Key Lock
Signal Automatic
Detection
One Key Black
Or Freeze Screen
Audio Synchronous
Output
Real-Time
Storage Technology
For More Detailed Information, Please Contact Us

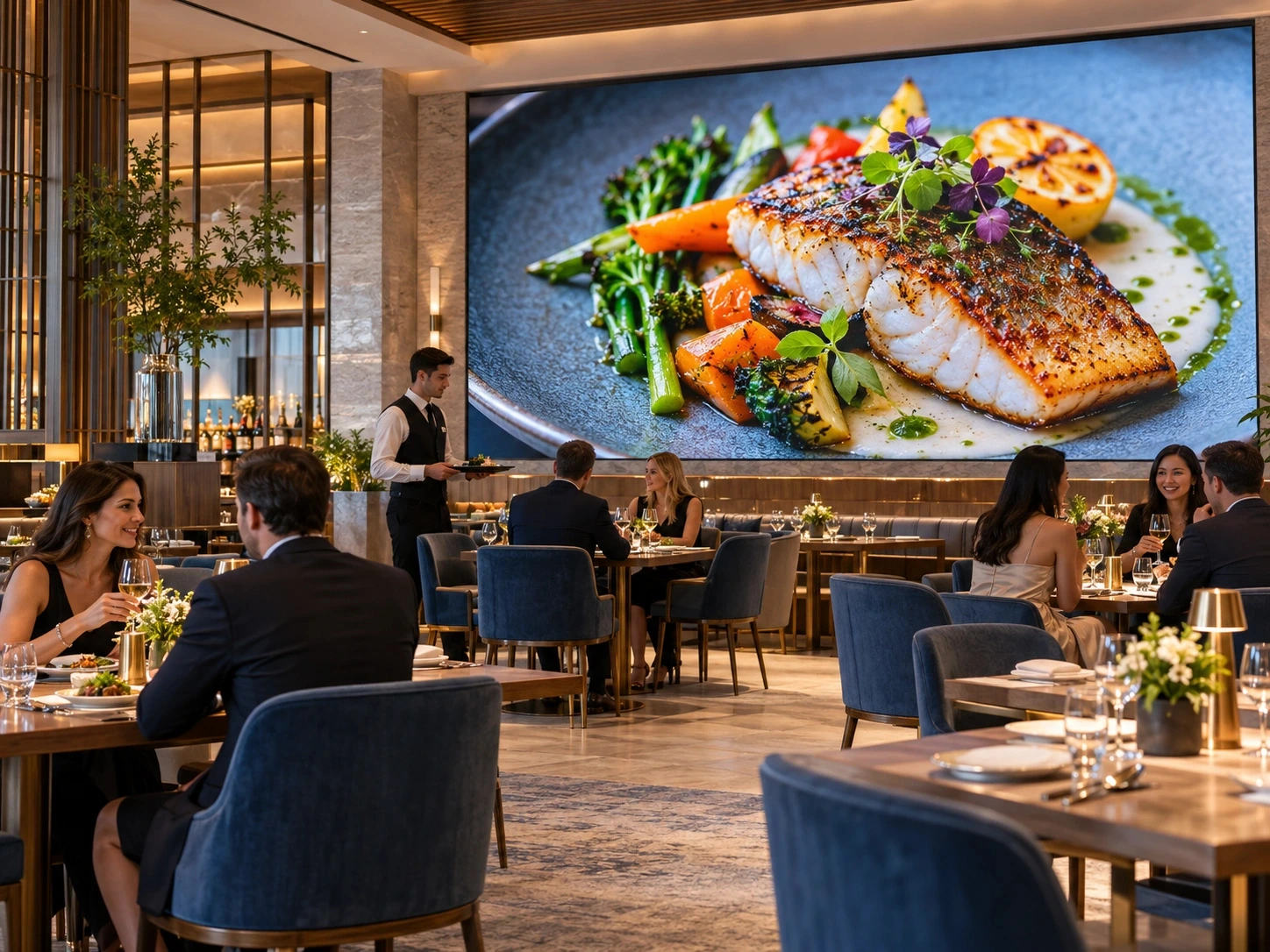

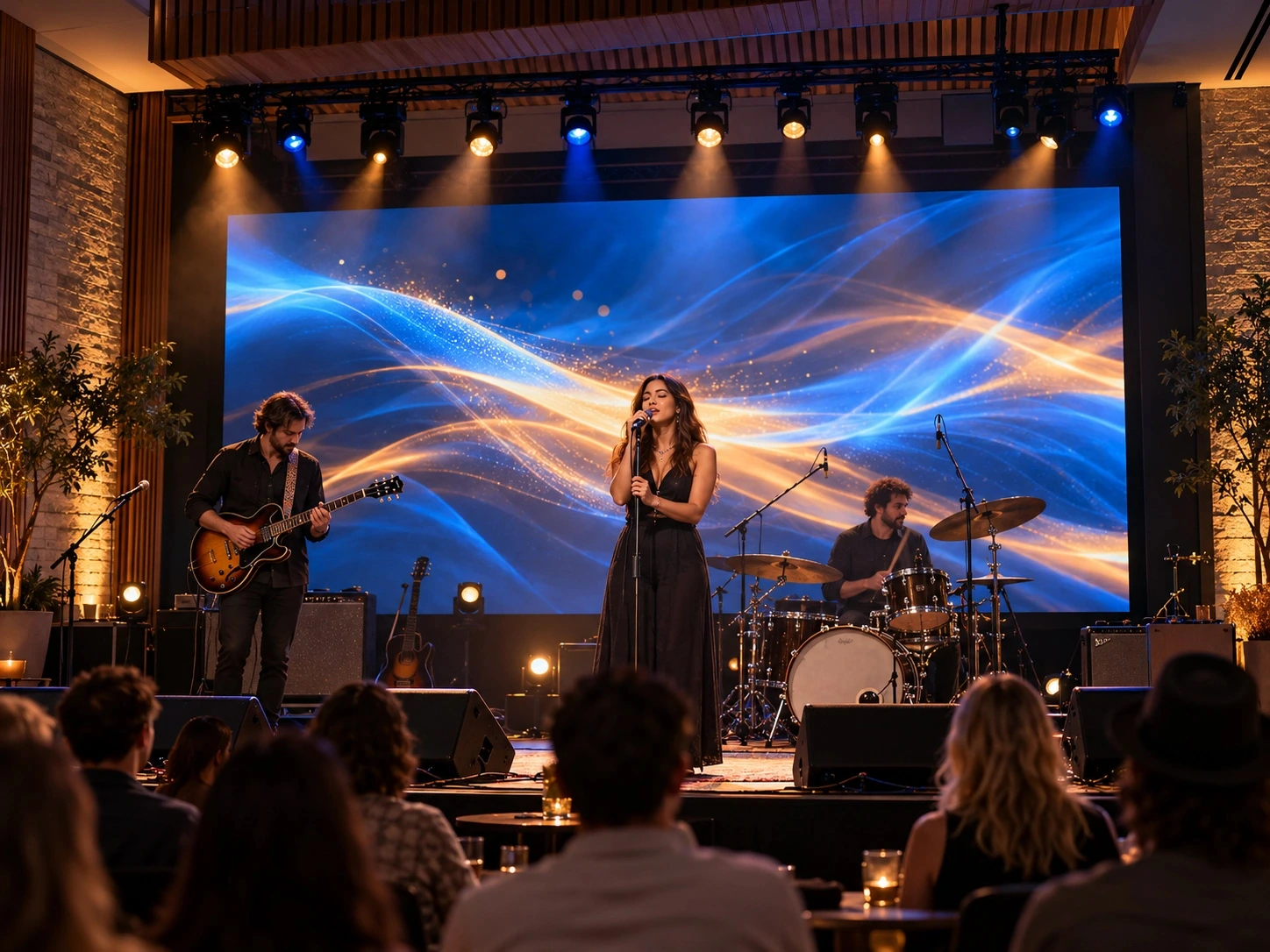

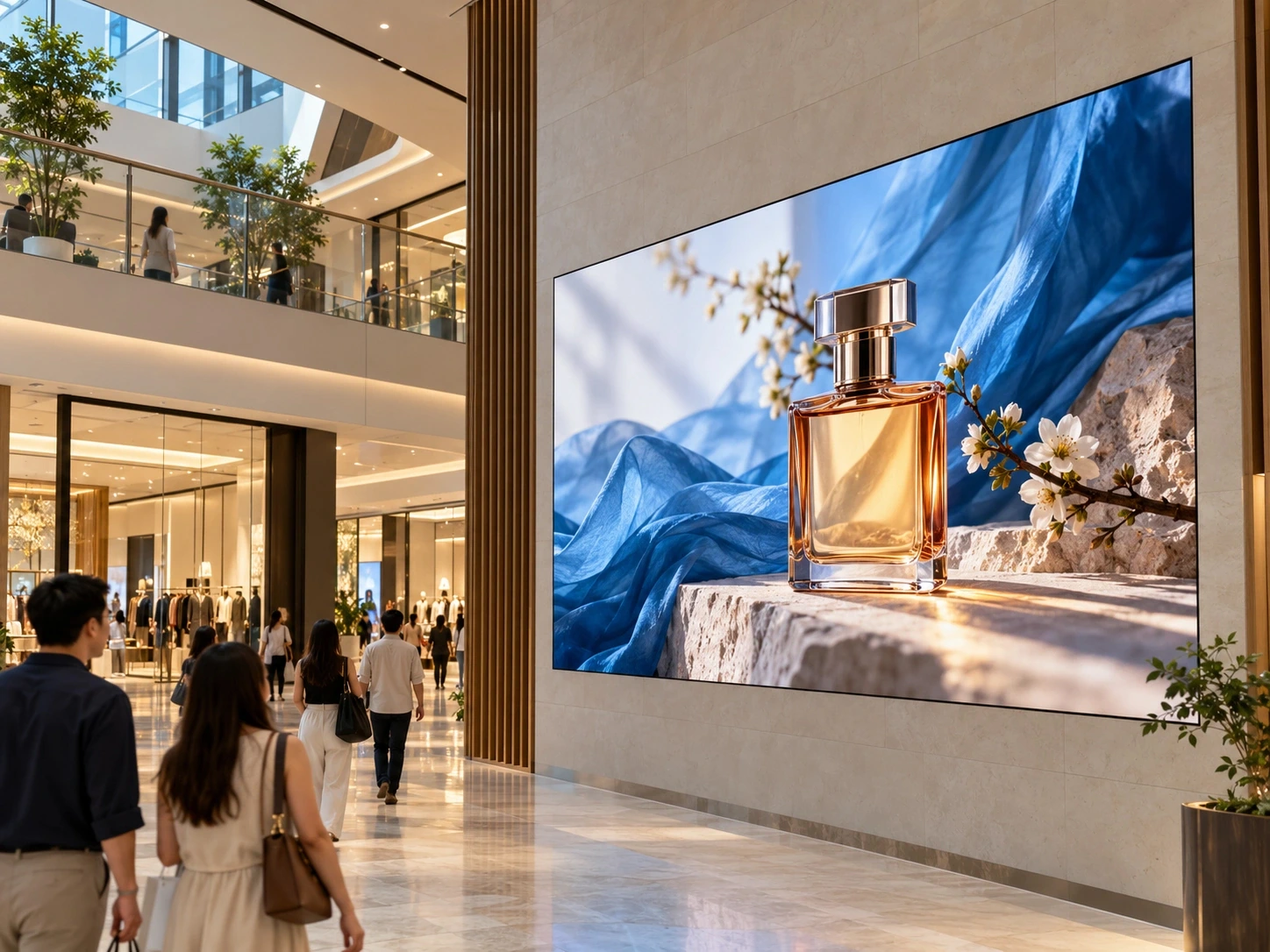

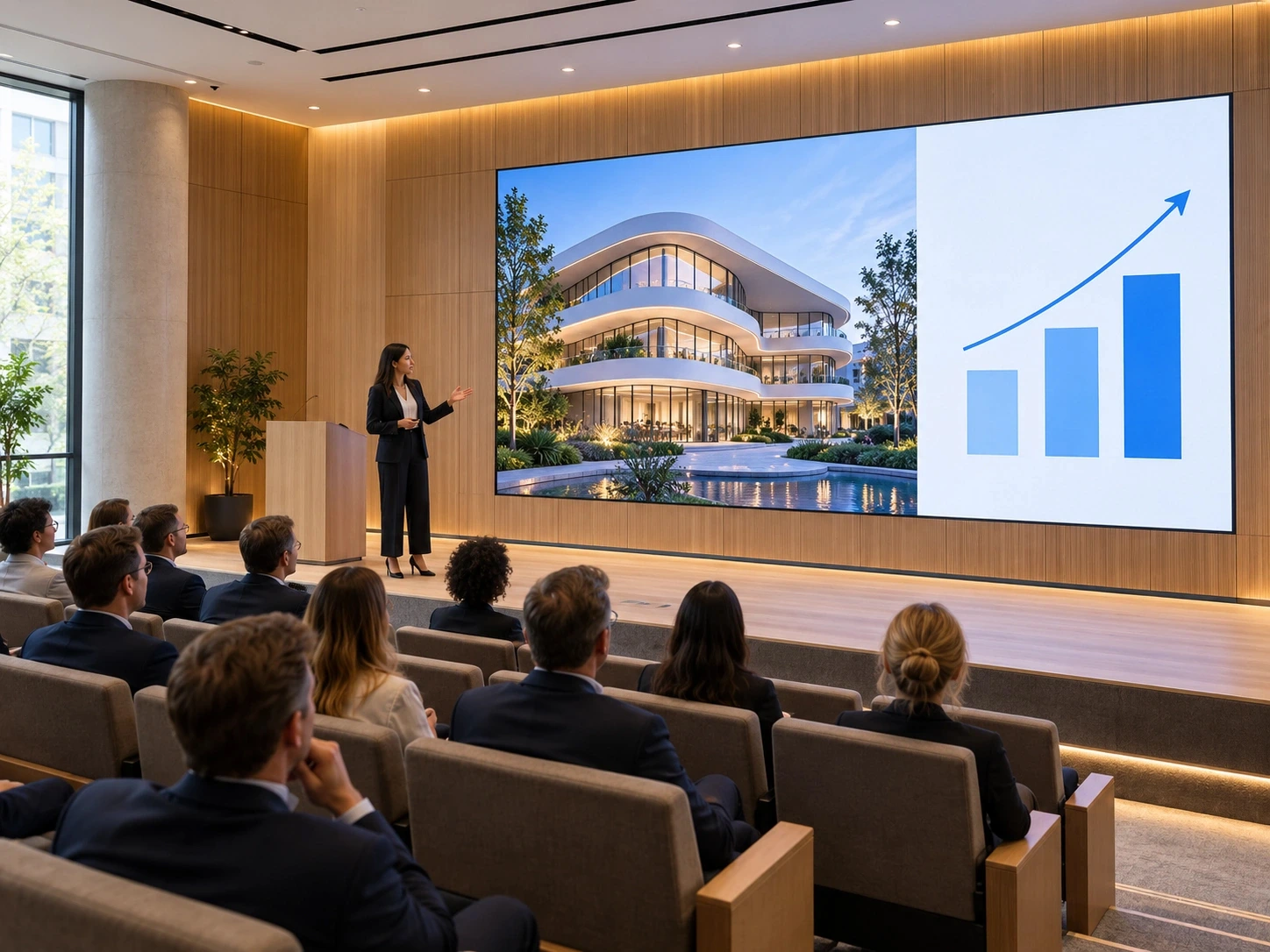

Applications
More Services
More Than A Supplier
Your Trusted Long-Term Partner
Customization
OEM ODM IDM
Appearance
Functions
Interfaces
Branding
YOUR LOGO
Customization
OEM, ODM, And IDM Services Available. Customize Appearance, Functions, Interfaces, And Branding To Meet Your Specific Needs.
Multi-Language Support
Multi-Language Selection
Free Solution Design
24/7Technical
Response
Response
Selection
Deployment
Full Technical Support
Free Solution Design, 24/7 Technical Response, And End-To-End Support From Selection To Deployment.
| Port Specifications | |
| Standard Video Inputs | 1 × HDMI; 1 × DVI; 1 × VGA; 1 × AV / CVBS; 1 × USB. |
| Optional Input Expansion | Optional Wi‑Fi Input, IEEE 802.11n, On AMS‑VS400W; Optional SDI Input And Loop On AMS‑VS400S. |
| Video And LED Outputs | 1 × DVI Programming Output; 4 × RJ45 Gigabit Ethernet Ports; Up To 650,000 Pixels Per Port; Ethernet Port Redundancy Supported. Integrated Sending Card Options: Novastar MSD600 / Linsn TS902 / Huidu T902. |
| USB Ports | 1 × USB‑A For Picture And Video Playback; 1 × USB‑B For Sending Card Parameter Configuration. |
| Audio Output | 1 Channel Audio Output; Synchronized Audio And Video Output. |
| Performance | |
| Output Resolutions | 1024 × 768@60Hz; 1280 × 720@60Hz; 1280 × 1024@60Hz; 1600 × 1200@60Hz; 1920 × 1080@60Hz; 1920 × 1200@60Hz; 1920 × 1280@60Hz. 3840 × 640@60Hz; Custom Resolution Supported. |
| Video Processing And Presets | Analog Sampling: 12 Bit Per Color, 13.5 MHz For Video And 170 MHz For RGB. Digital Pixel Data: 8, 10 Or 12 Bit Per Channel. 10 User Presets; Enable Preset Save And Recall In The System Menu. |
| General Specifications | |
| Power Supply | Internal Power Supply; 100–240 VAC, 50–60 Hz; All Rated Voltages Are On Average ±10%. |
| Operating Environment | Temperature: 0 To +50 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| Storage Environment | Temperature: −40 To +70 °C; Relative Humidity: 10% To 90%, Non‑Condensing. |
| MTBF And Warranty | MTBF: 30,000 Hours; Warranty: 1 Year. |
| Model And Packing Specifications | |
| Model And Optional Variants | AMS‑VS400: Standard Model; AMS‑VS400W: Extended Wireless Projection; AMS‑VS400S: Extended SDI Input And Loop. |
| Dimensions, L × W × H | Machine: 485 × 330 × 65 mm; Packing: 535 × 435 × 120 mm. |
| Product And Package Weight | Product: 5.0 kg; Package: 6.0 kg. |
