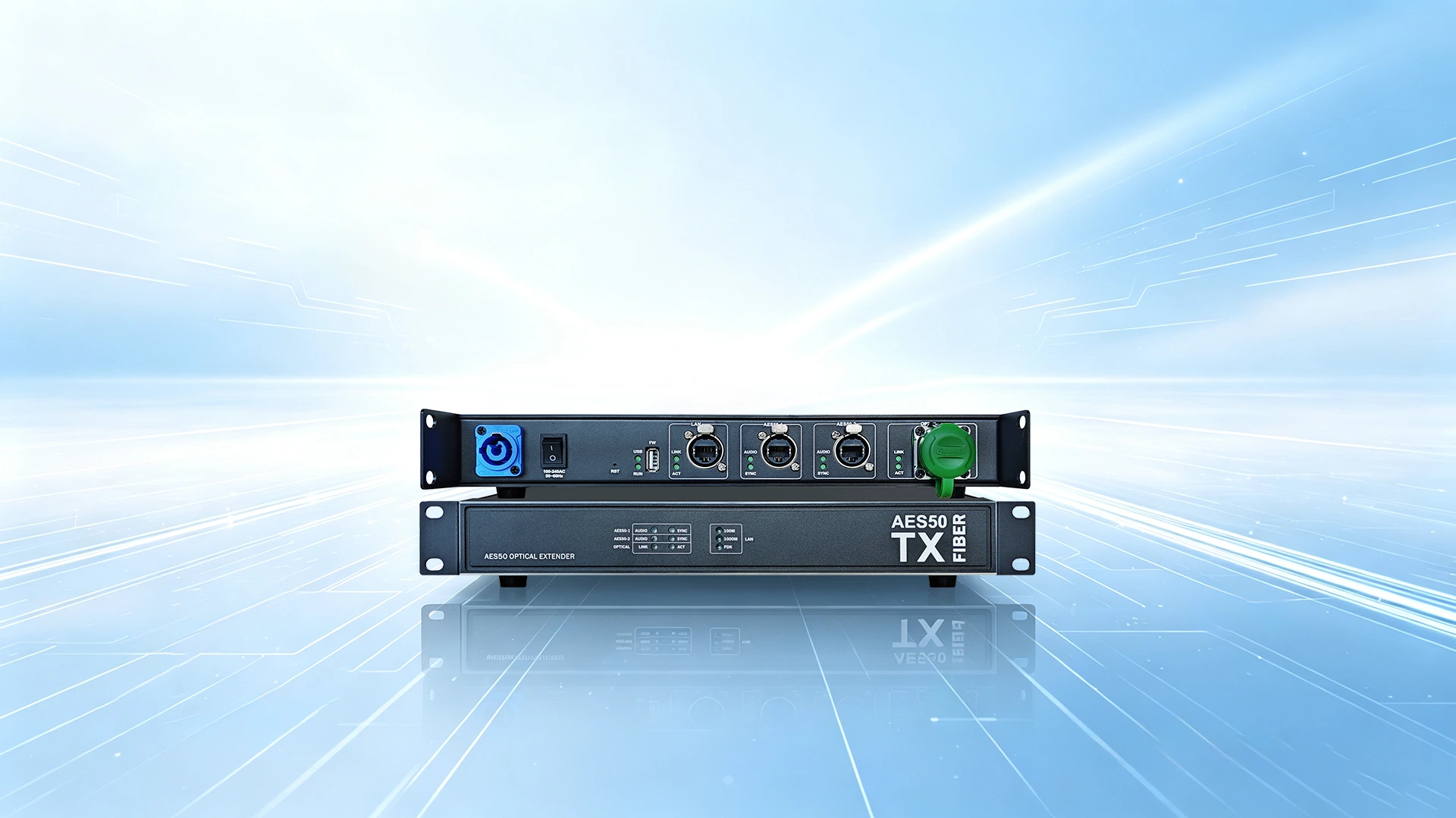

Dual Port Audio Fiber Optic Extender
Zero latency.
10KM Fiber Link.
AES50 is industrial-grade AES50 photoelectric transceiver kit, paired TX Transmitter & RX Receiver. Convert AES50 electrical audio signal to single-mode optical signal, break 80m cable transmission limit, ideal for theaters, outdoor festivals and large-scale live events with Midas & Behringer digital mixing consoles.
Long-distance
lossless audio.
AES50 adopts TX / RX paired design to realize bidirectional conversion between AES50 digital electrical signal and LC single-mode optical signal. Built-in advanced transmission equalization algorithm ensures full uncompressed audio data without delay. Aviation-grade etherCON connectors provide anti-pressure, anti-stretch, waterproof and dustproof performance for harsh live performance environment.
Core Advantages
- 1. Zero latency uncompressed AES50 audio transmission
- 2. Up to 10km transmission via single-mode LC fiber
- 3. Strong anti-electromagnetic interference, suitable for stage environment
- 4. Matched TX transmitter + RX receiver set
- 5. Compatible with Midas / Behringer AES50 mixing consoles
Application Scenarios
Large outdoor live concerts & music festivals
Theater, auditorium, church fixed audio system
TV station recording studio & broadcast audio transmission
Multi-room audio distribution system
Long-distance separation of console and stage box
AES50 Fiber Optic Extender

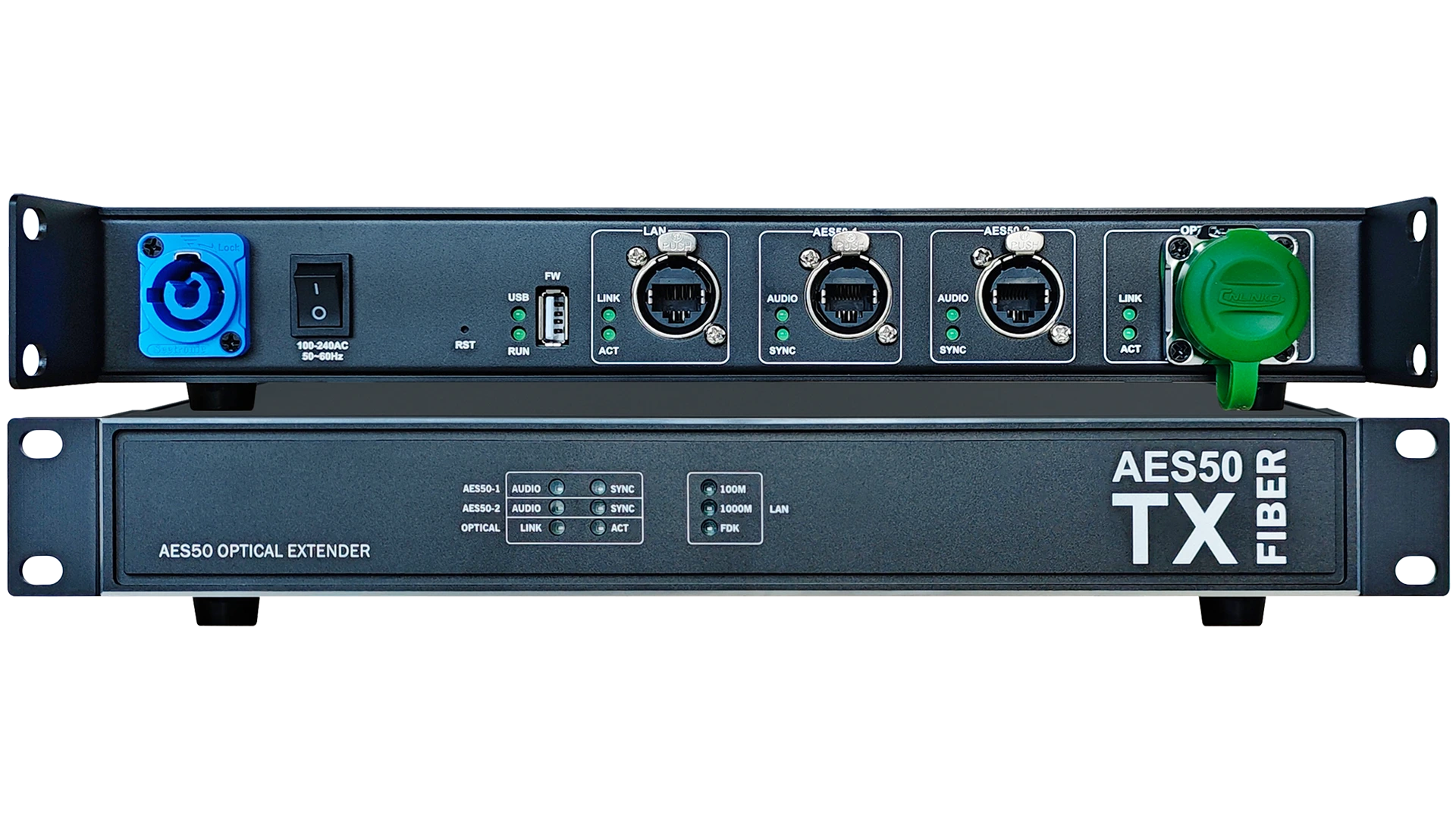

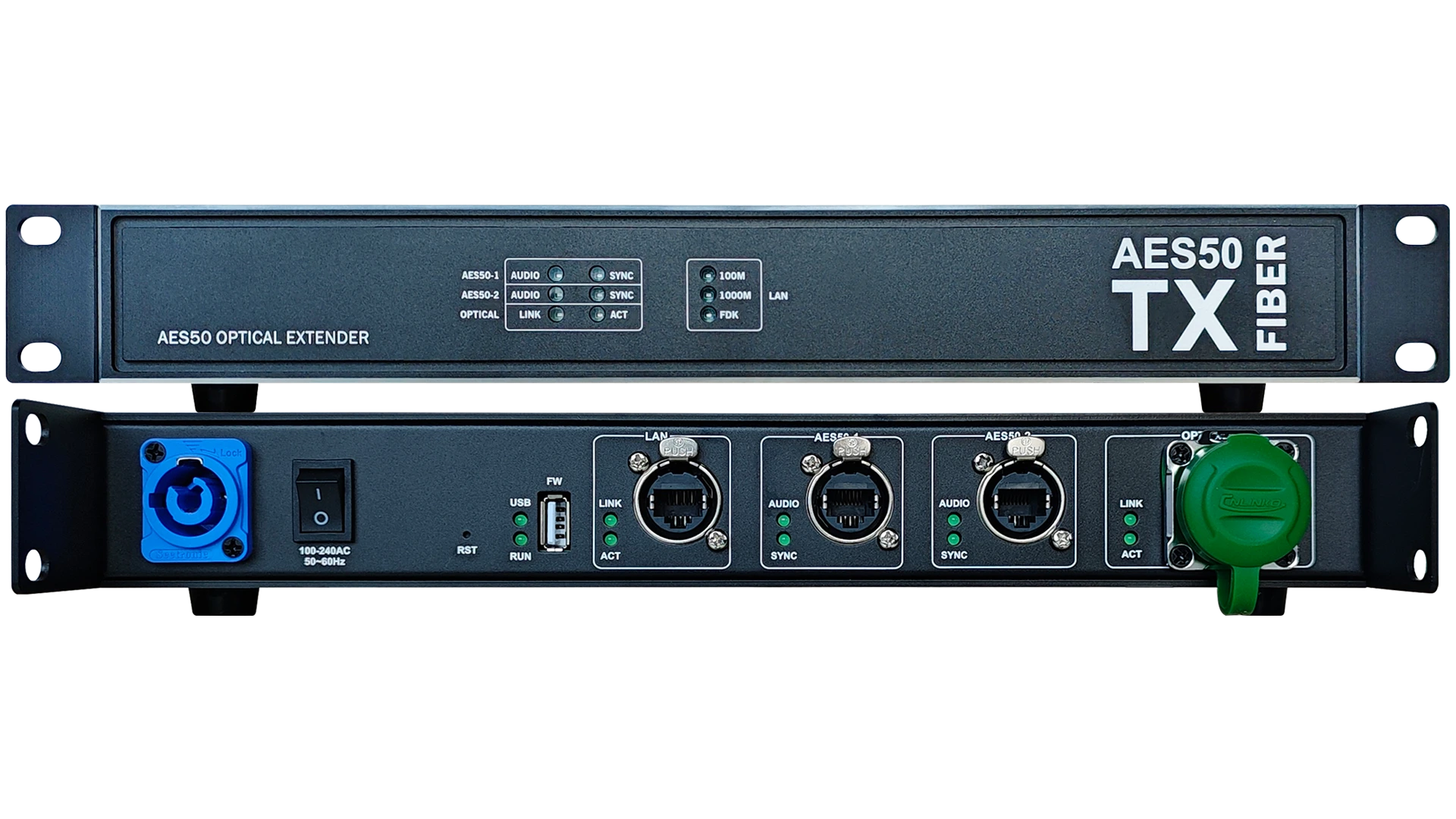

Clear Port Layout
& Status Indicators
Standardized interface definition, easy on-site wiring and troubleshooting. Each indicator light corresponds to working status, convenient for engineers to quickly judge signal link status.

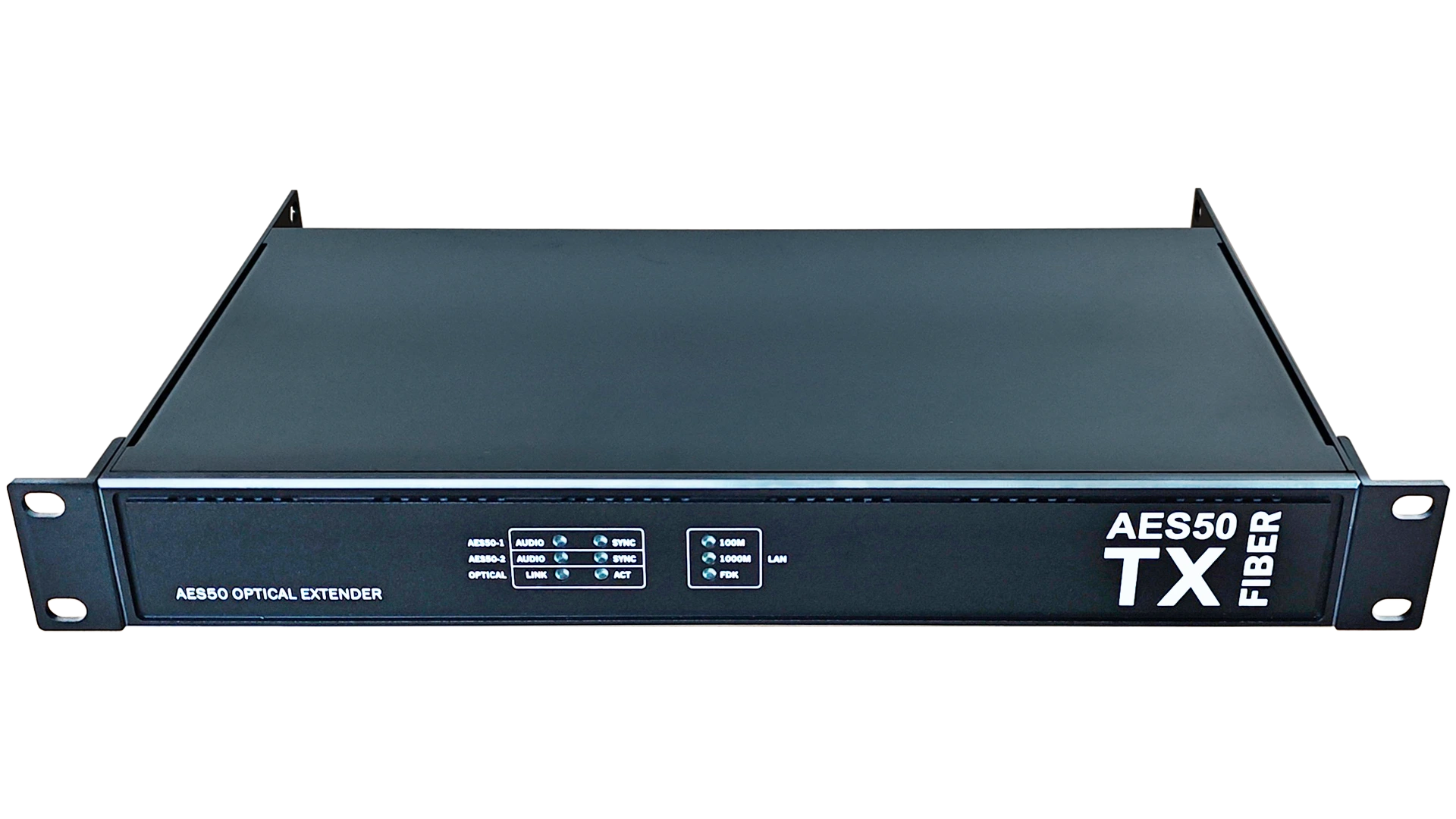

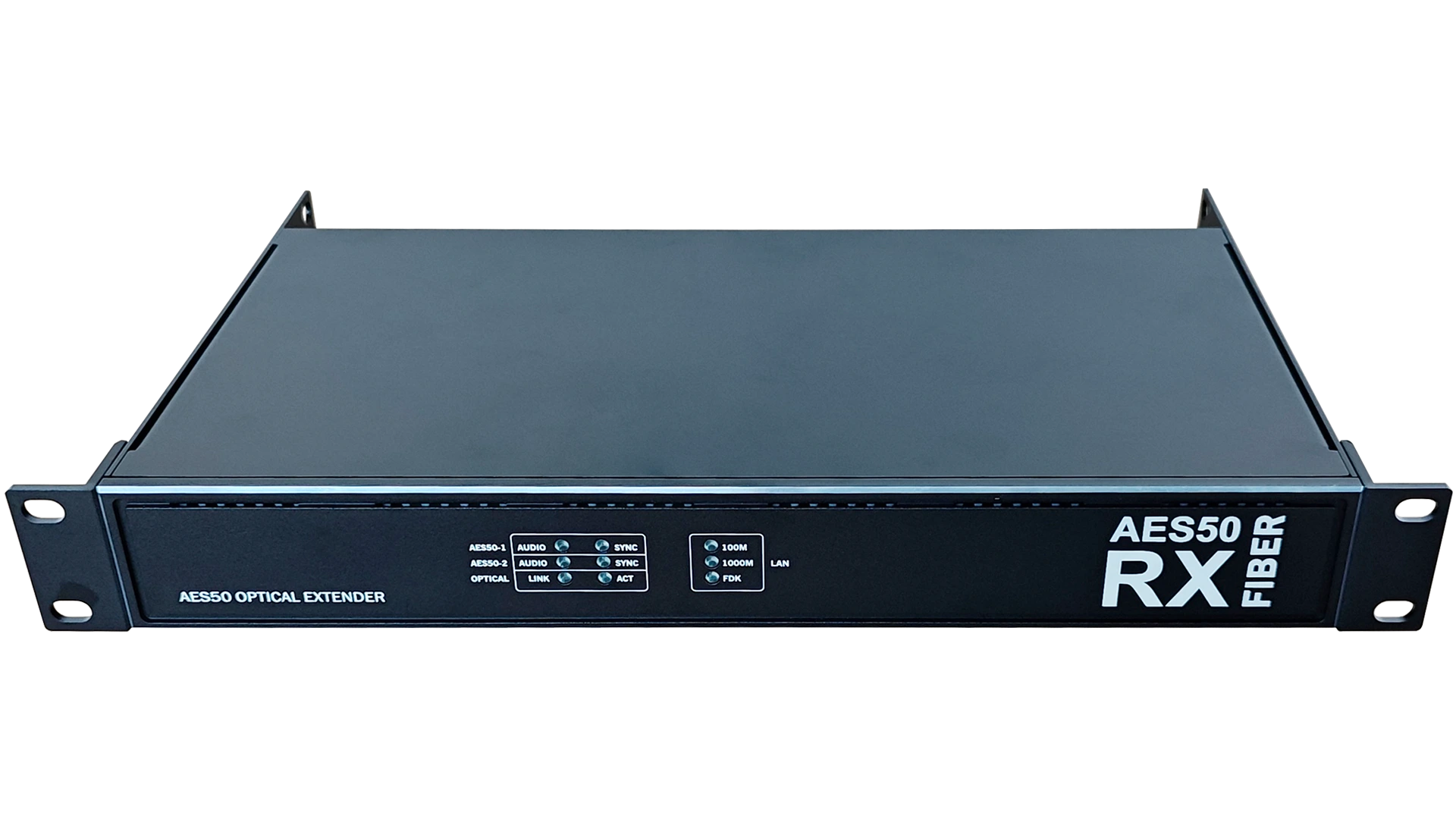

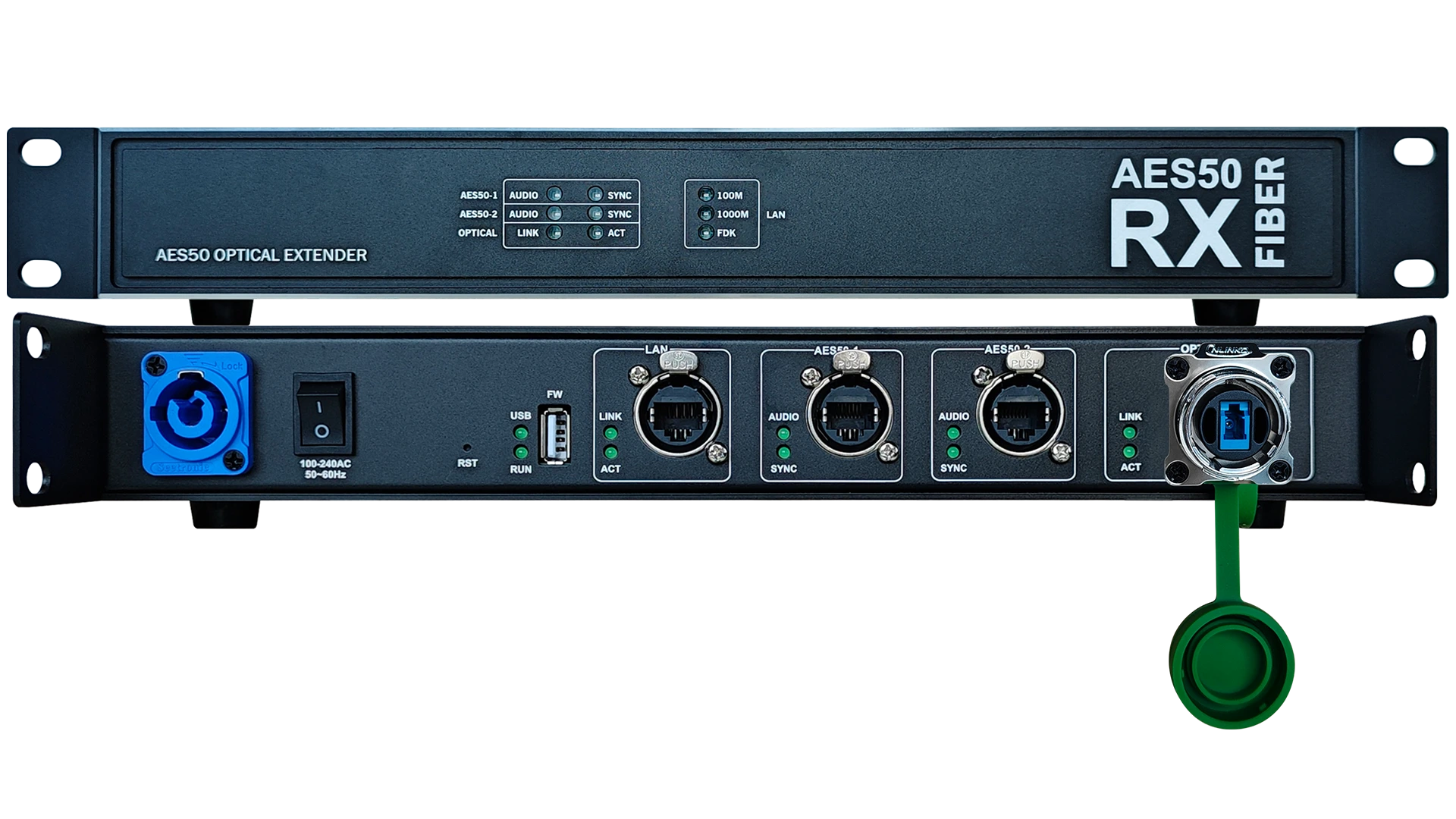

Front Panel Indicators (Power supply status/Optical fiber link detection/Digital audio signal lock)
| 1 -- Status Indicator | |
| AES50-1 / AES50-2 | Audio Light ON -- Communication Normal |
| Sync Light ON -- AES50 Protocol Connected Normal | |
| OPTICAL | Link Light ON -- Optic Fiber Communication Normal |
| Act Light ON -- Data Transmission&Receiving Are Normal | |
| 2 -- LAN Indicator | |
| LAN | 100M Light On -- Network Transmission Of 100Mbps |
| 1000M Light On -- Network Transmission Of 1Gbps | |
| FDK Light On -- Full Duplex | |

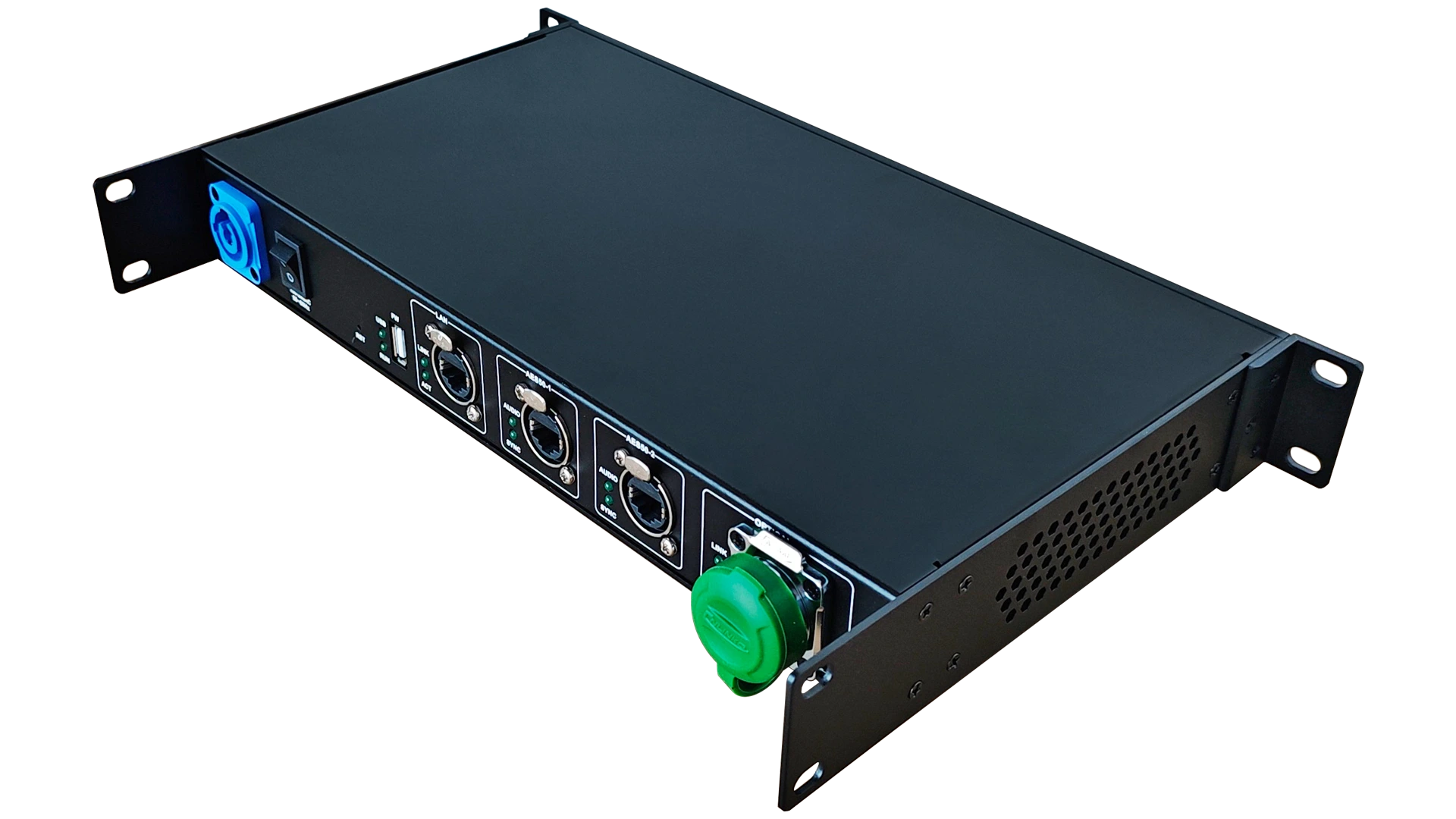

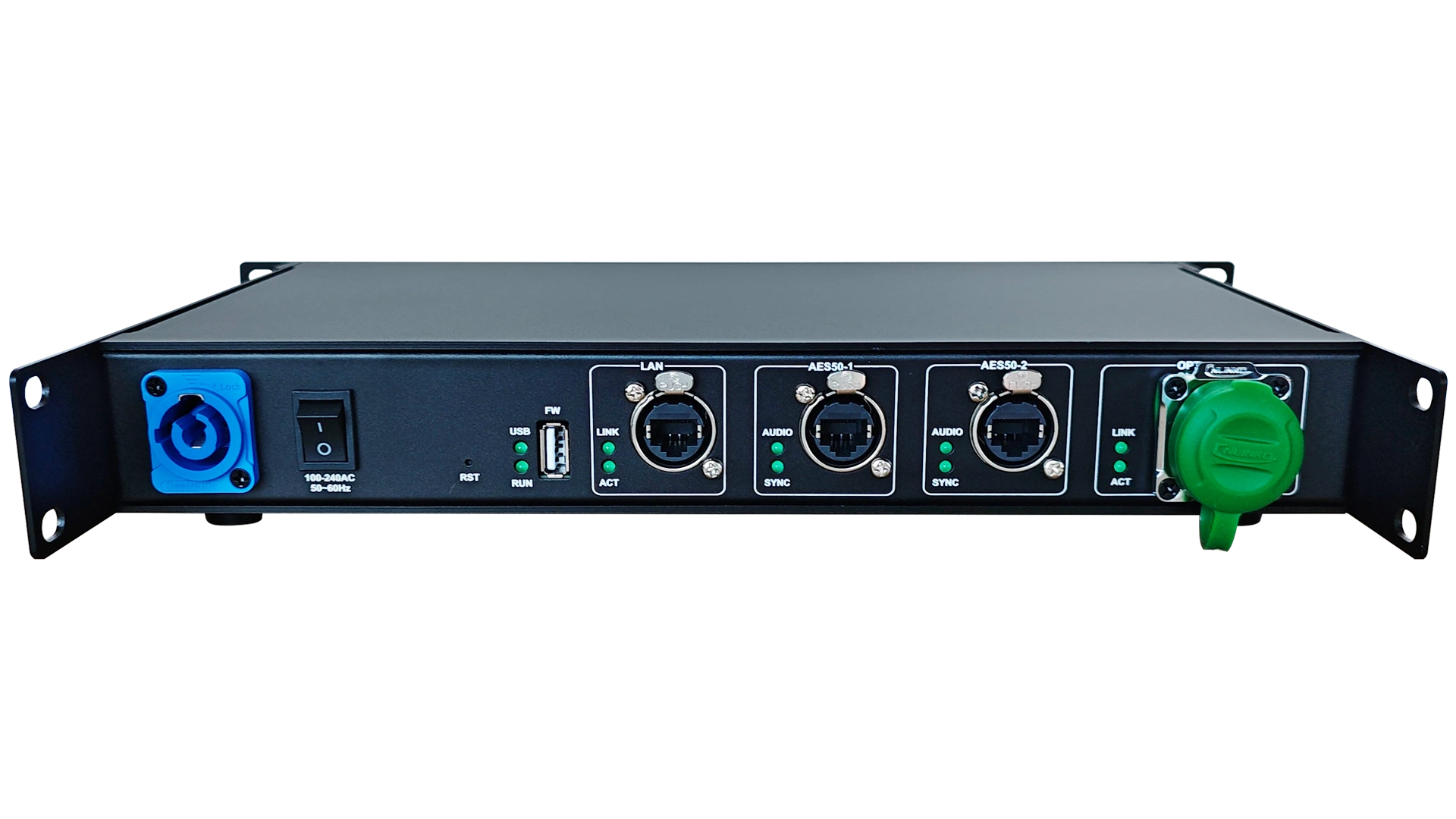

Rear Panel Interfaces (etherCON signal port/LC single-mode optical interface/Power input socket)
| 3 -- Power Socket | NL4FC Aviation Connector. Input 100-240V AC 50/60Hz |
| 4 -- Power Switch | Connect The Power Cable Can Turn On or Turn Off The Device |
| 5 -- RST Button | Press The Button Will To Restore The Device To Factory Settings |
| 6 -- FW · Upgrade interface | USB Port -- Update The Device Software By USB Disk |
| USB Light On -- The Device Identification The USB Disk | |
| RUN Light -- The Indicator Light Is Flicker, Indicating That The DeviceIs Running Normal | |
| 7 -- LAN Port | RJ45 Port, Can Connect To Lighting Console Series Products OrNetwork Transmission Equipment |
| The LED Indicator Represents The Operating Status Of The Channel | |
| 89 -- AES50 Port | 8 & 9 Representing Two Different Channels Respectively |
| The LED Indicator Represents The Operating Status Of The Channel | |
| 10 -- Fiber Optic Interface | LC Port, Single Mode |
| Transmission Max Distance 10Km | |
| The LED Indicator Represents The Channel Operating Status |
Standard TX-RX
Point-to-Point Link

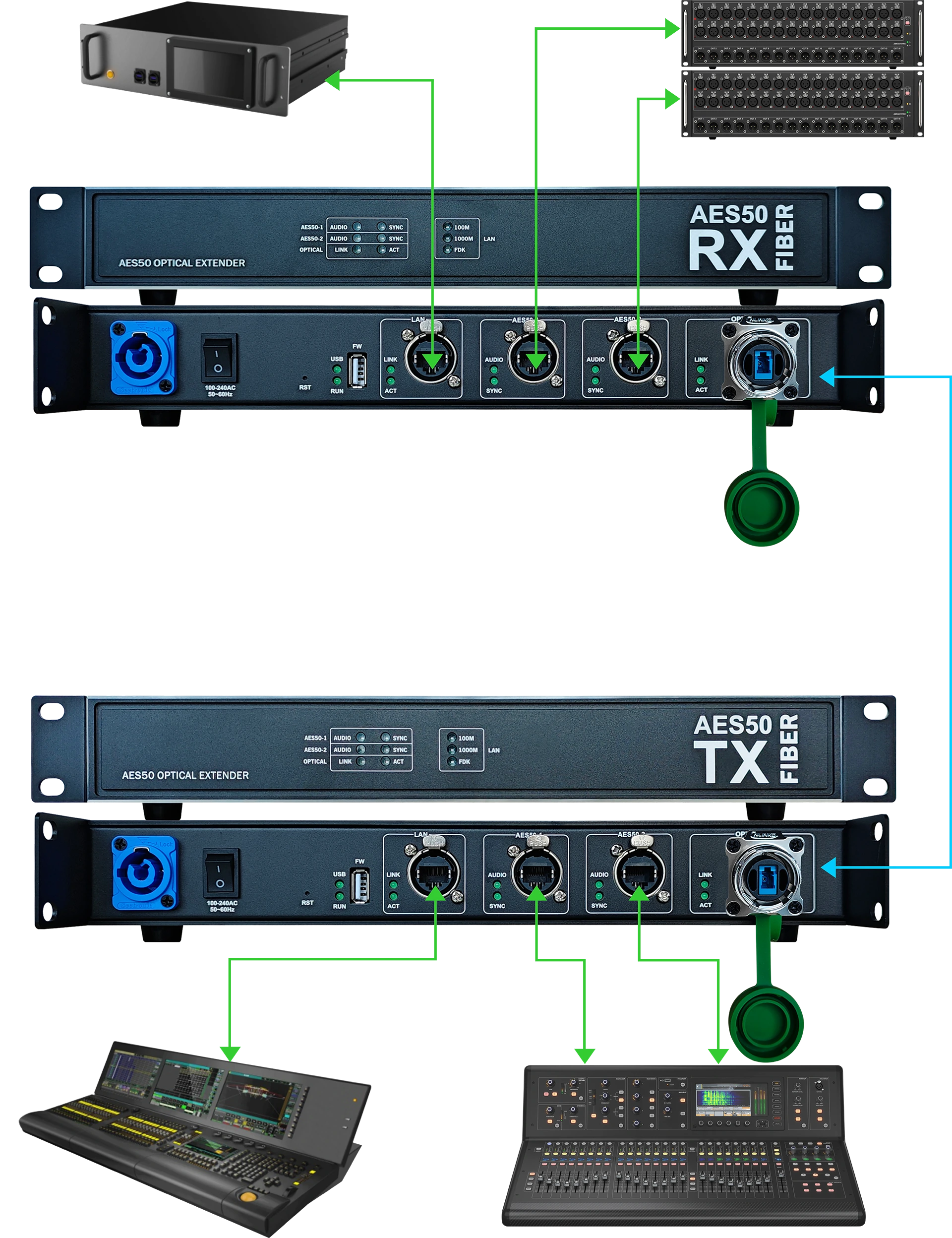

Adopt point-to-point paired working mode. Connect mixing console to TX unit via AES50 cable, transmit through optical fiber, restore AES50 signal at RX terminal to connect stage box or remote equipment.
Typical Connection Flow
- Digital Mixer → AES50 Cable → TX Transmitter
- TX Optical Port ↔ Single Mode LC Fiber ↔ RX Optical Port
- RX Receiver → AES50 Cable → Stage Box
- Support bidirectional audio transmission
| Port Specifications | |
| LAN Port | Interface Type: RJ45, Quantity: 2; Support 10M Bps, 100M Bps, 1.0GBps; Recommended Net Cable Length ≤ 80M; |
| AES50 Port | Interface Type: RJ45, Quantity: 4; Supports Sampling Rate Of 44.1K Hz, 48K Hz, 96K Hz; Recommended Net Cable Length ≤ 80M; |
| Optical Port | LC Port, Single Mode; Transmission Distance ≤ 10Km; |
| USB Port | Interface Type: USB‑A, Quantity: 1, Upgrade Software ; |
| Power Socket | NL4FC Aviation Connector, Quantity: 2, Input 100‑240V AC 50/60Hz; |
| RST Button | Press The Button Will To Restore The Device To Factory Settings; |
| General Specifications | |
| Power Supply | Built‑in, 100 ~ 240V AC, 50 ~ 60Hz; |
| Temperature | Storage : T: -40˚C ~ +80 ˚C ､ H: 10% ~ 90%, Non‑condensing; Working: T: 0 ˚C ~ +60 ˚C ､ H: 10% ~ 90%, Non‑condensing; |
| Machine Size | 375mm (Length) x 220 mm (Width) x 55mm (Height) |
| Packing Size | 475mm (Length) x 375 mm (Width) x 235mm (Height) |
| Product Weight | Gross Weight : 7Kg ; |
| Package Weight | Volume Weight: 8.5Kg ; |
| Warranty | 1 Year; Note: All Rated Voltages Are On Average ± 10%; |
| Packing List | |
| Standard | Power Cable * 2, Mounting Bracket * 2; Certificate * 1;Warranty Card * 1; |
| Model | AES50 |
| Description | Standard Model |
| P/N | PN202603005 |
